5.7L V-8

The 5.7L V-8 engine uses 8 dedicated, and individually fired coil (1) for each pair of spark plugs.

Fig 1: Identifying Coil (5.7L)

Courtesy of DAIMLERCHRYSLER CORP.

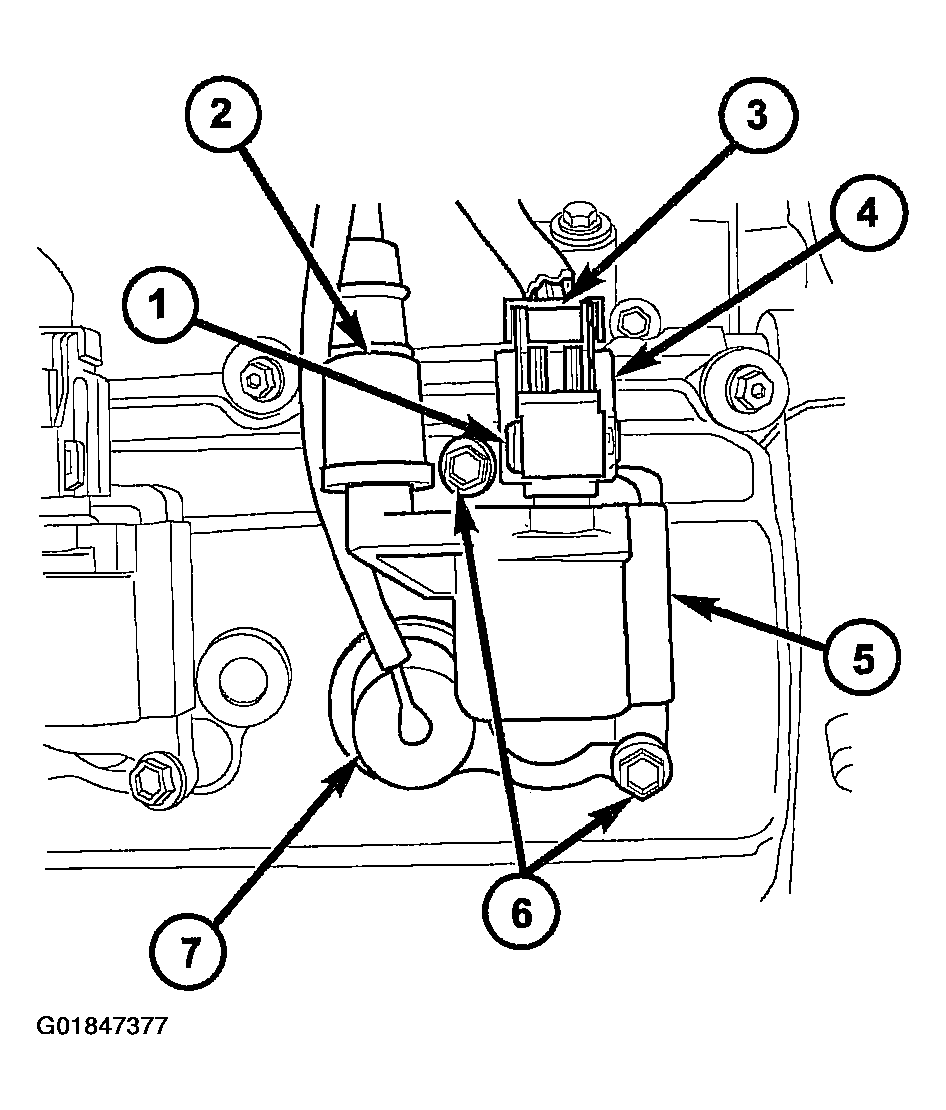

Each coil (5) is mounted directly to the top of each spark plug. Each coil is bolted (6) to the valve cover.

Fig 2: Locating Coil (5.7L)

Courtesy of DAIMLERCHRYSLER CORP.
