With APPS

The following procedure applies only to vehicles without the Adjustable Pedal Package (code XAP). It also applies to vehicles equipped  with an accelerator pedal position sensor (6).

The accelerator pedal (4) is serviced as a complete assembly including the bracket.

1. Disconnect electrical connector (1) at APPS (6).
2. Remove two accelerator pedal mounting bracket nuts (5). Remove accelerator pedal assembly (4).

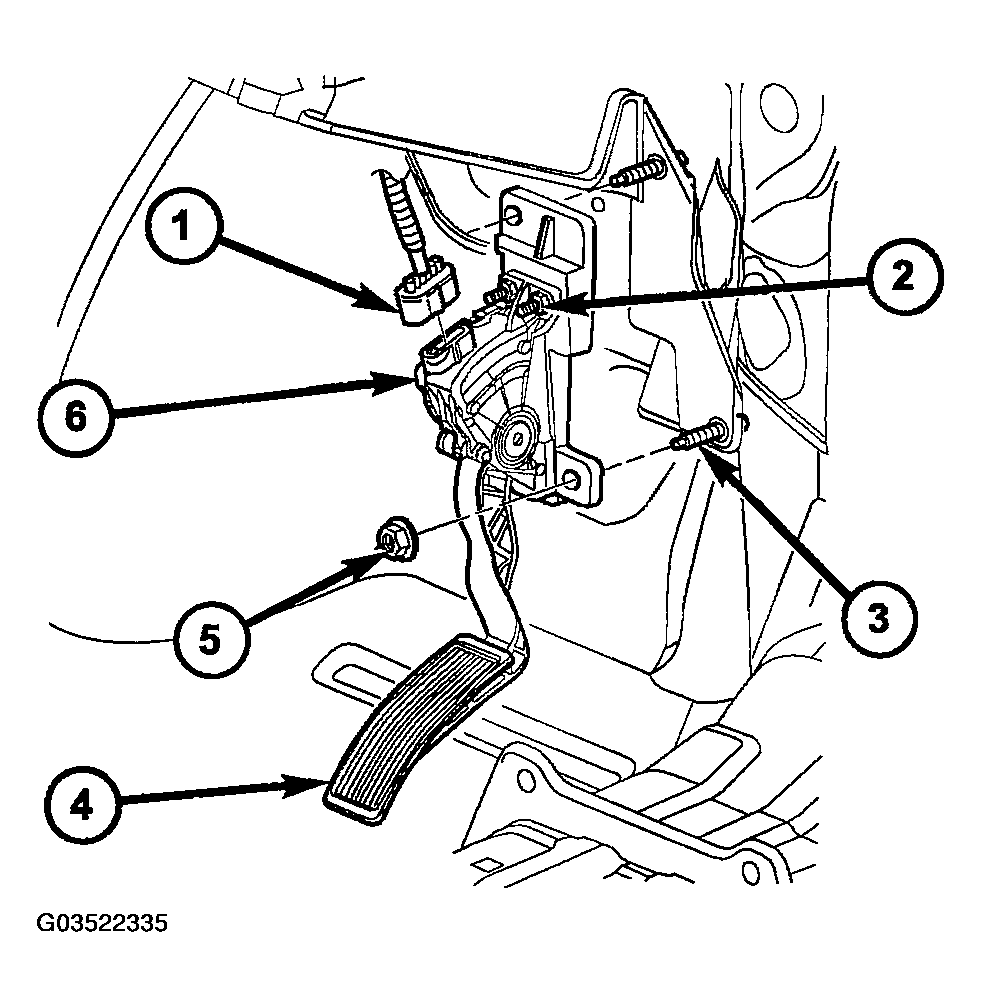

   Fig 1: Removing Accelerator Pedal (With APPS)

   Courtesy of DAIMLERCHRYSLER CORP.
