Junction Block: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the cowl trim cover (Refer to PANEL-COWL SIDE TRIM ).
  3. Remove the mounting fasteners (3).
  4. Disconnect the electrical harness connectors and remove Junction Block (1).
  5. Transfer components as necessary.

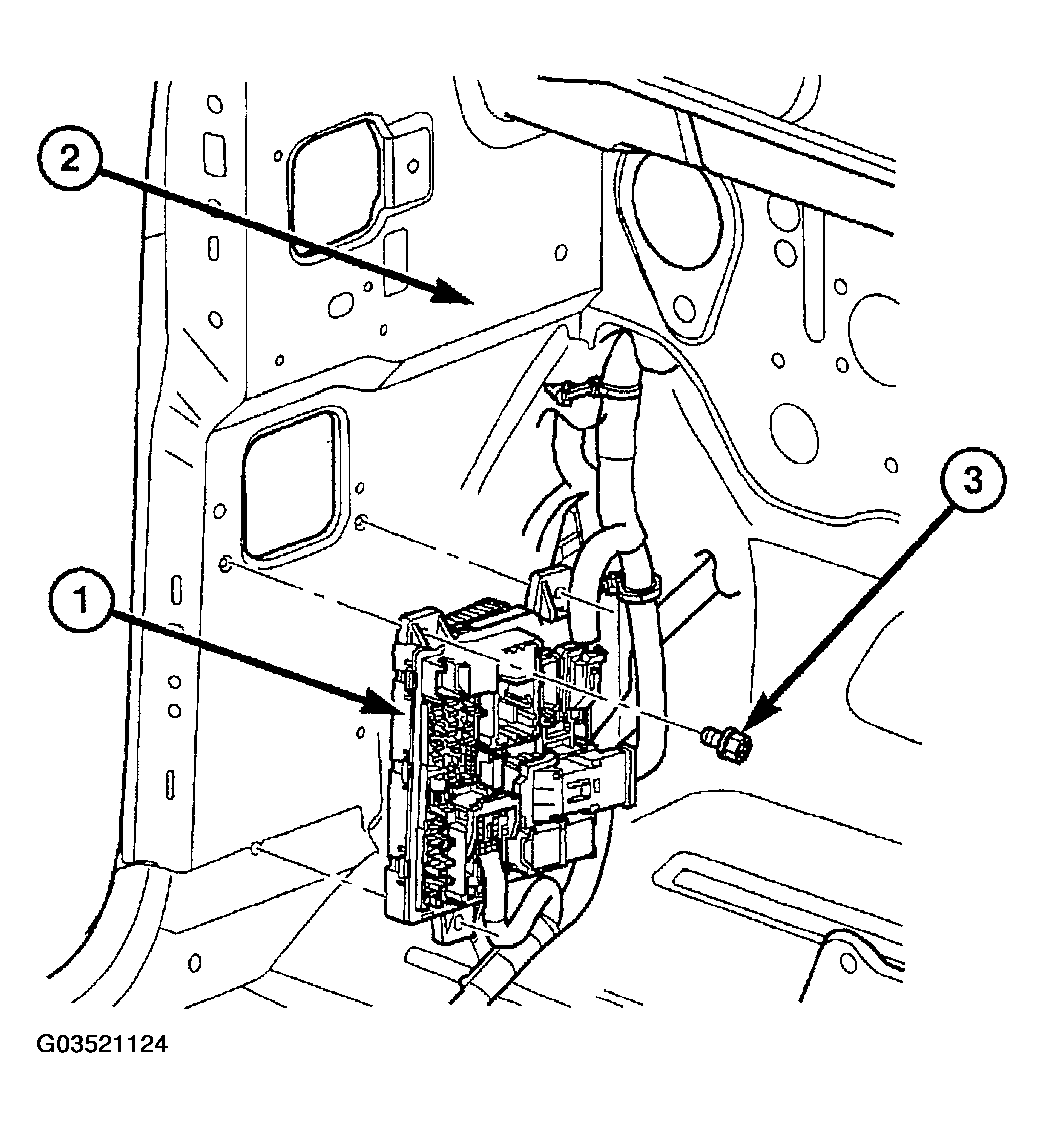

    Fig 1: Removing Junction Block
    G03521124Courtesy of DAIMLERCHRYSLER CORP.
