5.7L V-8

The Camshaft Position Sensor (CMP) on the 5.7L V-8 engine is located on right side of timing chain cover below generator (1).

1. Disconnect electrical connector (3) at CMP sensor.

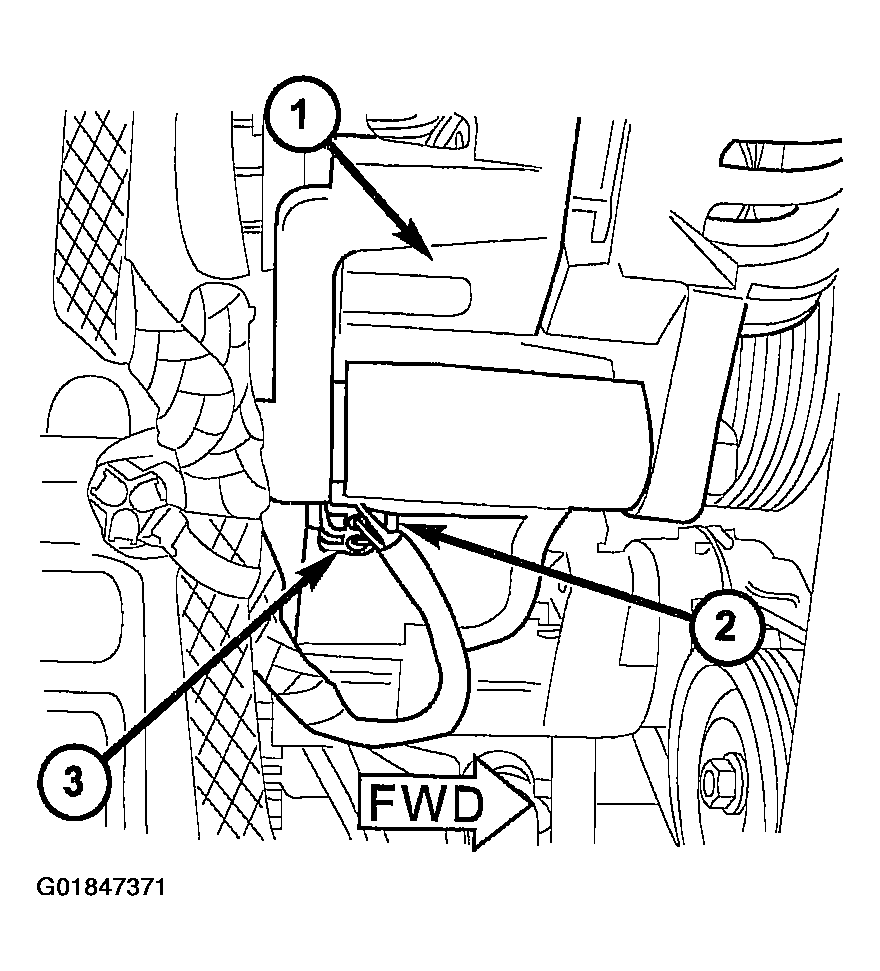

Fig 1: Locating Camshaft Position Sensor (5.7L)
Courtesy of DAIMLERCHRYSLER CORP.
2. Remove sensor mounting bolt (3).
3. Carefully twist sensor (2) from cylinder head.
4. Check condition of sensor o-ring.

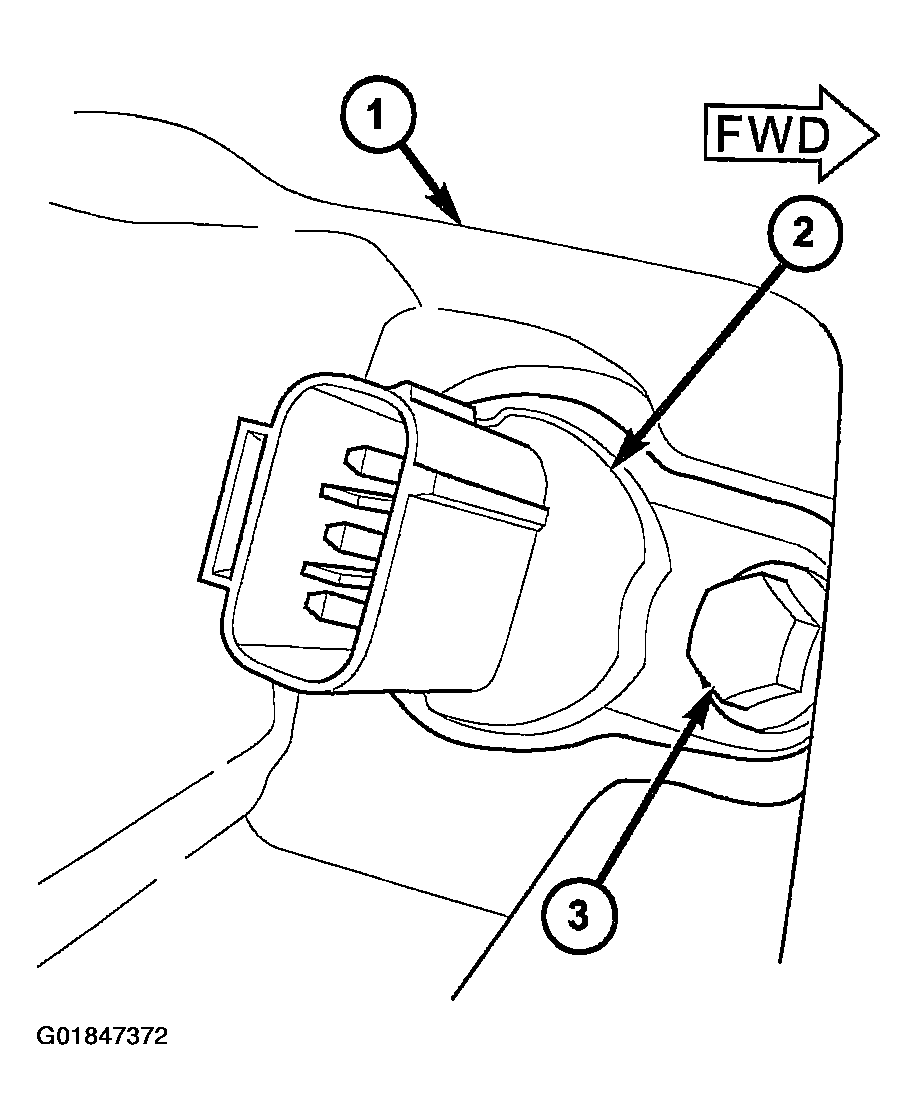

Fig 2: Removing Camshaft Position Sensor (5.7L)

Courtesy of DAIMLERCHRYSLER CORP.
