Sensor-Throttle Position: Installation: 4.7LV-8

The throttle shaft end of throttle body (5) slides into a socket in TPS (4). The TPS must be installed so that it can be rotated a few degrees. If sensor will not rotate, install sensor with throttle shaft on other side of socket tangs. The TPS will be under slight tension when rotated.

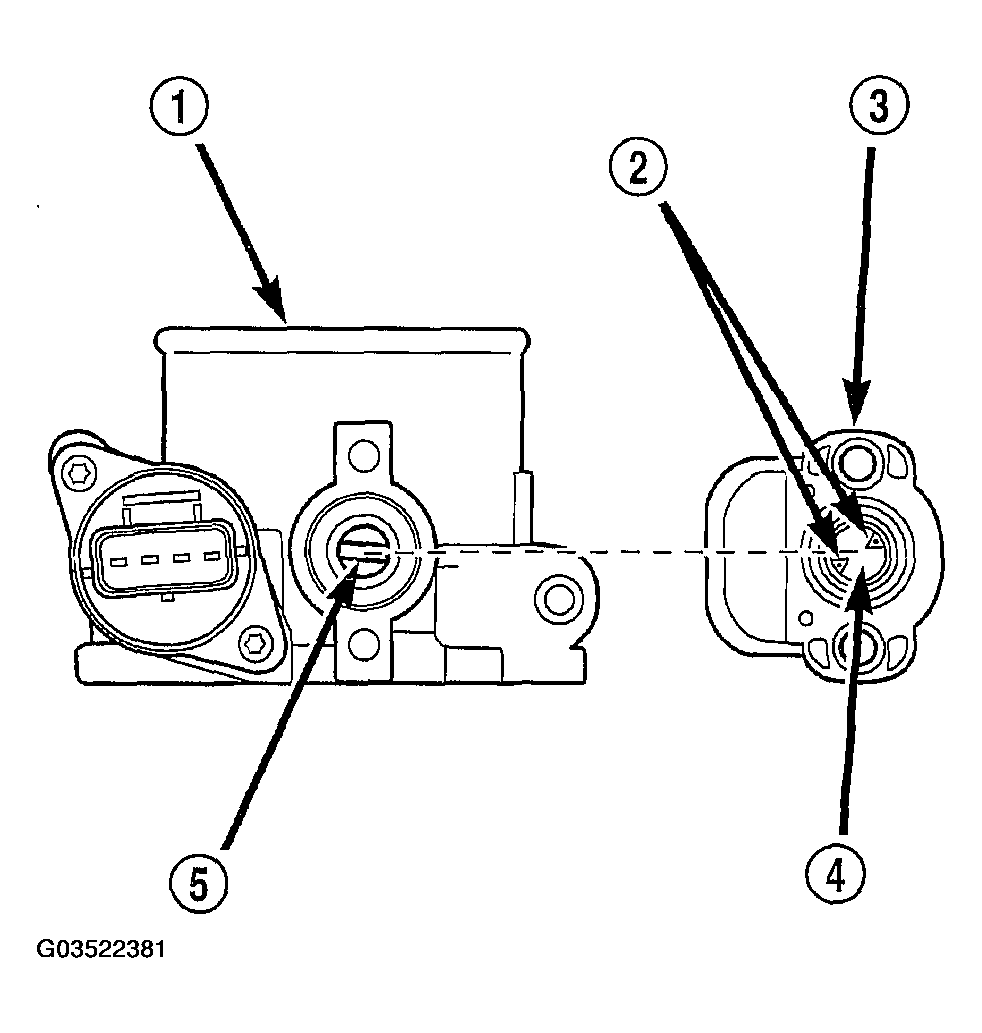

Fig 1: Installing Throttle Position Sensor On Throttle Body (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

1. Install TPS and two retaining bolts.
2. Tighten bolts to 7 N.m (60 in. lbs.) torque.
3. Manually operate throttle control lever by hand to check for any binding of TPS.
4. Connect TPS electrical connector to TPS.
5. Install air duct/air box to throttle body.
