Sensor-Throttle Position: Installation: 3.7LV-6

The throttle shaft end of throttle body (3) slides into a socket in TPS (4). The TPS must be installed so that it can be rotated a few degrees. (If sensor will not rotate, install sensor with throttle shaft on other side of socket tangs). The TPS will be under slight tension when rotated.

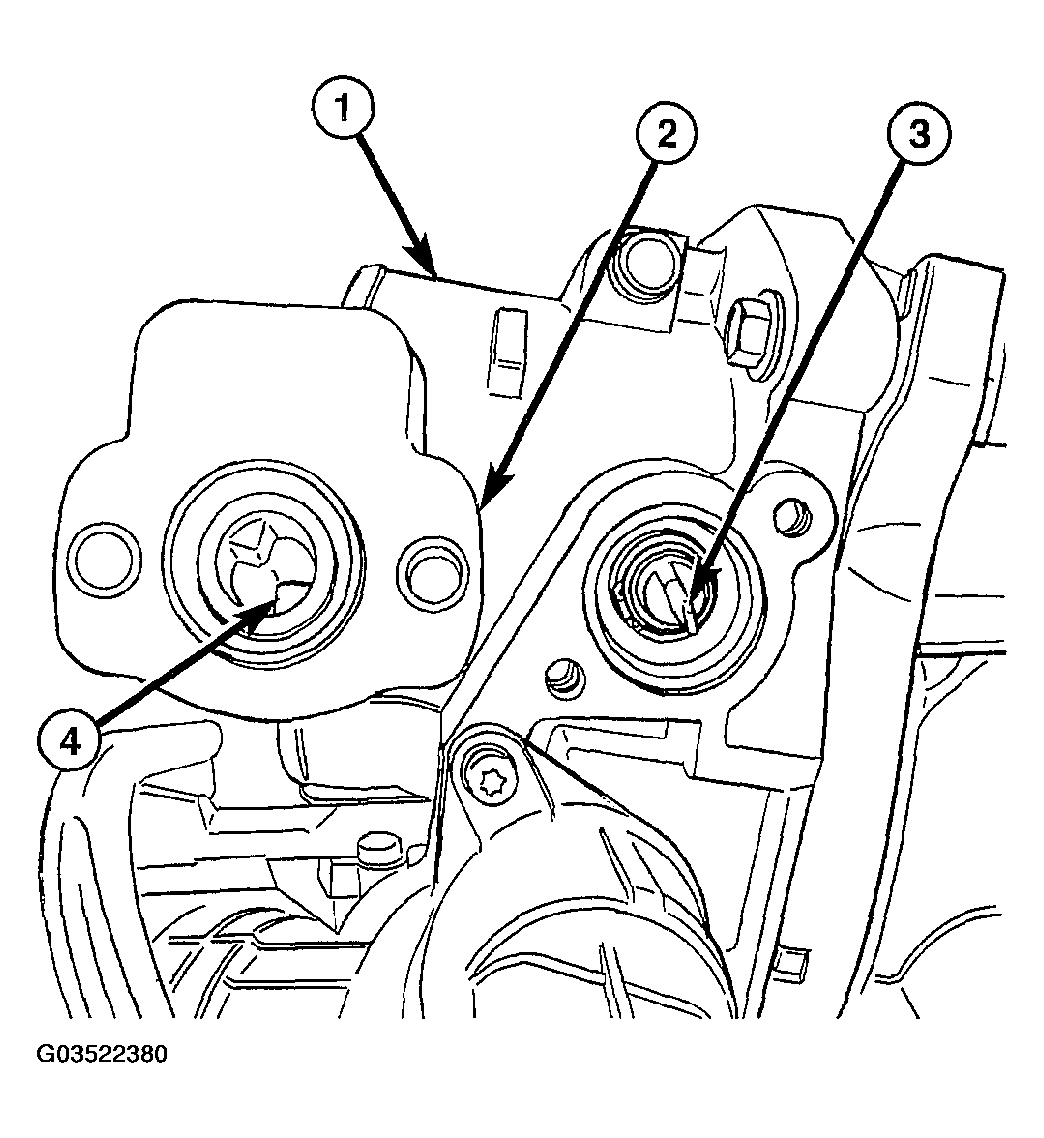

Fig 1: Installing Throttle Position Sensor On Throttle Body (3.7L)

Courtesy of DAIMLERCHRYSLER CORP.

1. Install TPS and retaining screws.
2. Tighten screws to 7 N.m (60 in. lbs.) torque.
3. Connect TPS electrical connector to TPS.
4. Manually operate throttle (by hand) to check for any TPS binding before starting engine.
5. Install air cleaner tube to throttle body.
