3.7L V-6

The Manifold Absolute Pressure (MAP) sensor (2) is mounted into the front of the intake manifold.

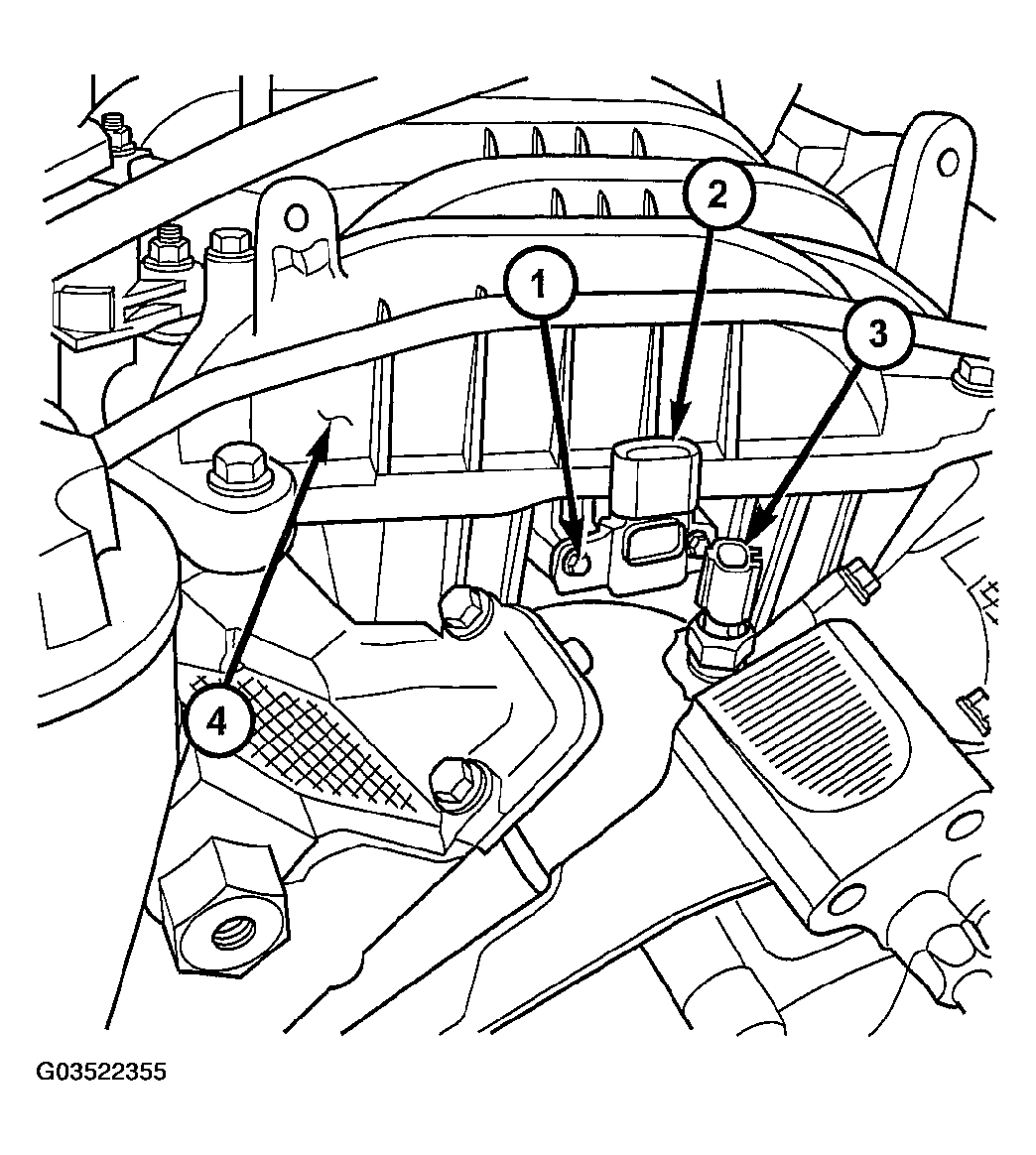

Fig 1: Locating Manifold Absolute Pressure Sensor (3.7L)

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect electrical connector at sensor.
2. Clean area around MAP sensor.
3. Remove two sensor mounting screws (1).
4. Remove MAP sensor from intake manifold.
5. Check condition of sensor o-ring (2)

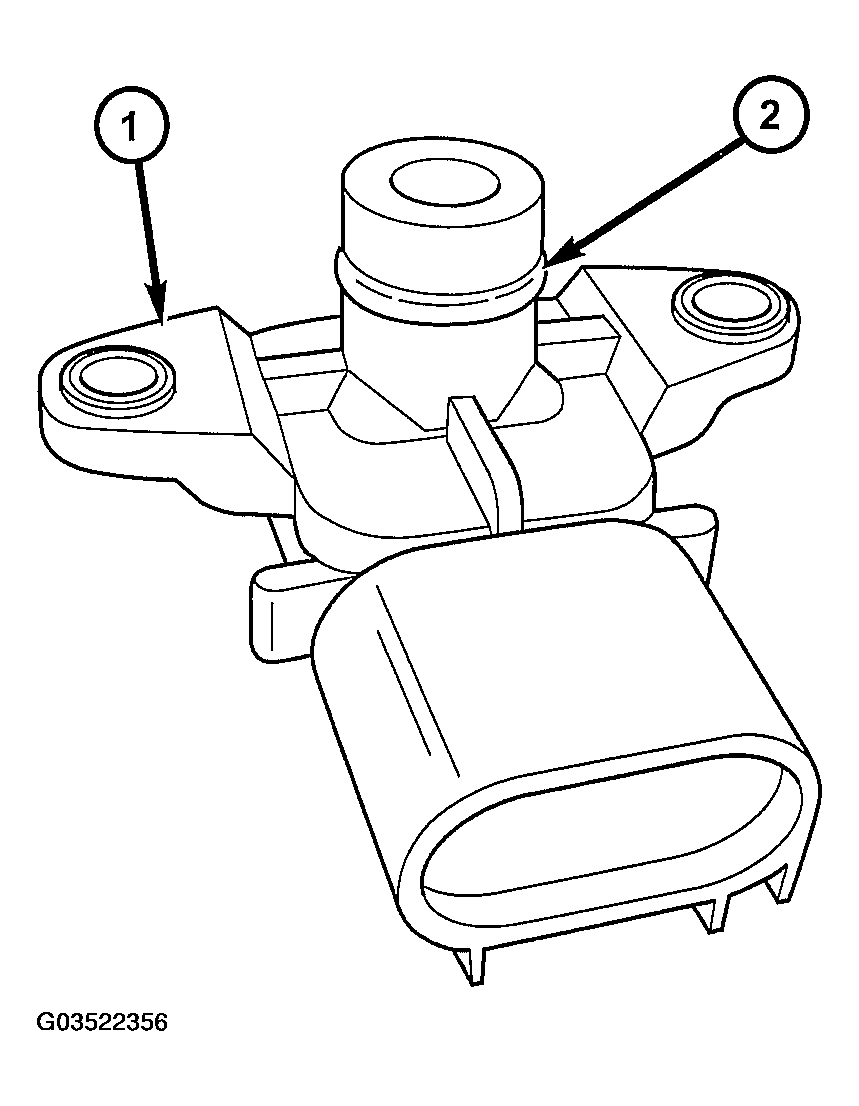

   Fig 2: Identifying Manifold Absolute Pressure Sensor Components

   Courtesy of DAIMLERCHRYSLER CORP.
