Home >> Dodge and Ram >> 2004 >> Durango 5.7 D, 4WD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Injection >> Injector-Fuel >> Removal

Fuel Injection: Injector-Fuel: Removal

  1. Remove fuel rail. Refer to RAIL-FUEL .
  2. Disconnect clip(s) that retain fuel injector(s) to fuel rail (2).

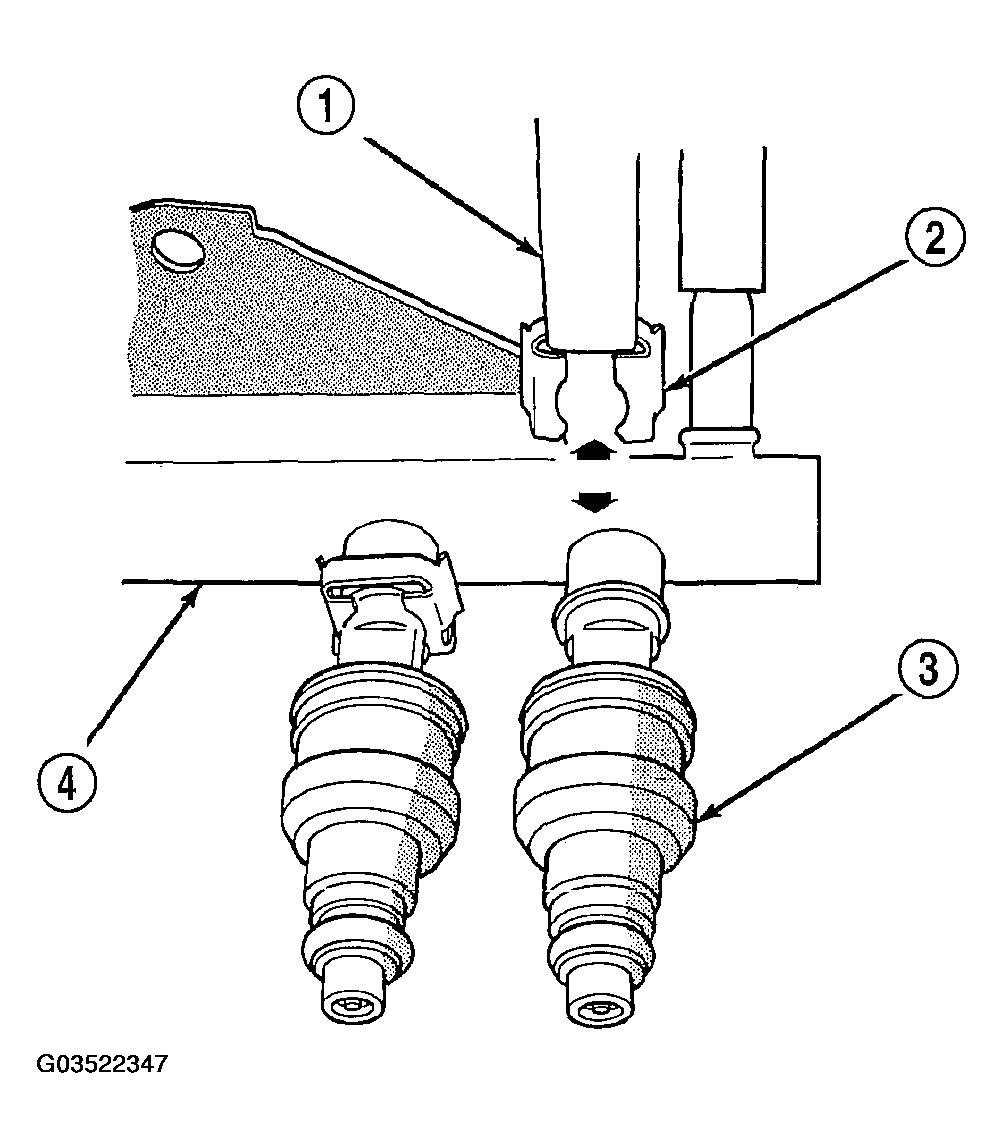

    Fig 1: Disconnecting Clip That Retains Fuel Injector To Fuel Rail
    G03522347Courtesy of DAIMLERCHRYSLER CORP.
