3.7L V-6

Slide accelerator cable plastic mount into throttle body mounting bracket. Continue sliding until; release tab (2) is aligned to hole in mounting bracket.

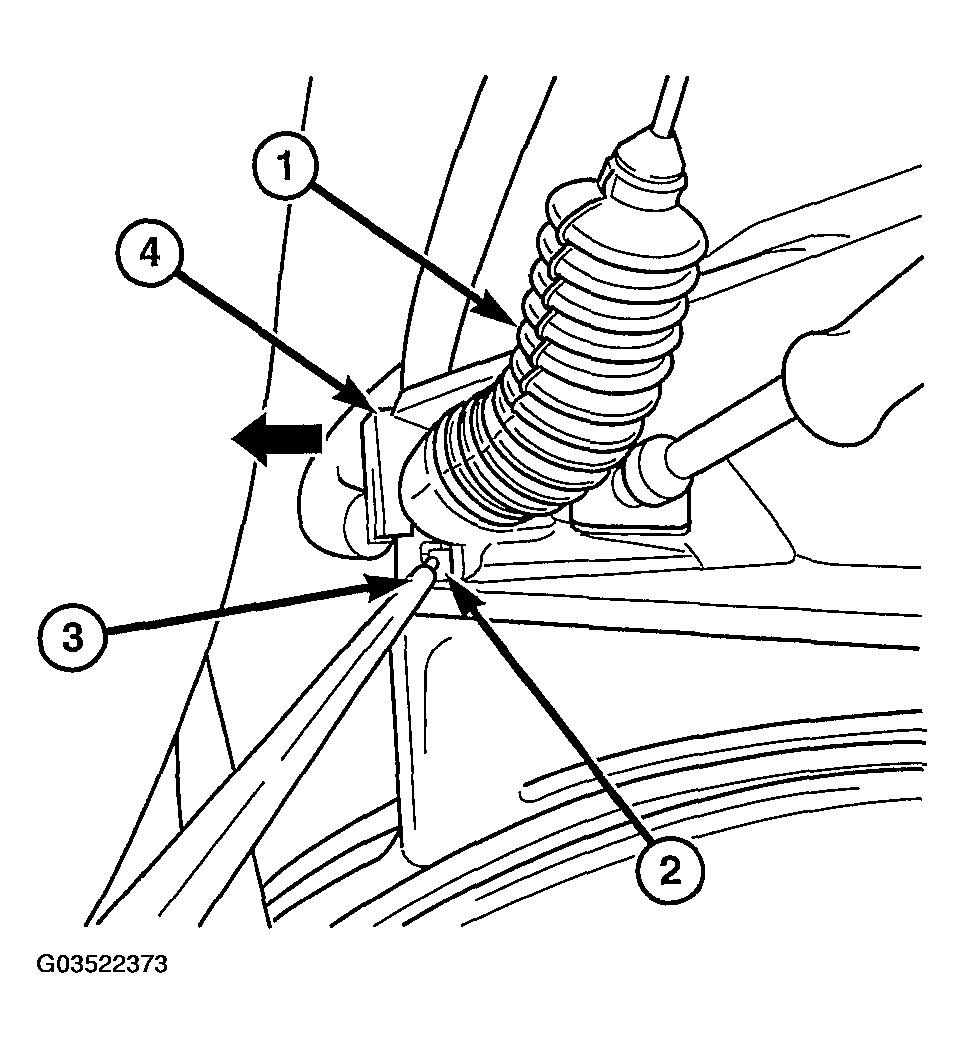

Fig 1: Installing Accelerator Cable Mount In Bracket (3.7L)
Courtesy of DAIMLERCHRYSLER CORP.
Hold throttle in wide open position. While held in this position, slide throttle cable pin (1) into throttle body bellcrank.
Push cable housing into rubber grommet and through opening in dash panel.

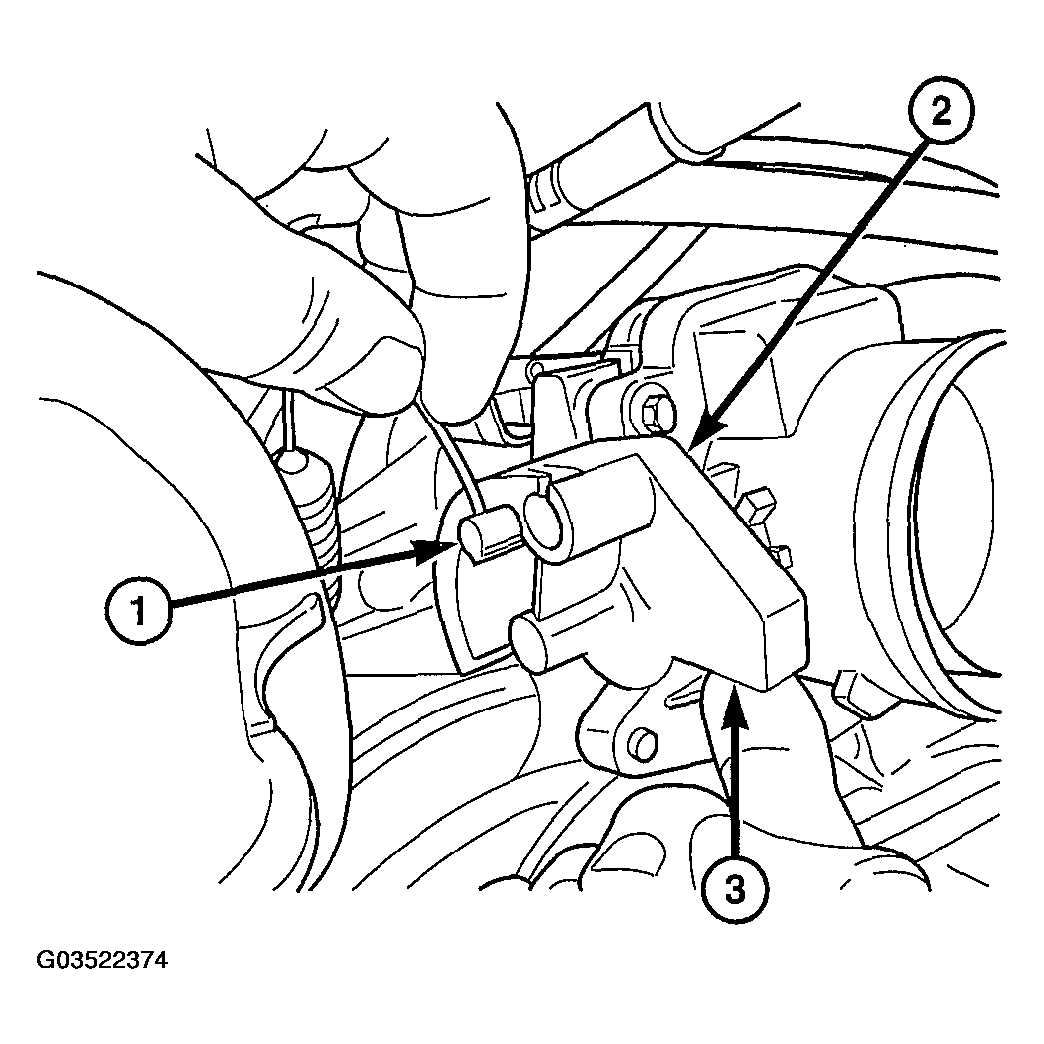

Fig 2: Installing Throttle Cable Pin Into Throttle Body Bellcrank (3.7L)
Courtesy of DAIMLERCHRYSLER CORP.
From inside vehicle, install metal clip (2) holding cable to dashpanel.
From inside vehicle, slide throttle cable core wire into opening (slot) in top of pedal arm.
Push plastic cable retainer (clip) (7) into pedal arm opening (6) until it snaps in place.
Install air resonator tube to throttle body.
Before starting engine, operate accelerator pedal to check for any binding.

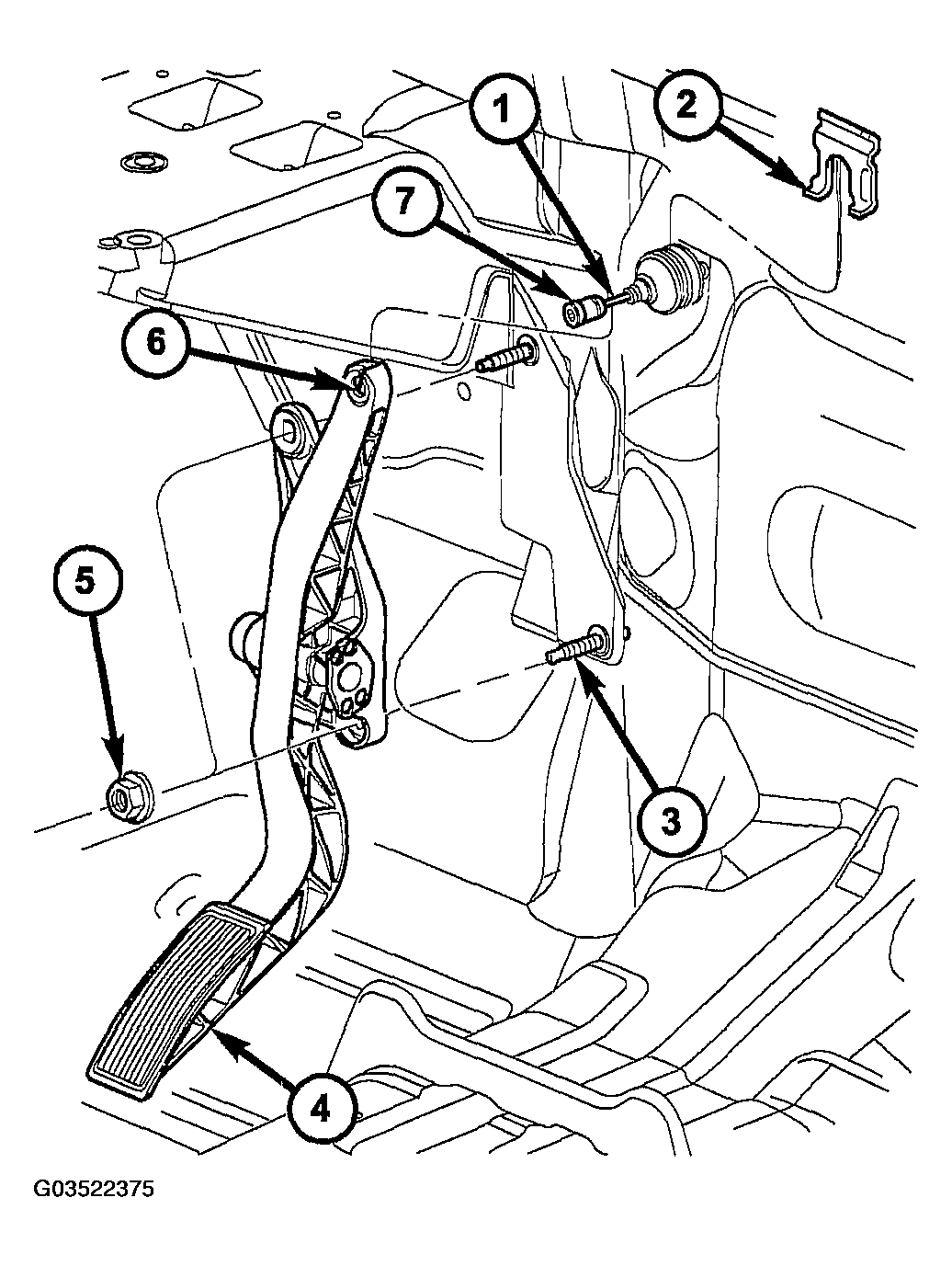

Fig 3: Installing Throttle Cable To Pedal (3.7L)
Courtesy of DAIMLERCHRYSLER CORP.
