Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

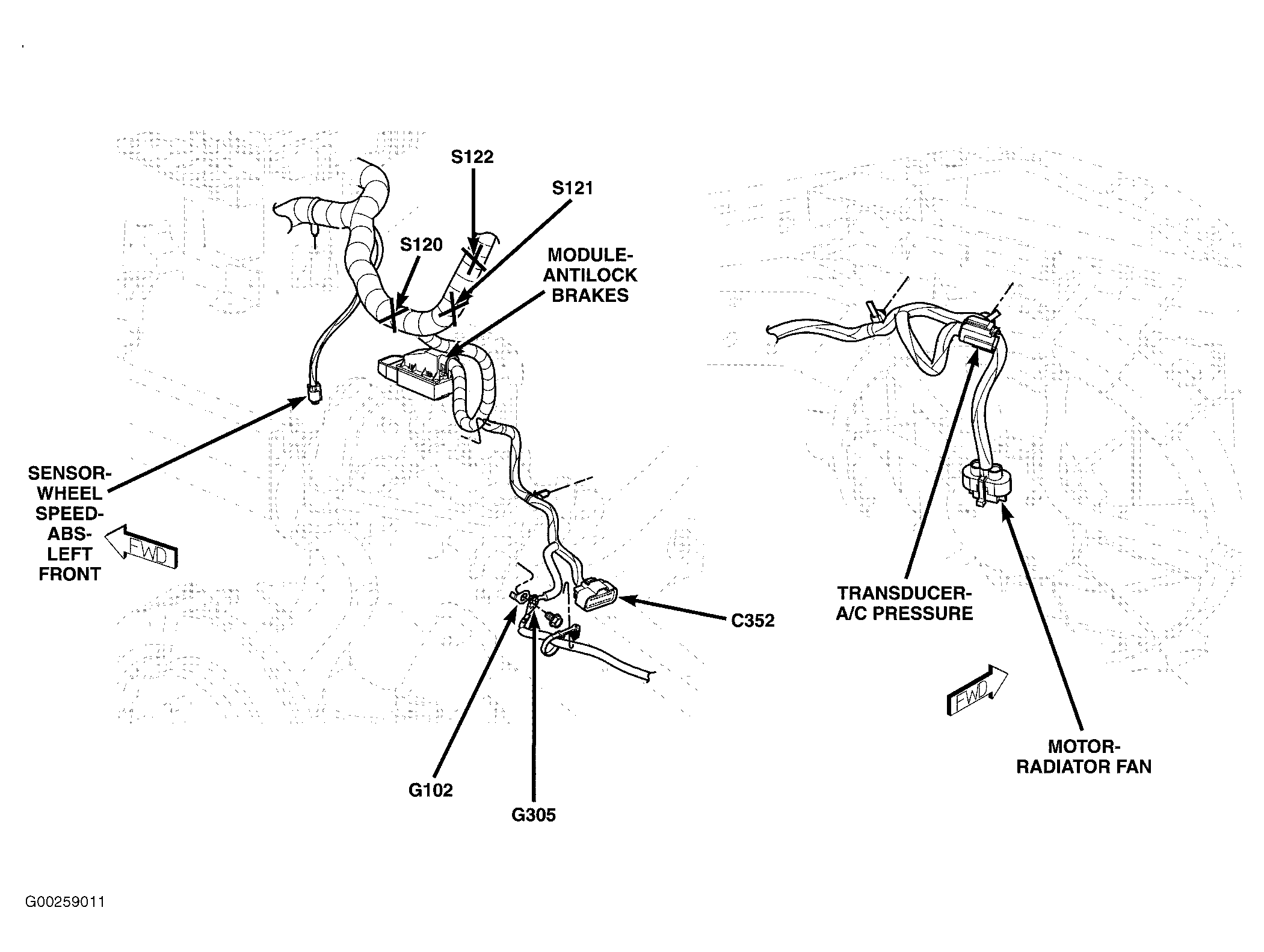

| Antilock Brakes Module | Left front of engine compartment. See Figure . |

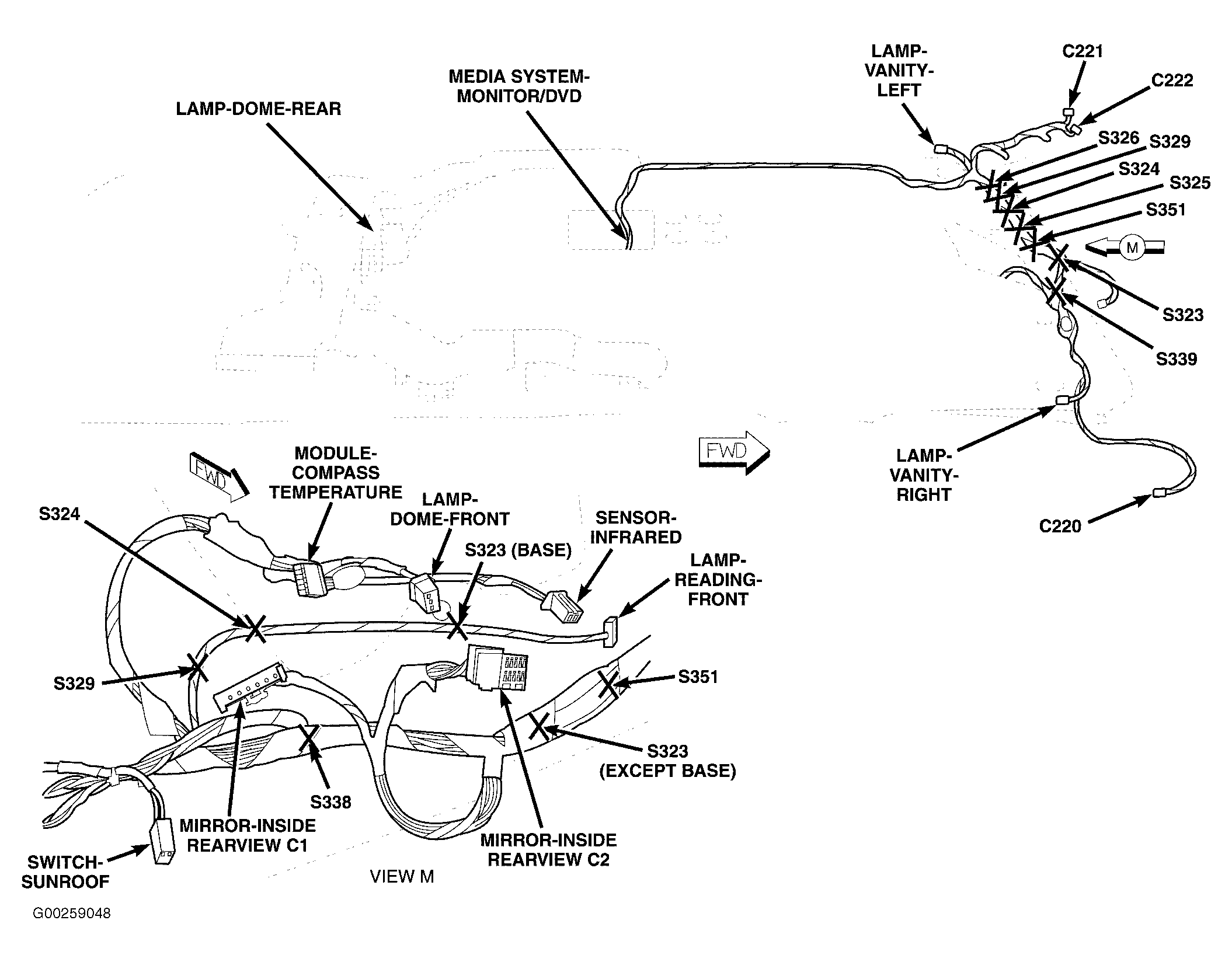

| Compass Temperature Module | Front center of headliner. See Figure . |

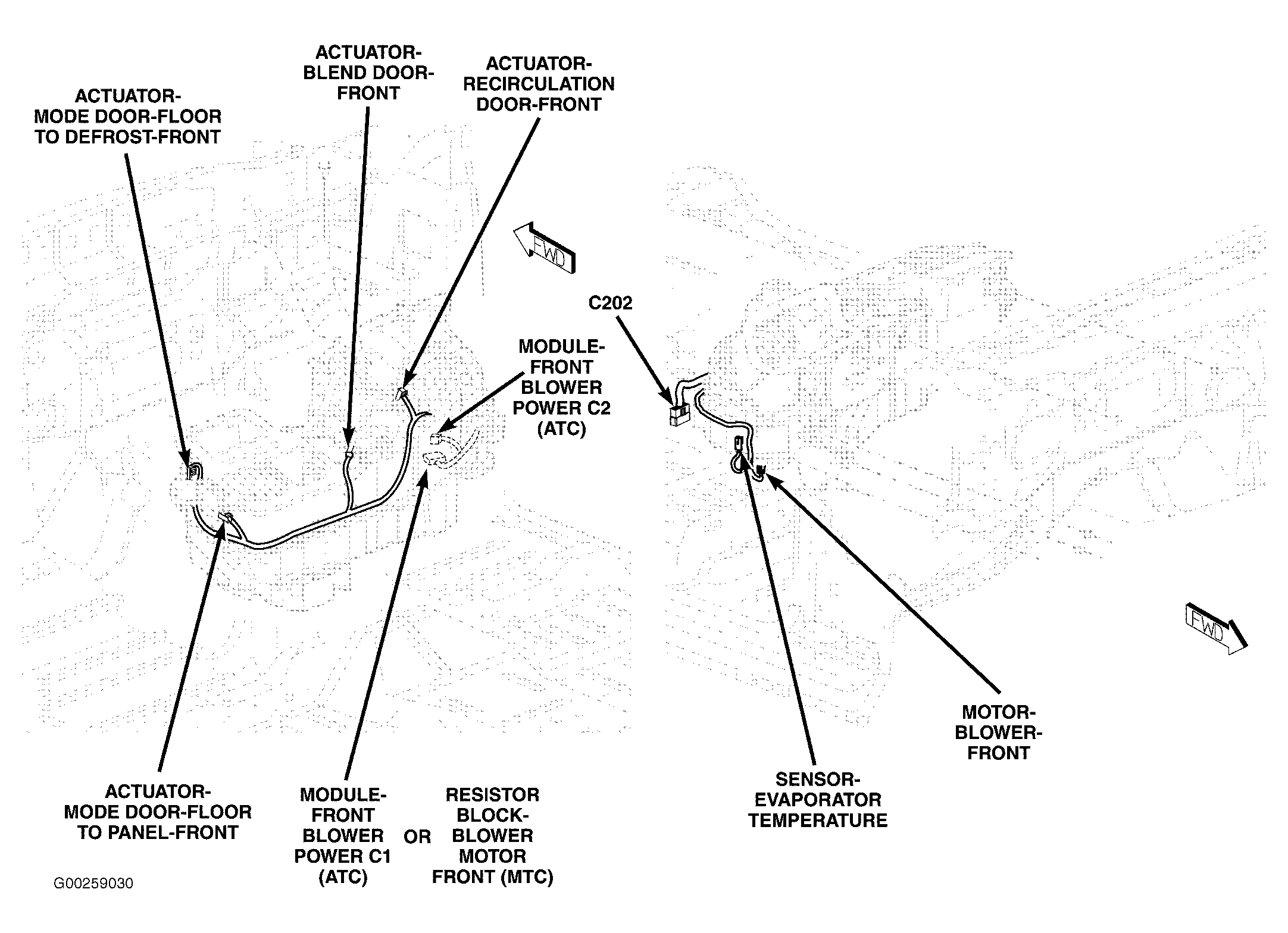

| Front Blower Power (ATC) Module | Right end of HVAC. See Figure . |
| Front Control Module | At power distribution module. See Figure . |
| Front Control PDM Module | At power distribution module. See Figure . |
| Fuel Pump Module | Top of fuel tank. See Figure . |

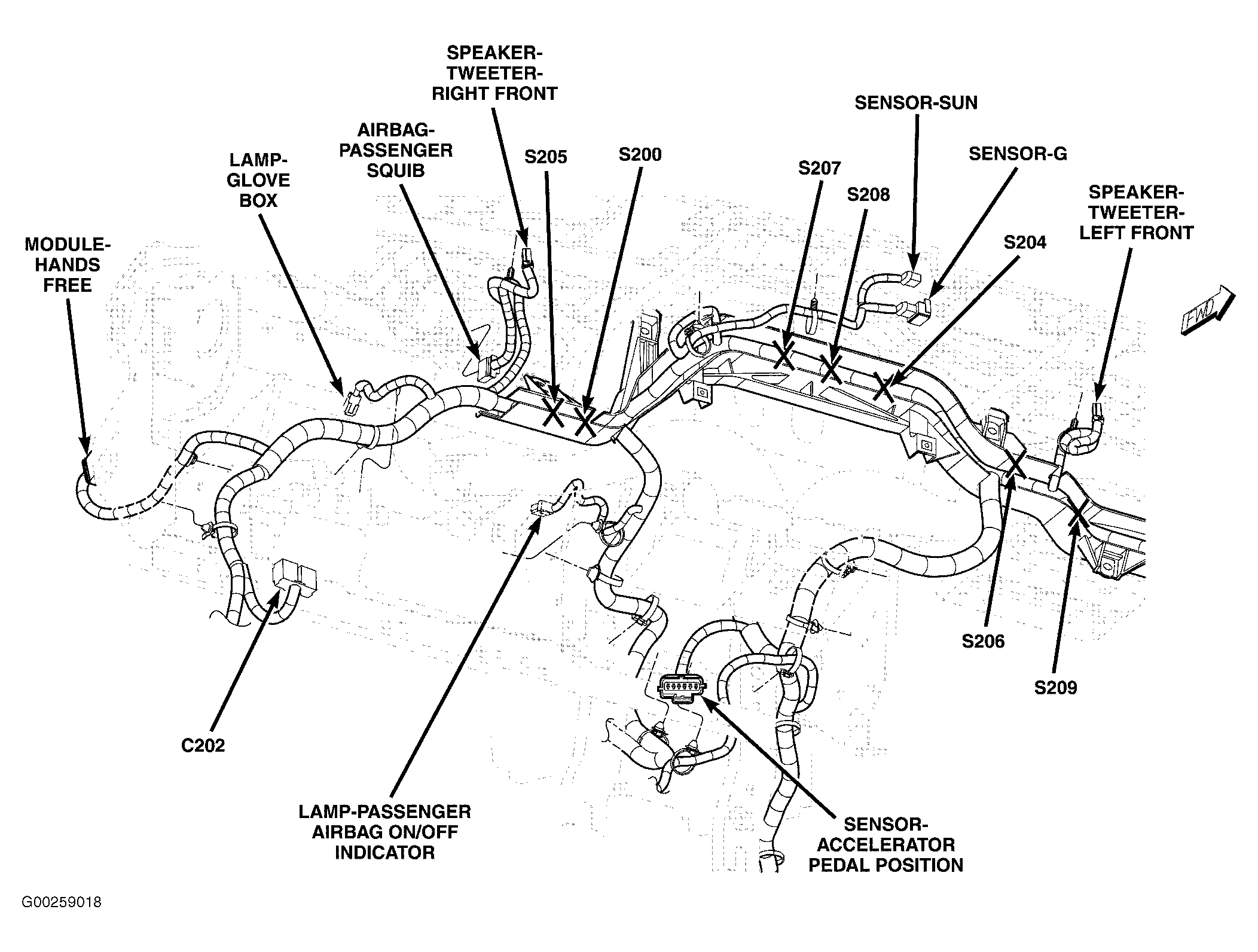

| Hands Free Module | Right end of dash. See Figure . |

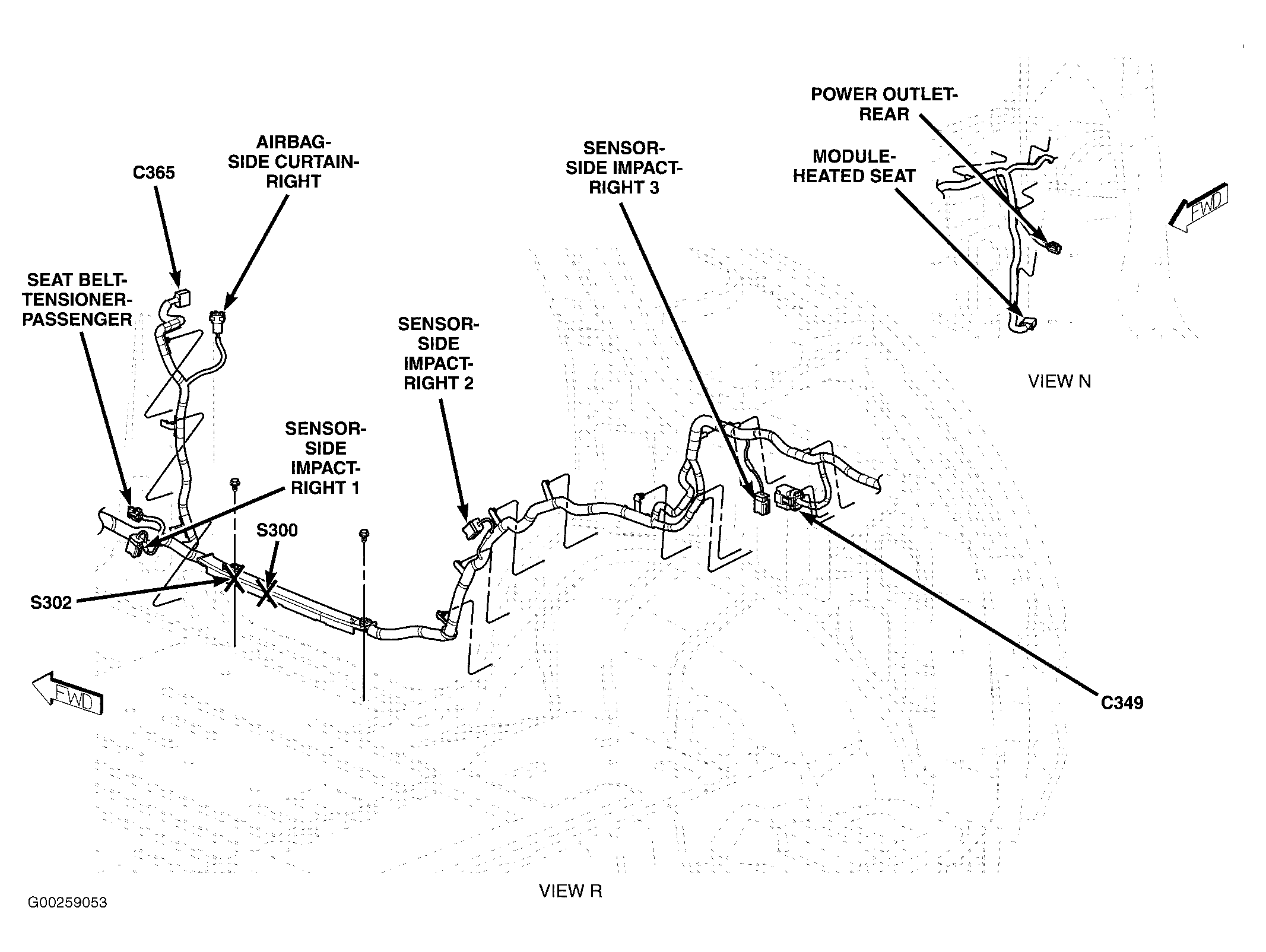

| Heated Seat Module | Right rear quarterpanel. See Figure . |

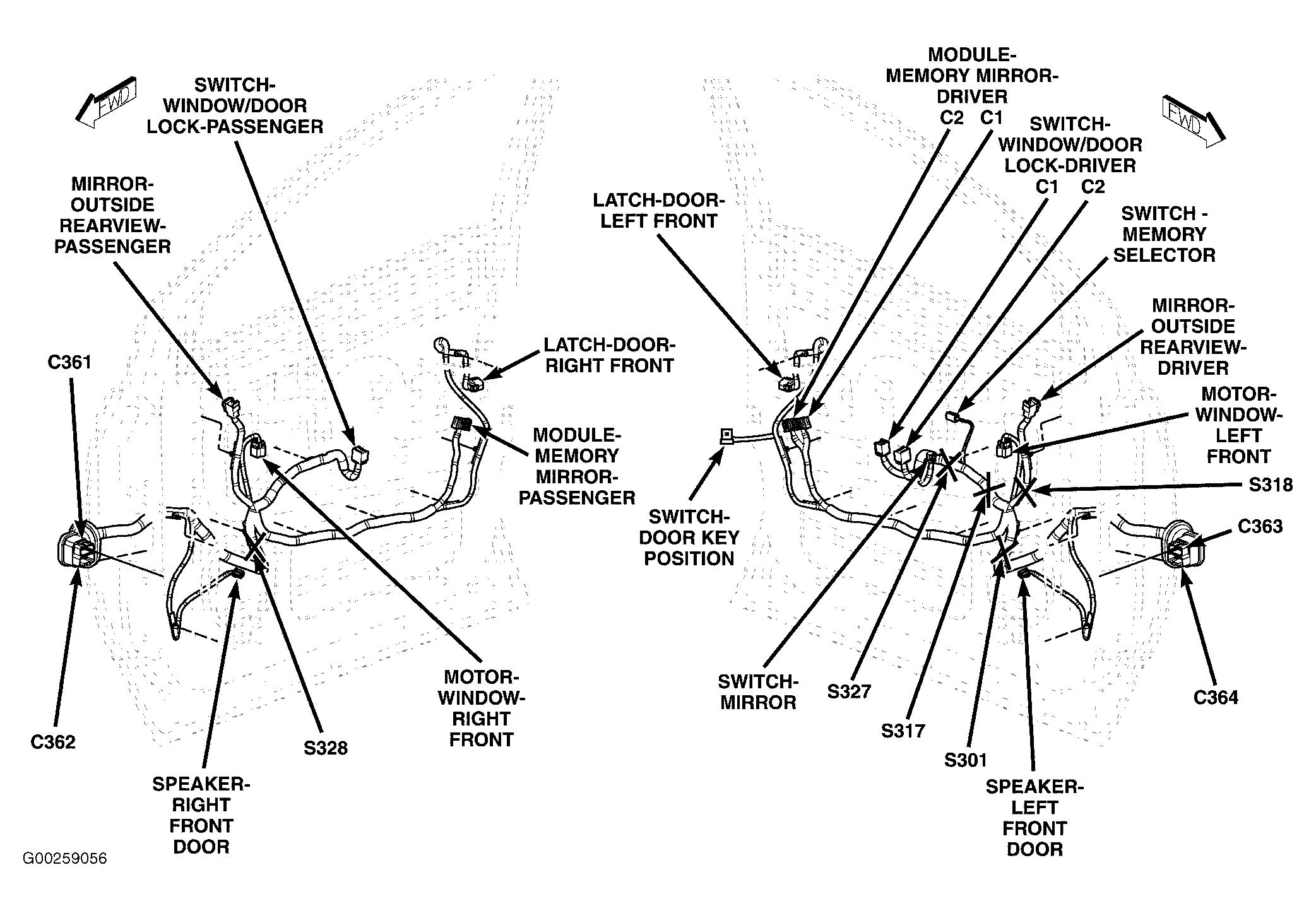

| Memory Mirror Module, Driver | Rear of left front door. See Figure . |
| Memory Mirror Module, Passenger | Rear of right front door. See Figure . |
| Occupant Classification Module | Under passenger seat. See Figure . |

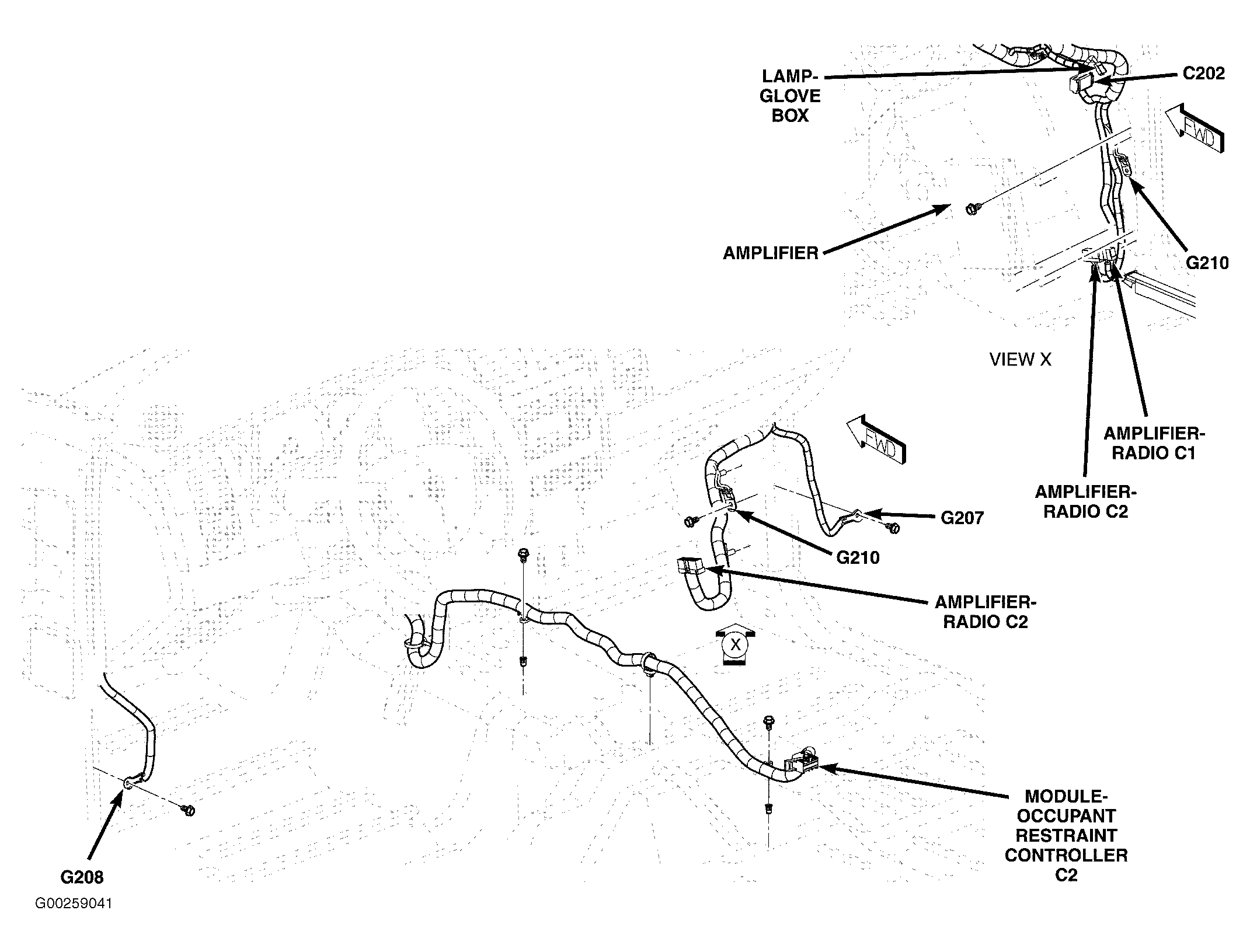

| Occupant Restraint Controller Module | Under center console. See Figure . |
| Power Distribution Module | Left side of engine compartment. See Figure . |
| Powertrain Control Module | Right side of engine compartment. See Figure . |

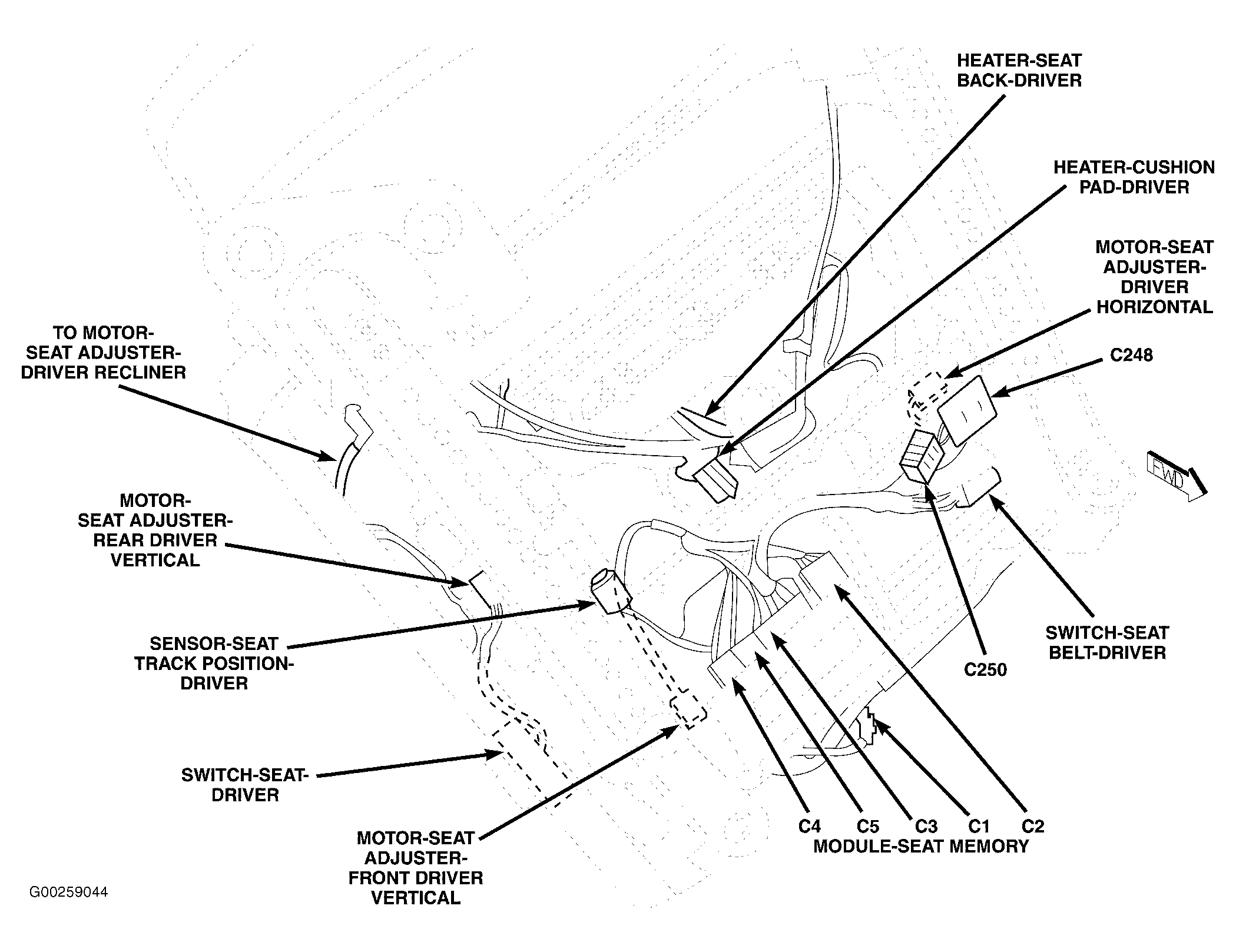

| Seat Memory Module | Under driver seat. See Figure . |

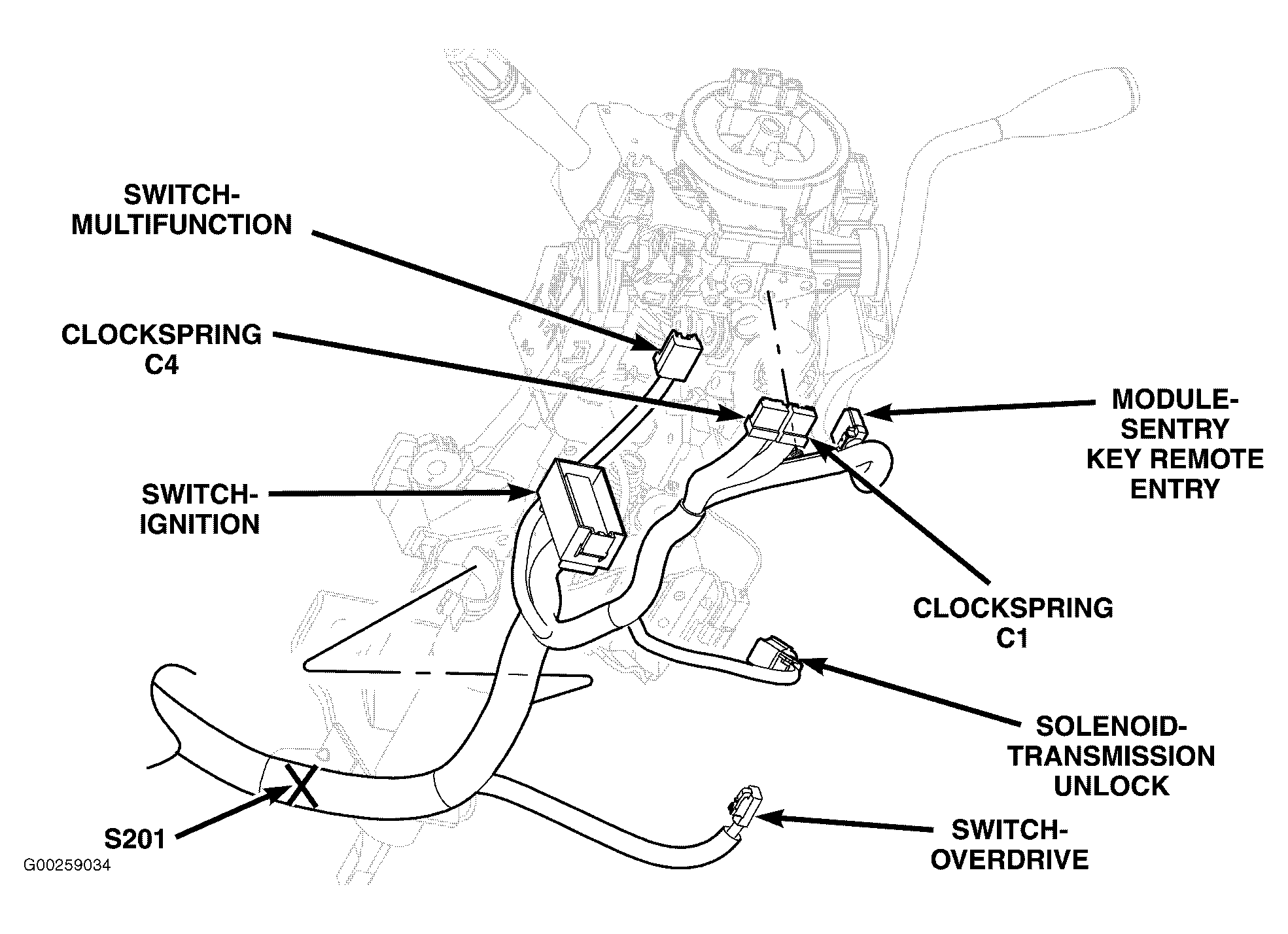

| Sentry Key Remote Entry Module | Top right of steering column. See Figure . |

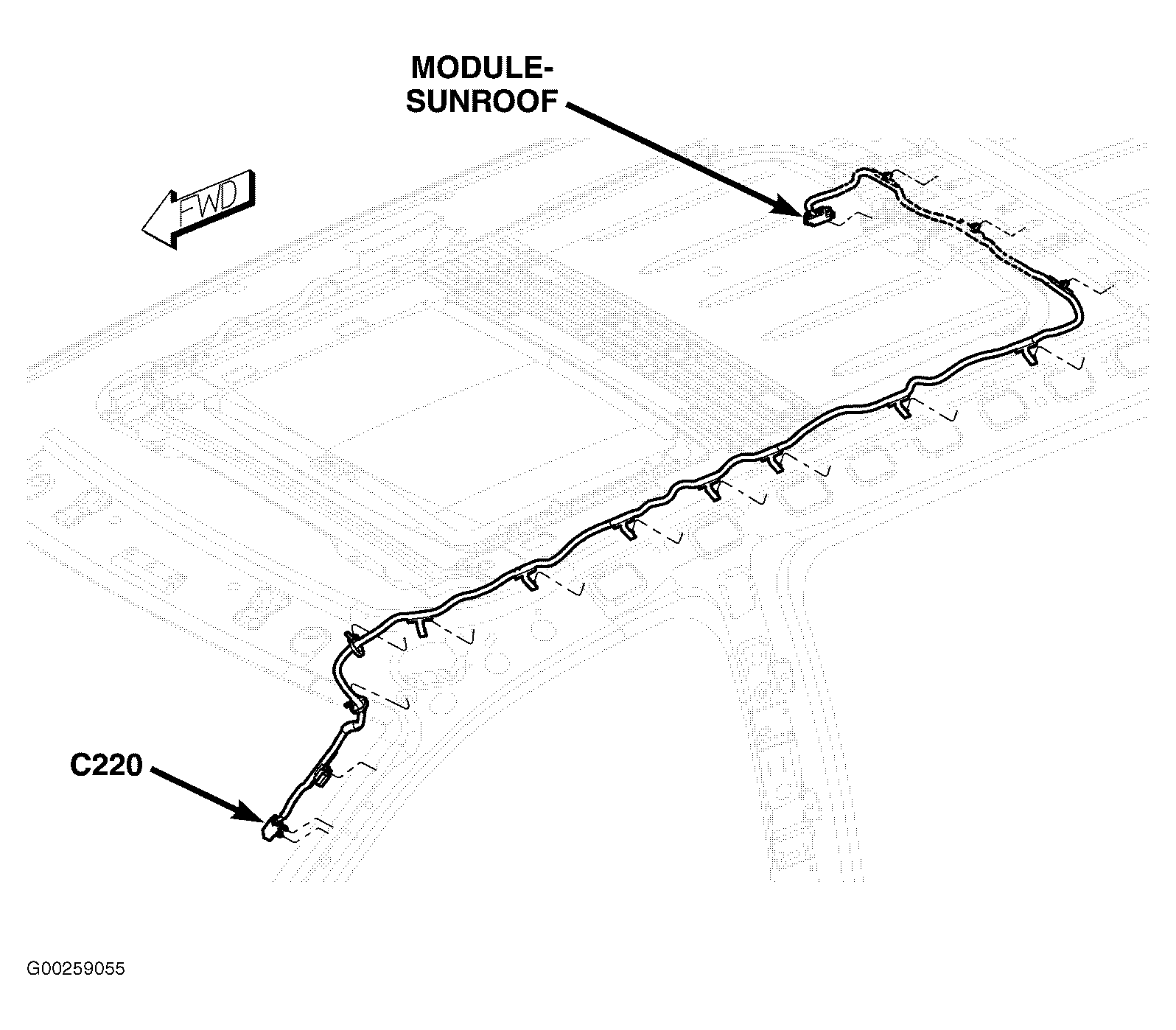

| Sunroof Module | Rear of sunroof. See Figure . |
