Left Speed Control Switch - White 2 Way

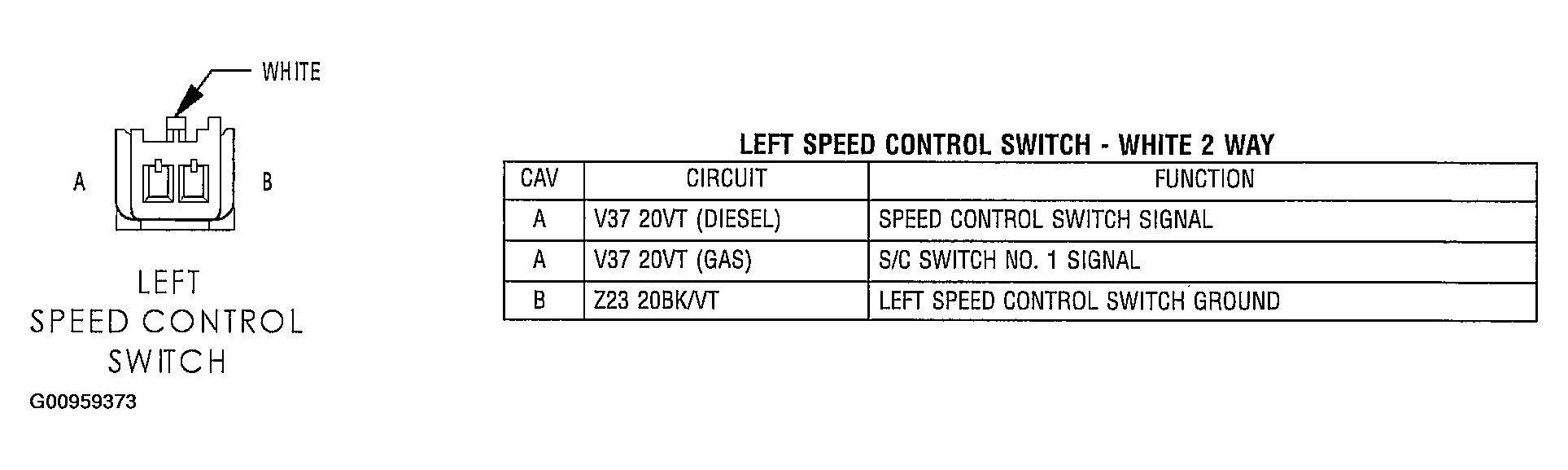

Fig 1: Identifying Left Speed Control Switch - White 2 Way Connector Pinouts And Functional Chart

G00959373

Courtesy of DAIMLERCHRYSLER CORP.
