Integrated Power Module C8 - Orange 10 Way

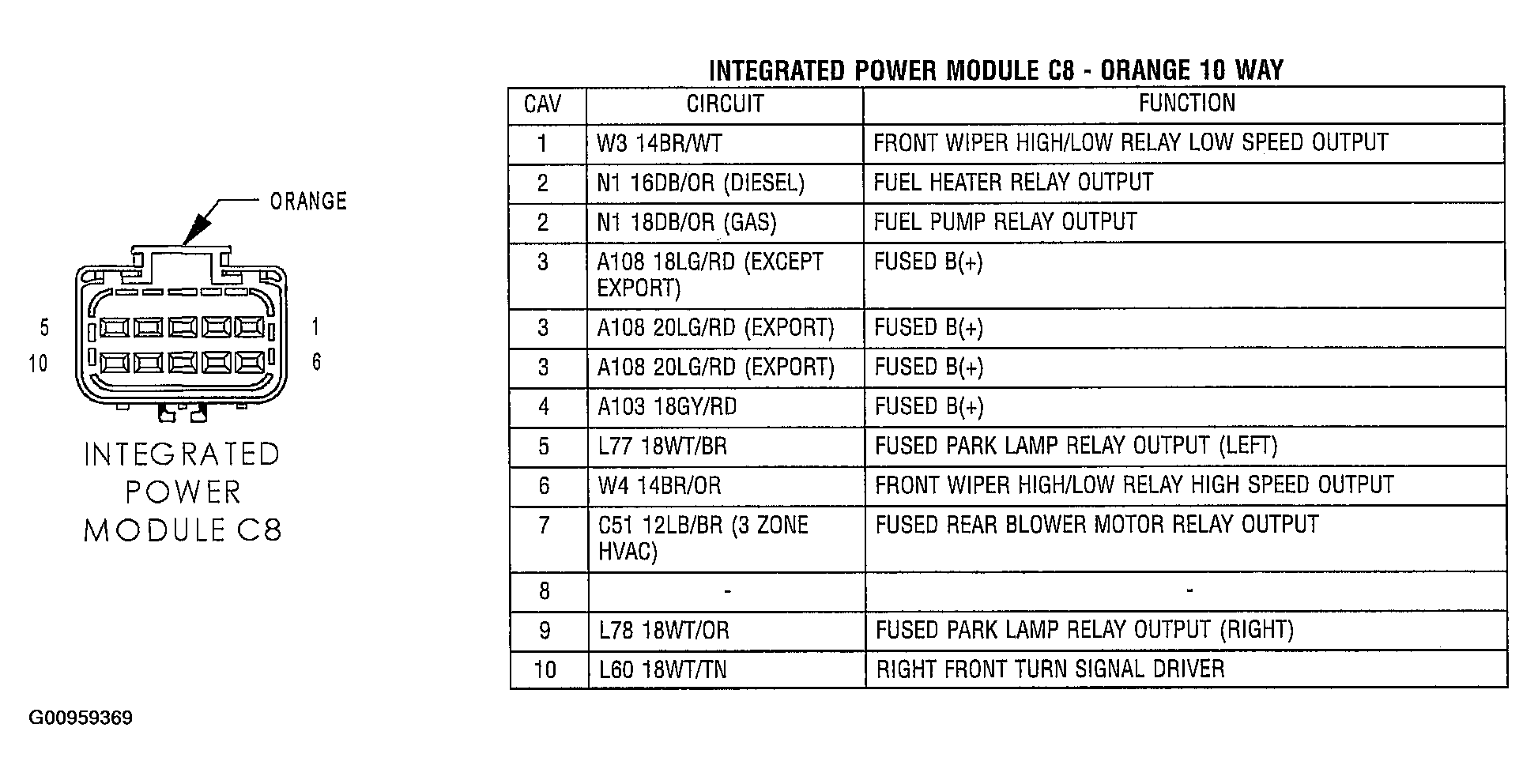

Fig 1: Identifying Integrated Power Module C8 - Orange 10 Way Connector Pinouts And Functional Chart

G00959369

Courtesy of DAIMLERCHRYSLER CORP.
