Fuel Pump Module - LT.Gray 4 Way

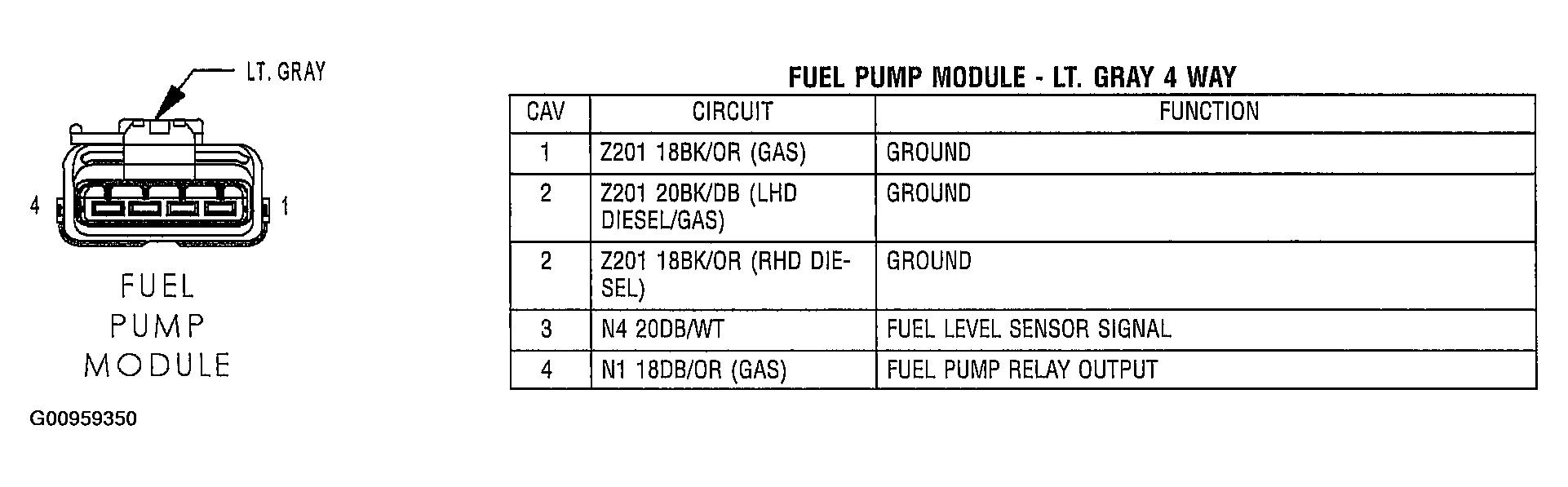

Fig 1: Identifying Fuel Pump Module - LT Gray 4 Way Connector Pinouts And Functional Chart

G00959350

Courtesy of DAIMLERCHRYSLER CORP.
