Brake Fluid Level Switch - 2 Way
Brake Fluid Level Switch - 2 Way

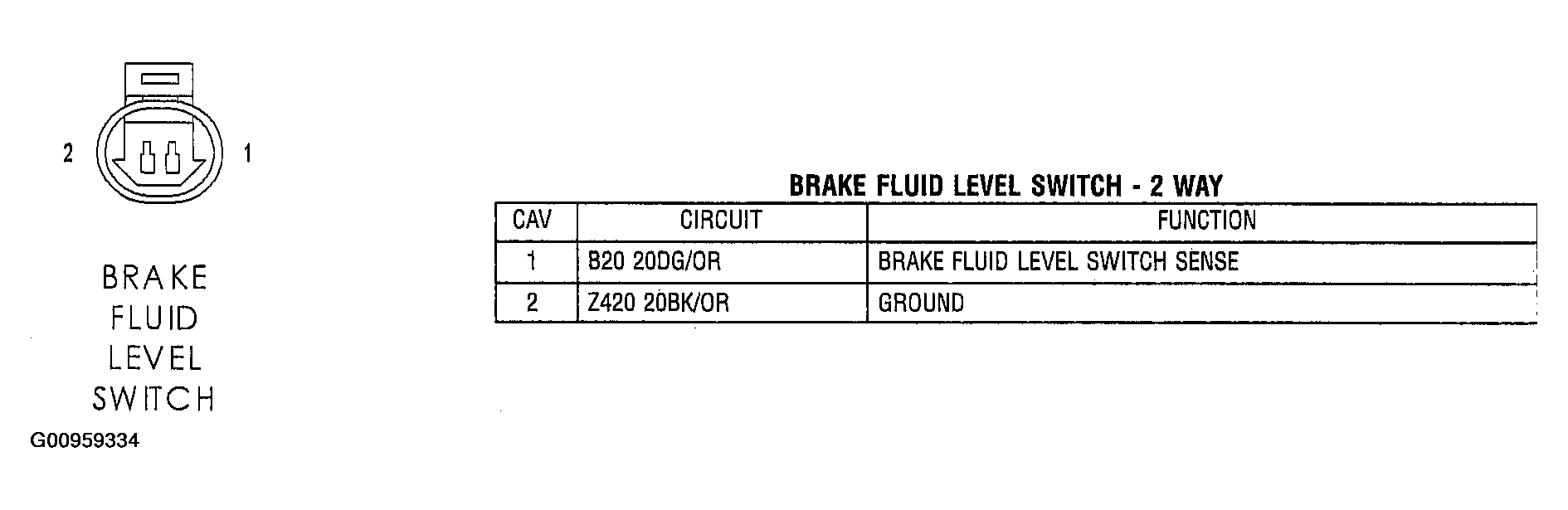

Fig 1: Identifying Brake Fluid Level Switch - 2 Way Connector Pinouts And Functional Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
