Crankshaft Position Sensor: Removal

  1. Disconnect the negative battery cable.
  2. Raise vehicle and support.
  3. Disconnect the electrical connector (Fig 1).

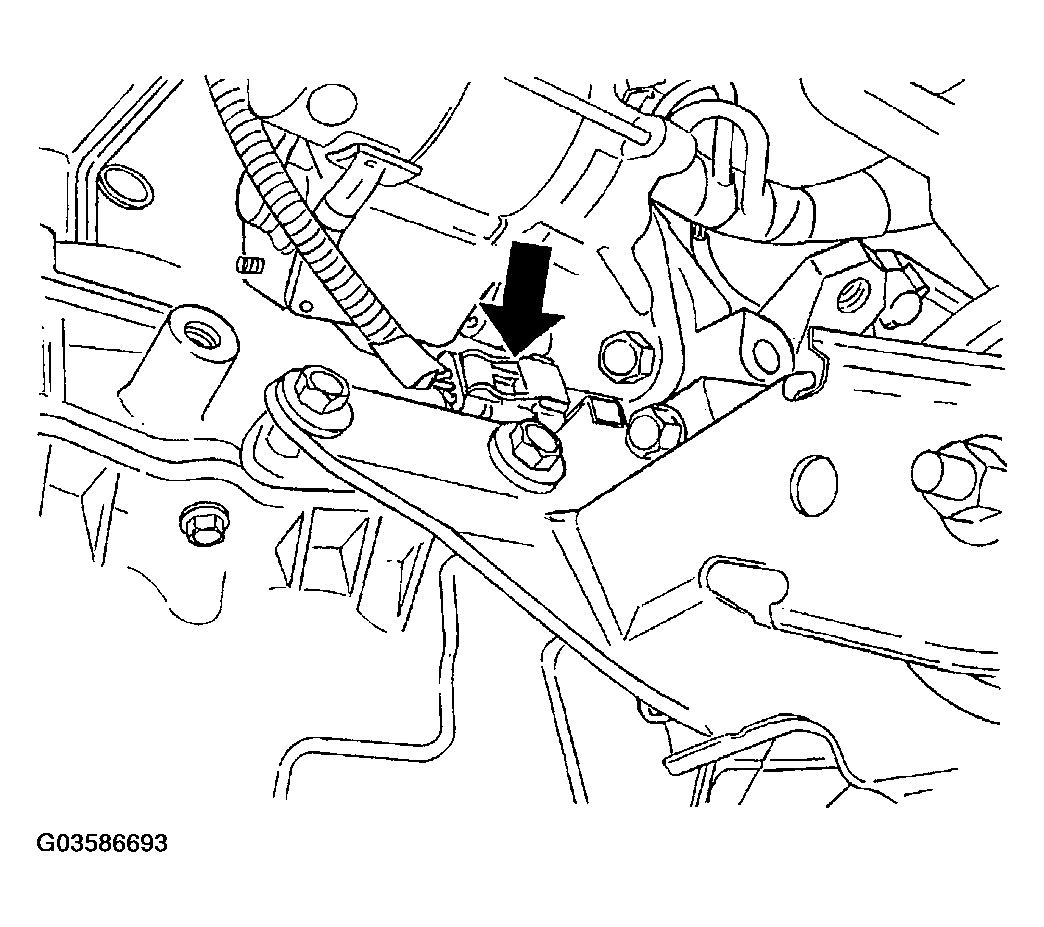

    Fig 1: Identifying Crankshaft Sensor 2.4L
    G03586693Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove crankshaft sensor bolt (Fig 2).

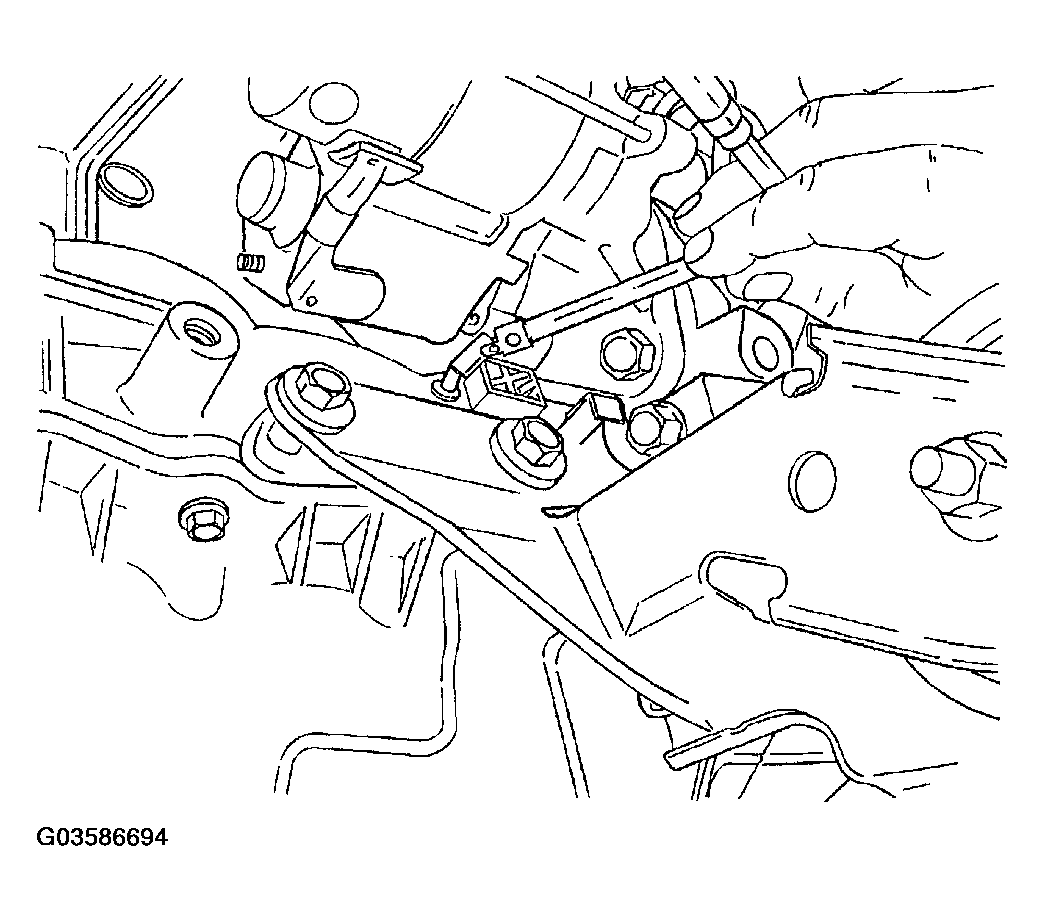

    Fig 2: Removing Crankshaft Position Sensor Bolt 2.4L
    G03586694Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the crankshaft sensor.
