Crankshaft Position Sensor: Description

The 2.4L crankshaft sensor is located on the rear of the engine near the accessory drive belt (Fig 1). The 3.3/3.8L crankshaft sensor is located on the rear of the transmission housing, above the differential housing (Fig 2). The bottom of the sensor is positioned next to the drive plate.

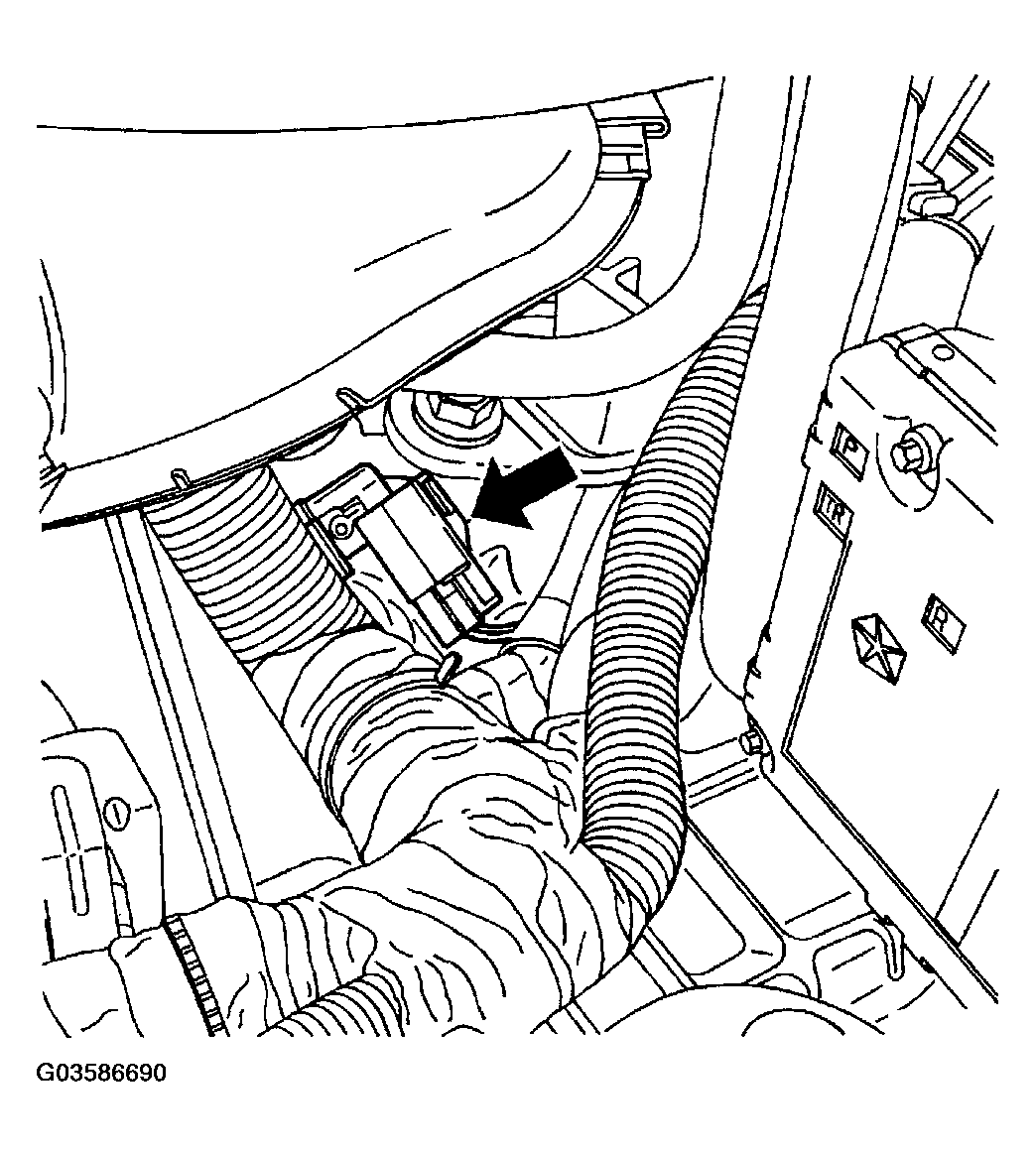

Fig 1: Identifying Crankshaft Sensor 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

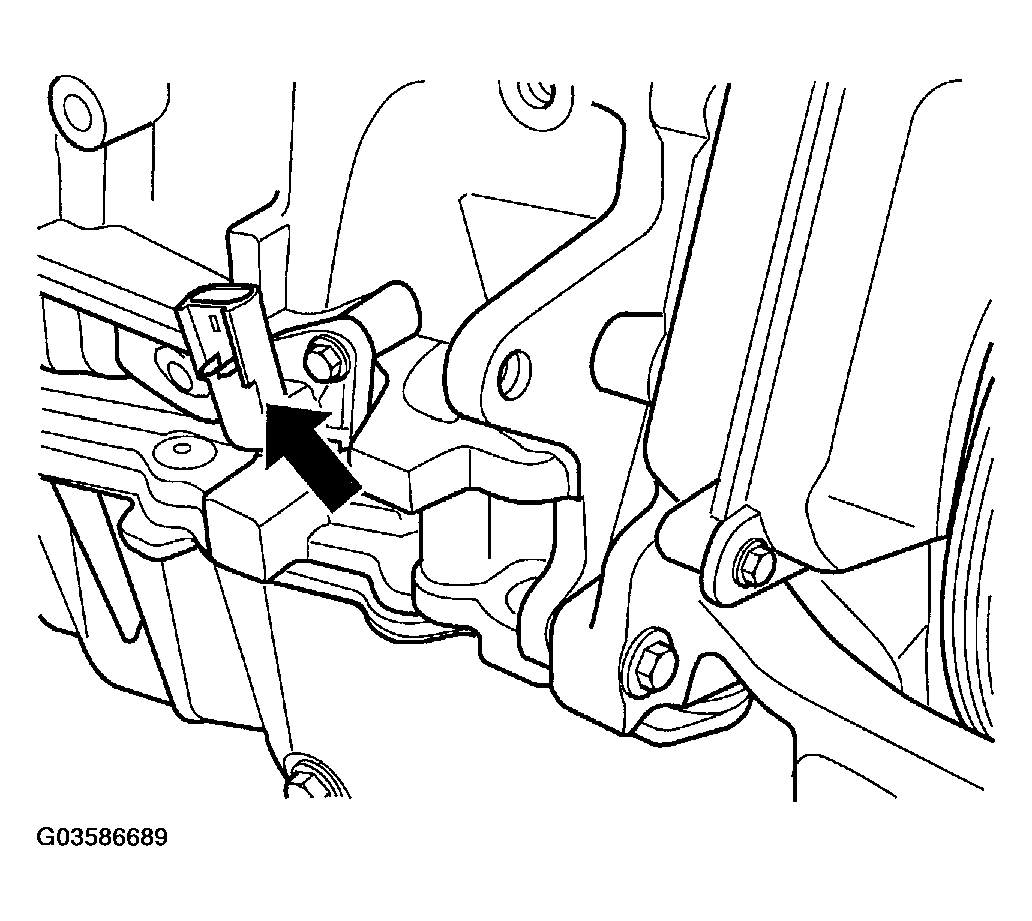

Fig 2: Identifying Crankshaft Sensor 3.3/3.8L

Courtesy of DAIMLERCHRYSLER CORP.
