Battery Tray: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the battery from the vehicle. Refer to BATTERY  .
  3. Remove the battery tray retaining fasteners (Fig 1 ).

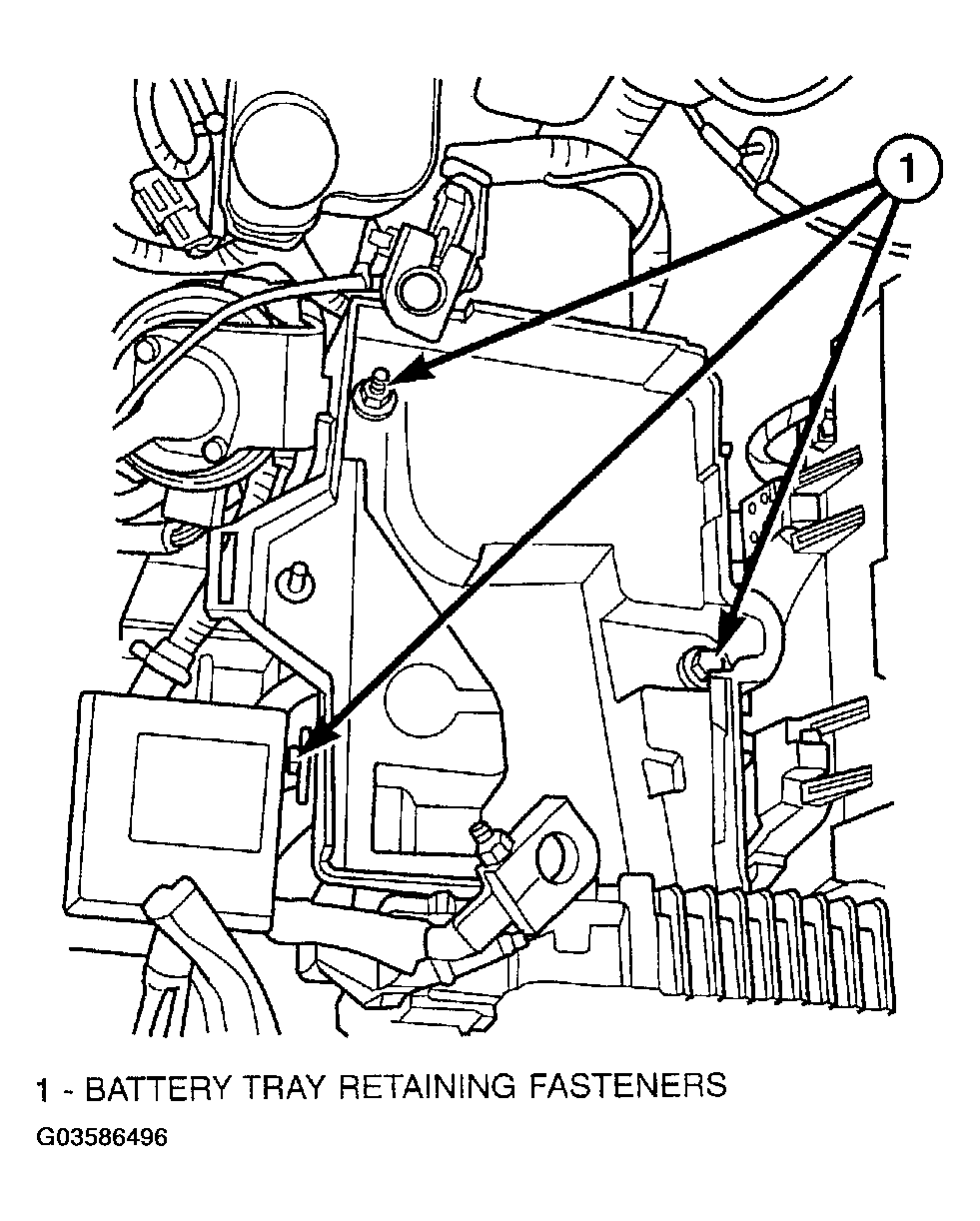

    Fig 1: Identifying Battery Tray Position & Orientation
    G03586496Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull battery tray up far enough to disconnect the engine vacuum harness hose from the battery tray mounted, vacuum reservoir.
  5. Remove the battery tray from the vehicle.
