Battery Tray: Description
The battery is mounted in a molded plastic battery tray and support unit located in the left front corner of the engine compartment. The battery tray and support unit is secured with two nuts, one is located directly under the battery and the other is located on the right side of the tray which also serves as a coolant bottle neck retaining bolt. An additional bolt is located directly under the battery.

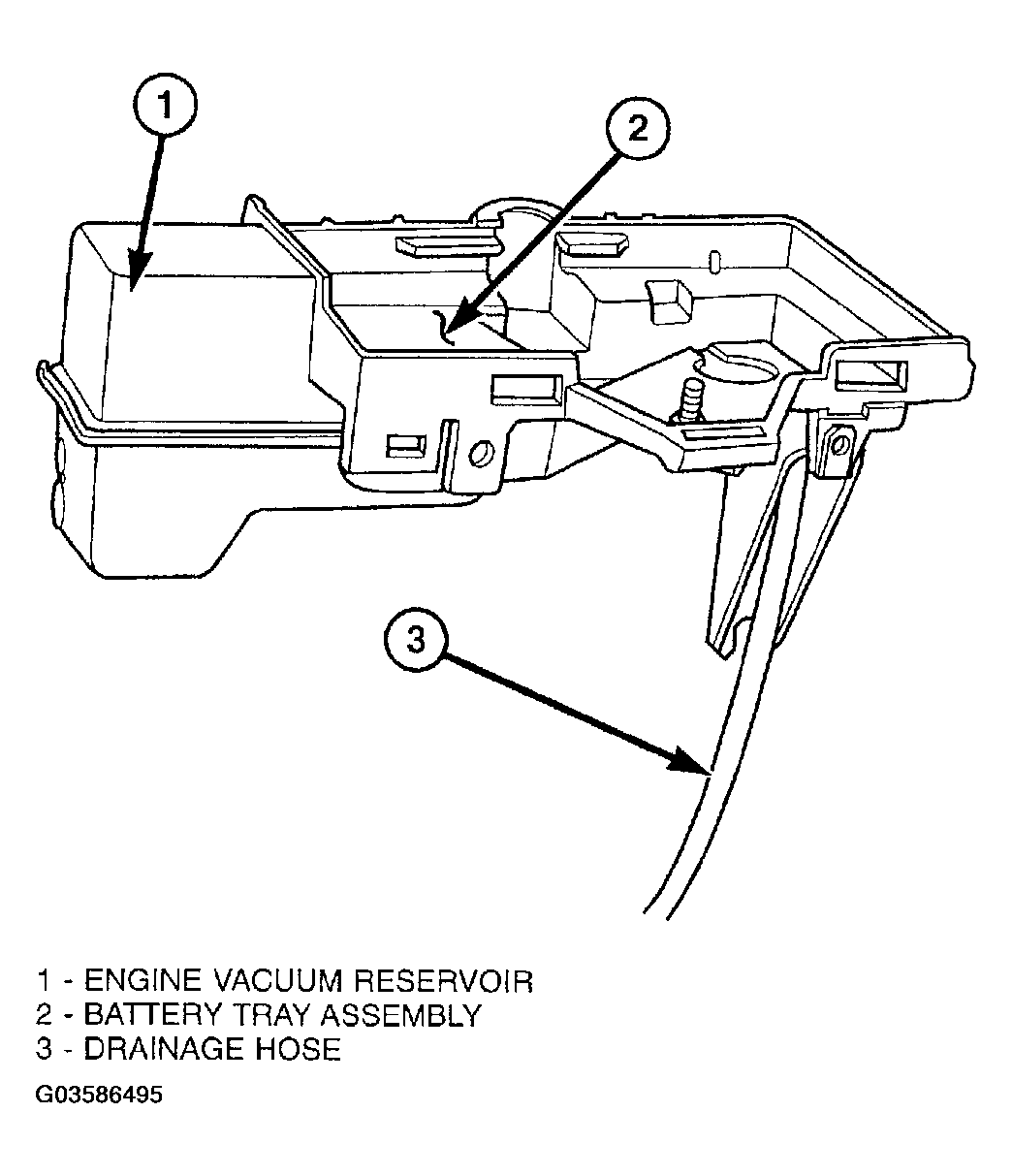

The battery tray and support unit also includes a engine vacuum reservoir, located in the rear of the unit (Fig 1 ). And a drainage hose, located in the front of the unit (Fig 1 ).
