Diagnosis And Testing - Remote Switch
- Remove power mirror switch. (Refer to REMOVAL
).
- Disconnect wiring harness at switch connector.

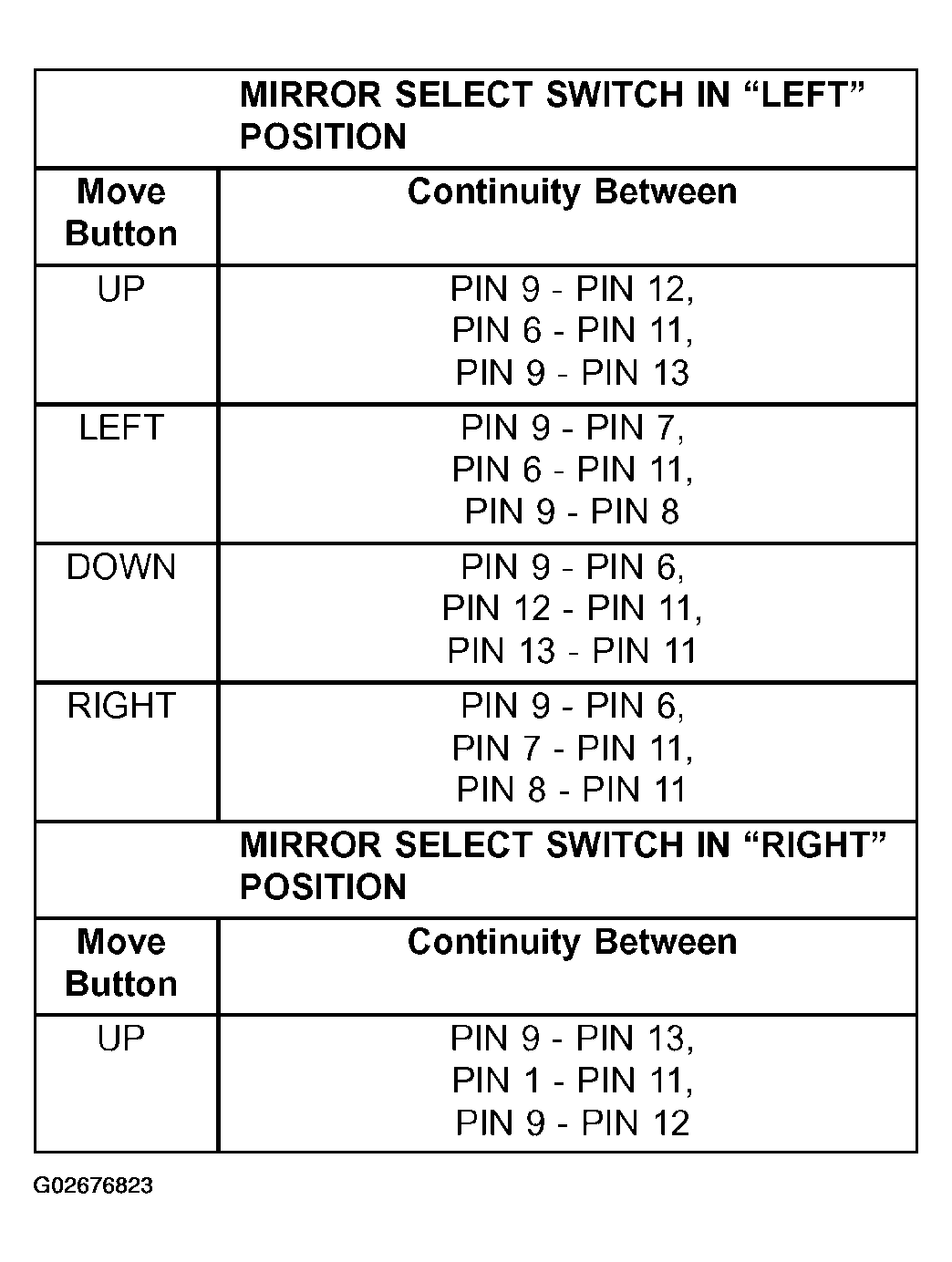

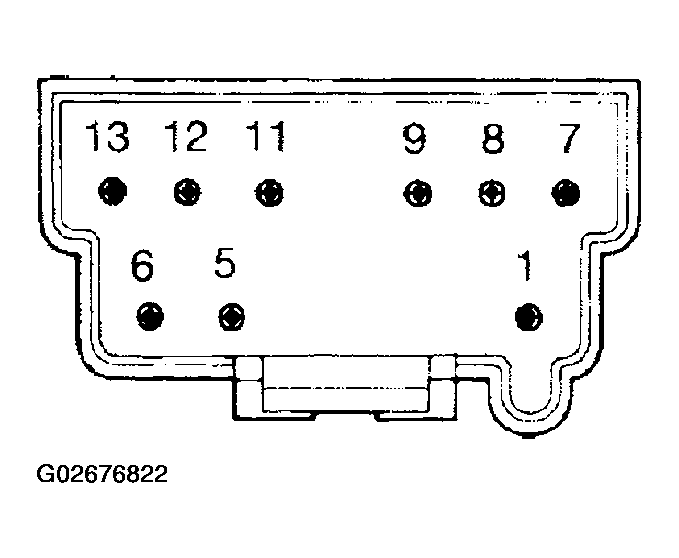

- Using a ohmmeter, test for continuity between the terminals of the switch (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.

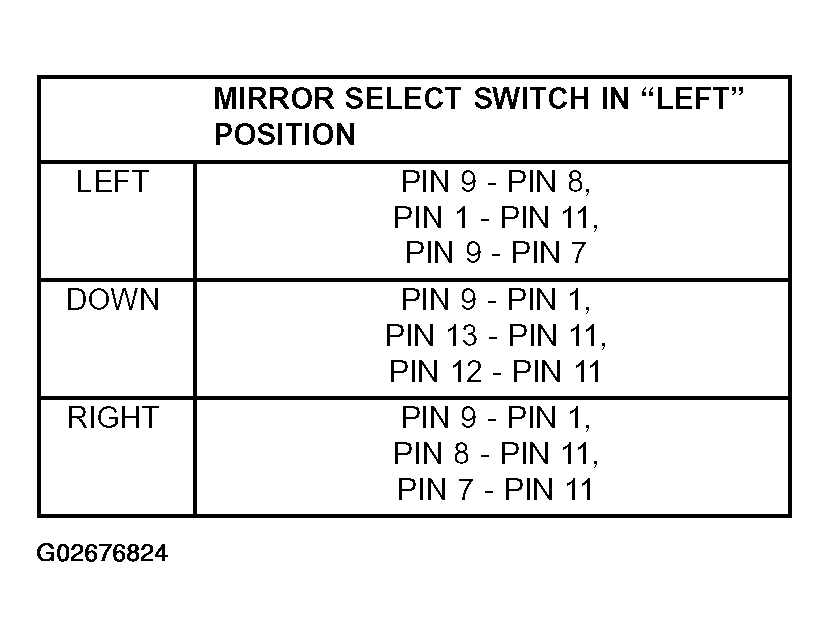

- If results shown in the table are not obtained, replace the switch.
