Schematic Diagrams

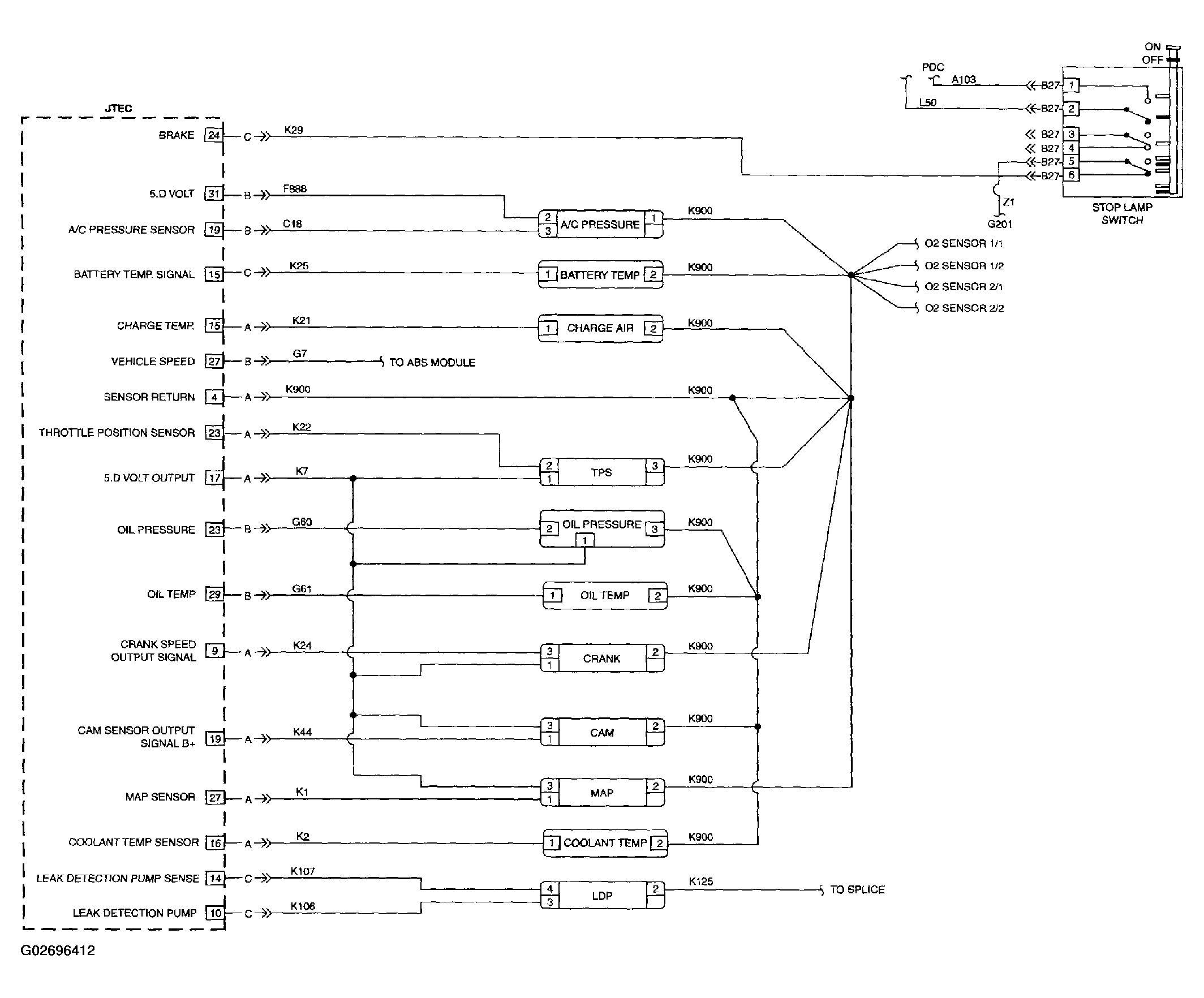

Fig 1: Powertrain Schematic Diagrams (1 Of 3)
G02696412Courtesy of DAIMLERCHRYSLER CORP.

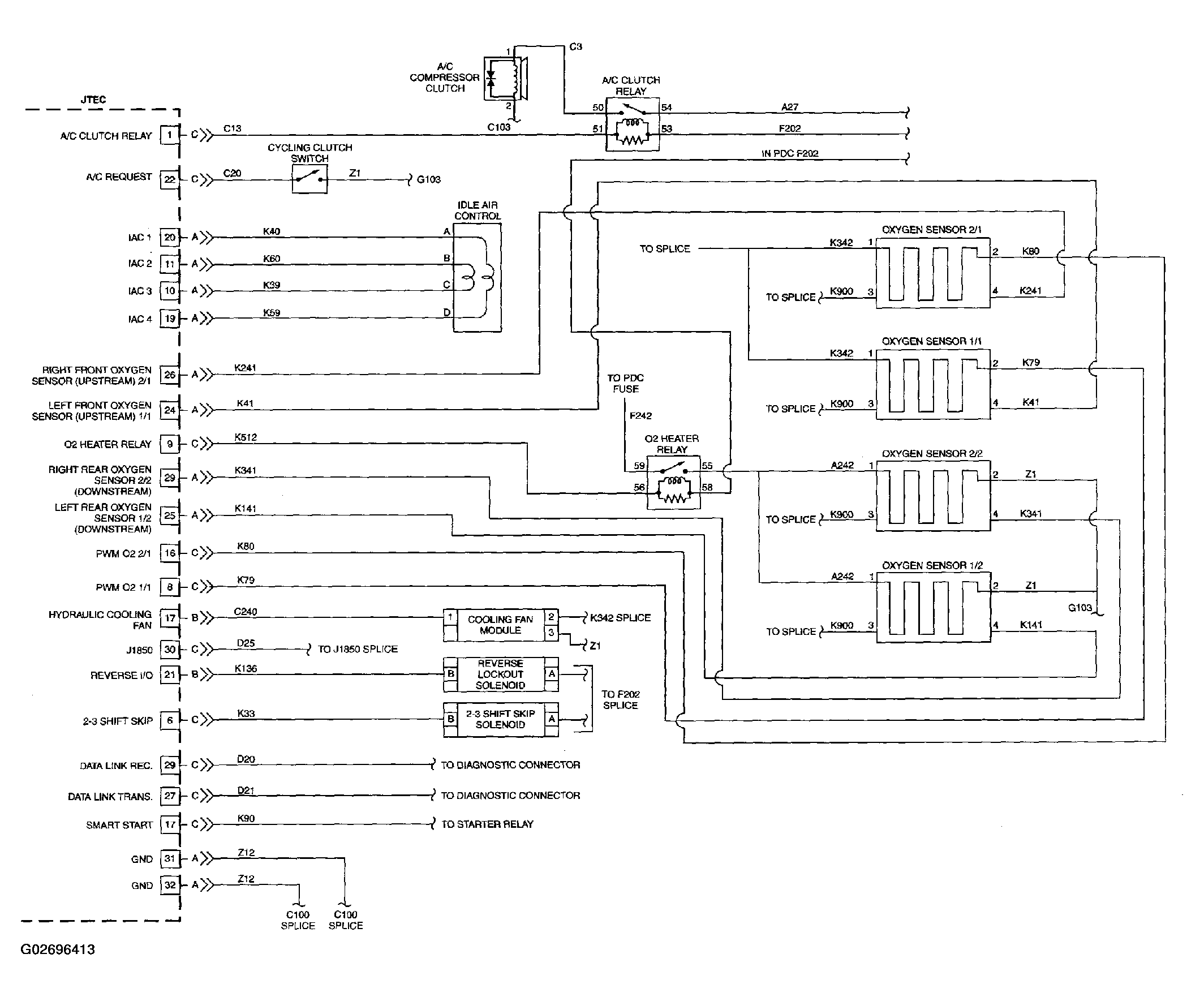

Fig 2: Powertrain Schematic Diagrams (2 Of 3)
G02696413Courtesy of DAIMLERCHRYSLER CORP.

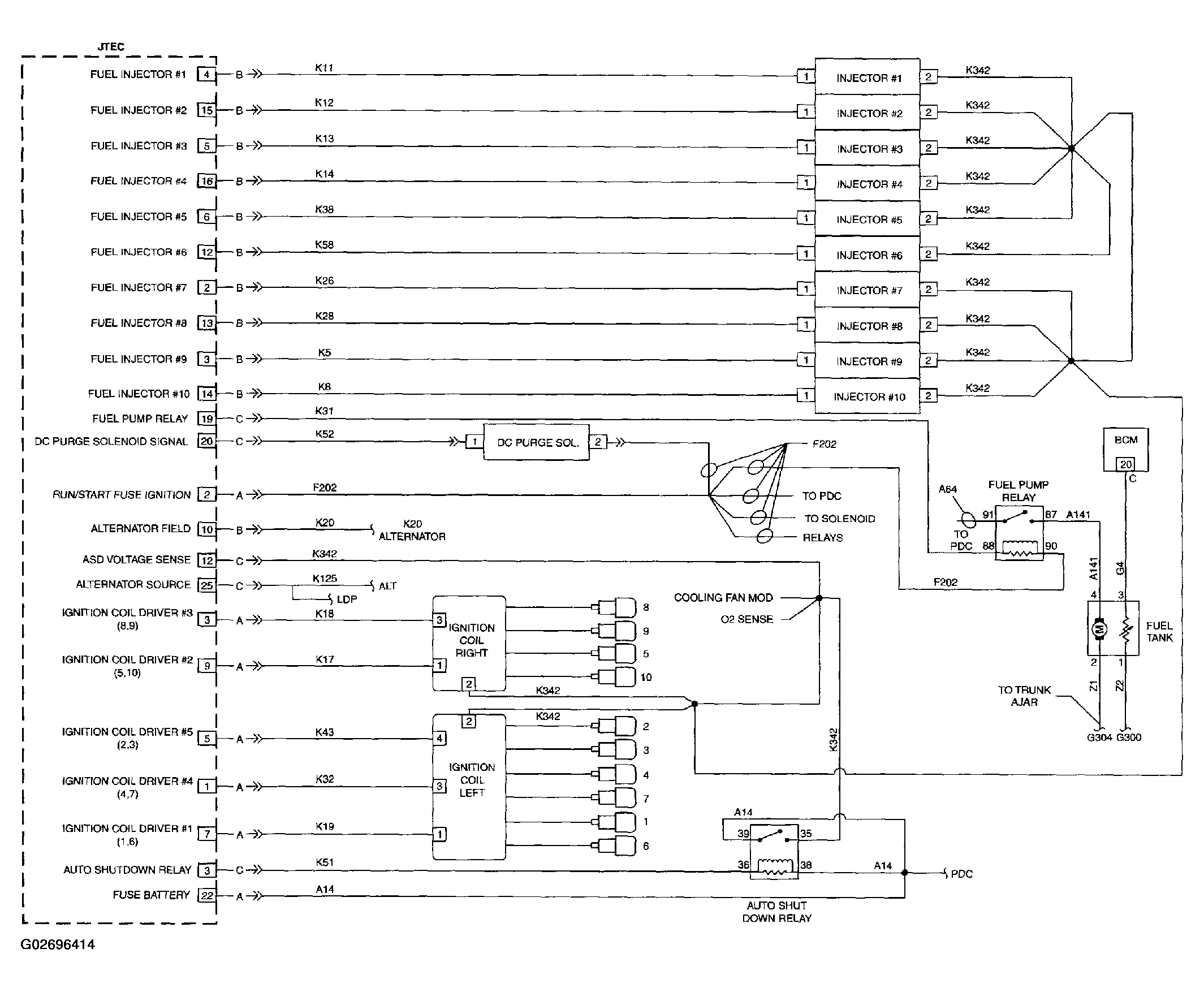

Fig 3: Powertrain Schematic Diagrams (3 Of 3)
G02696414Courtesy of DAIMLERCHRYSLER CORP.
