Connector PINOUTS

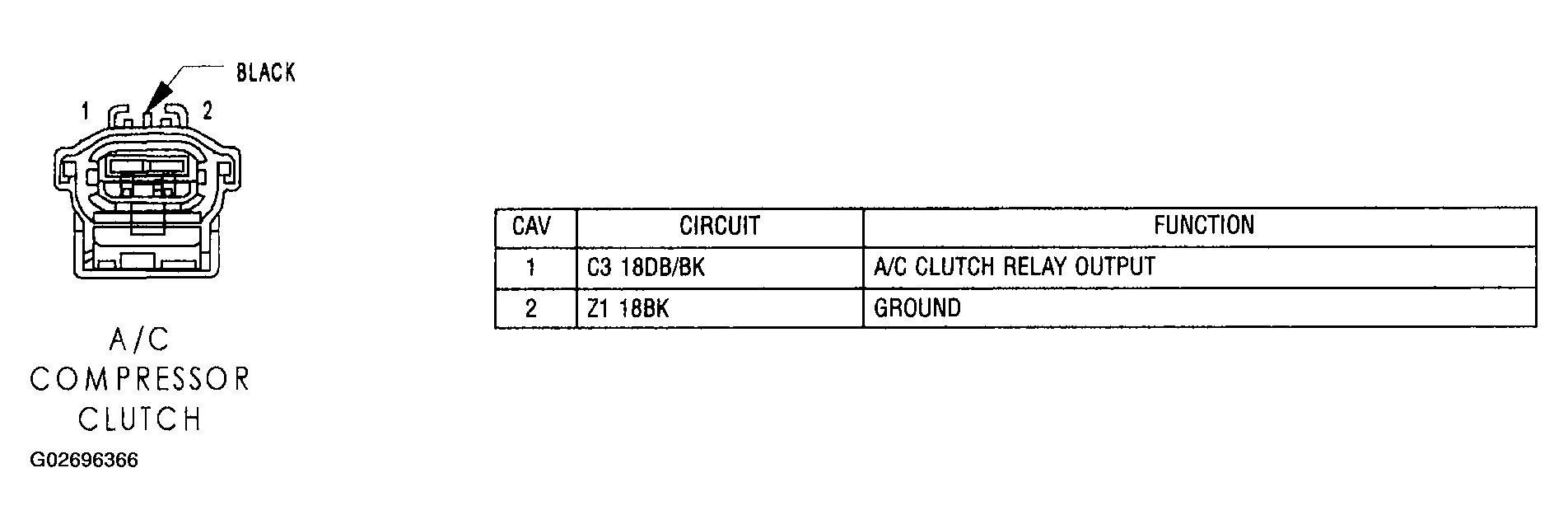

Fig 1: Identifying A/C Compressor Clutch Connector Terminals
G02696366Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Identifying A/C Low Pressure Switch Terminals
G02696367Courtesy of DAIMLERCHRYSLER CORP.

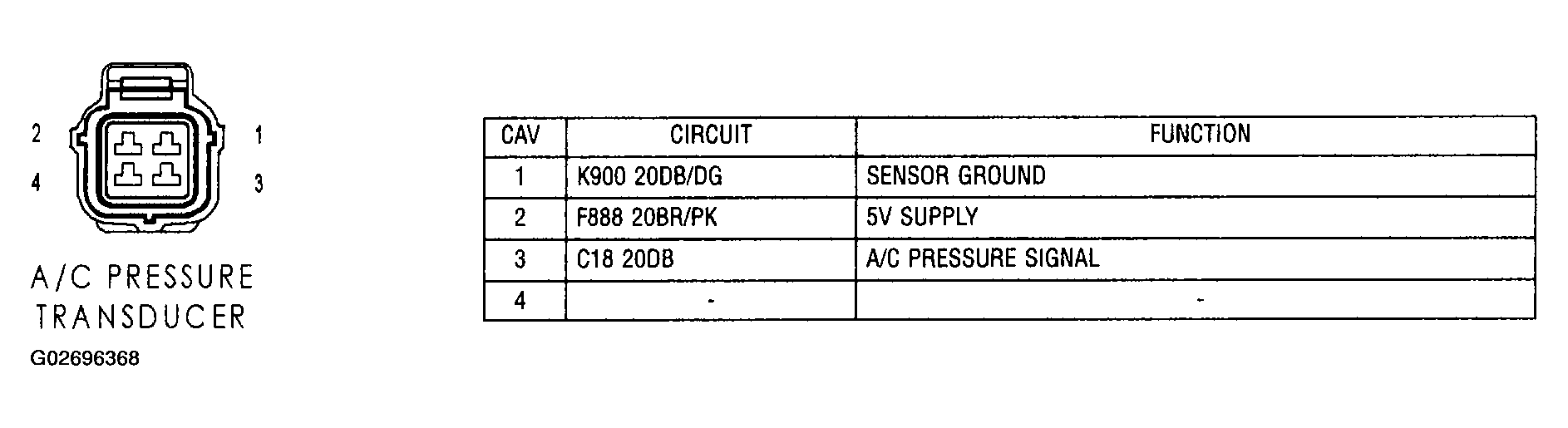

Fig 3: Identifying A/C Pressure Transducer Terminals
G02696368Courtesy of DAIMLERCHRYSLER CORP.

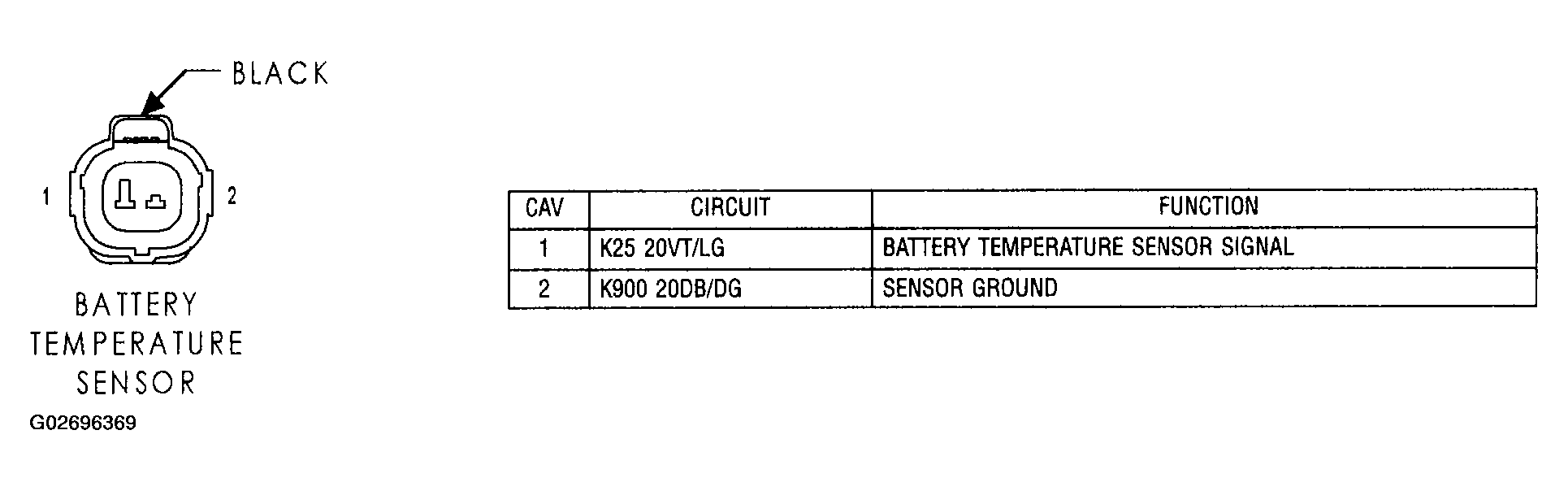

Fig 4: Identifying Battery Temperature Sensor Terminals
G02696369Courtesy of DAIMLERCHRYSLER CORP.

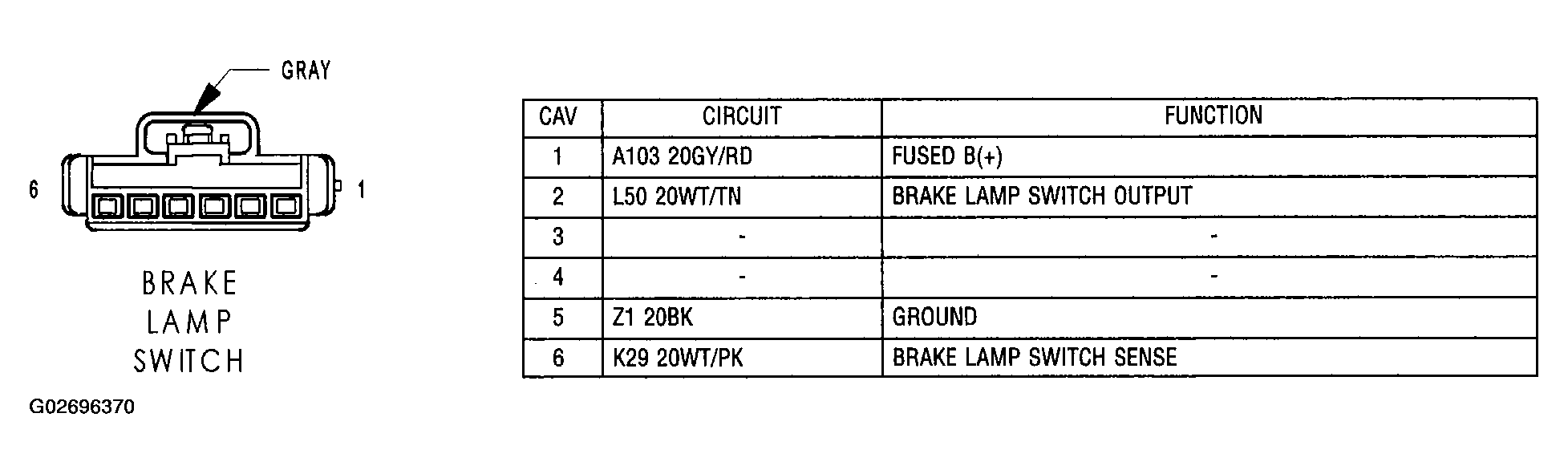

Fig 5: Identifying Brake Lamp Switch Terminals
G02696370Courtesy of DAIMLERCHRYSLER CORP.

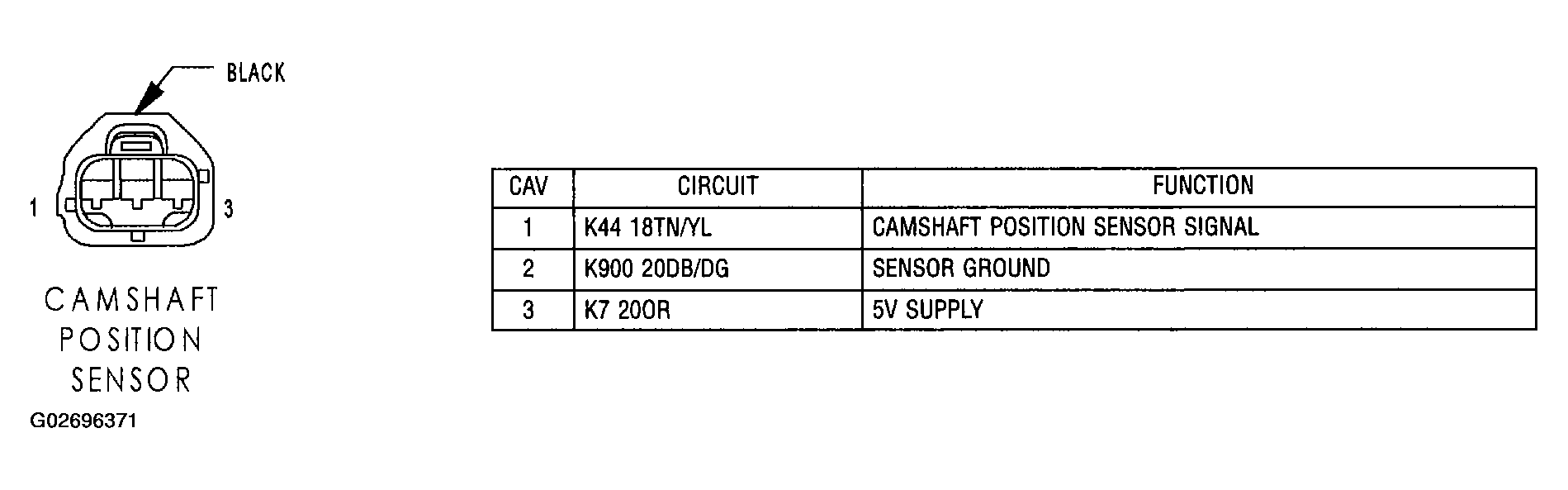

Fig 6: Identifying Camshaft Position Sensor Terminals
G02696371Courtesy of DAIMLERCHRYSLER CORP.

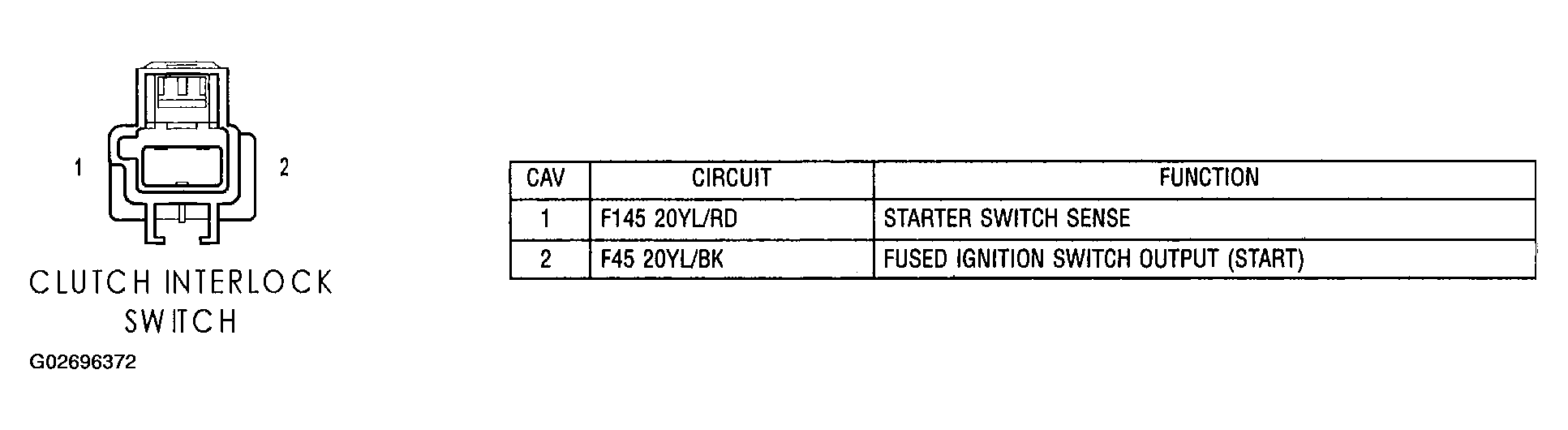

Fig 7: Identifying Clutch Interlock Switch Terminals
G02696372Courtesy of DAIMLERCHRYSLER CORP.

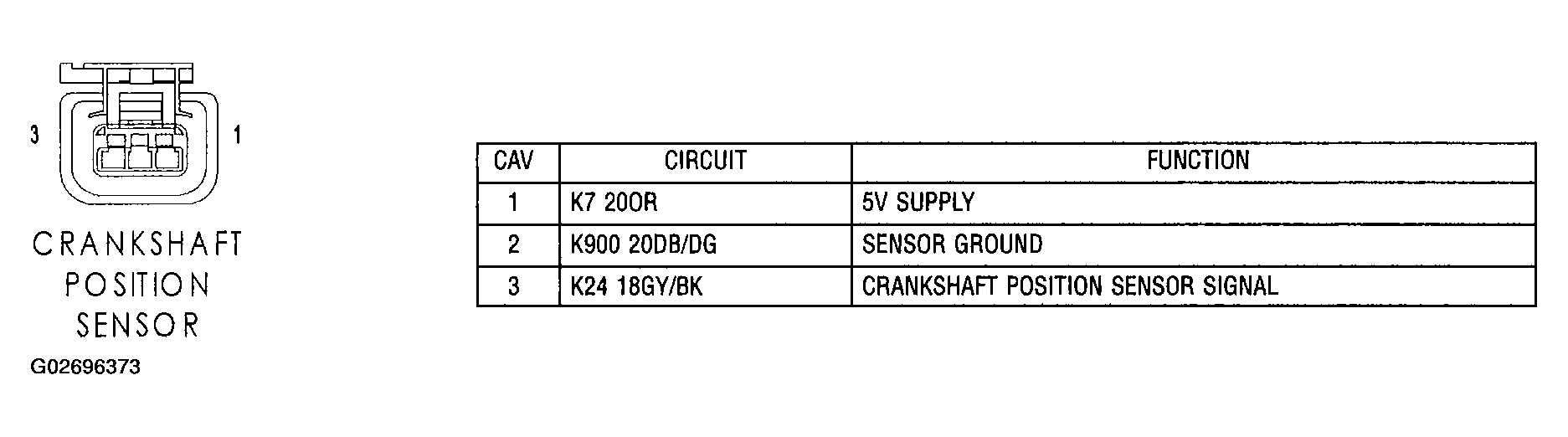

Fig 8: Identifying Crankshaft Position Sensor Terminals
G02696373Courtesy of DAIMLERCHRYSLER CORP.

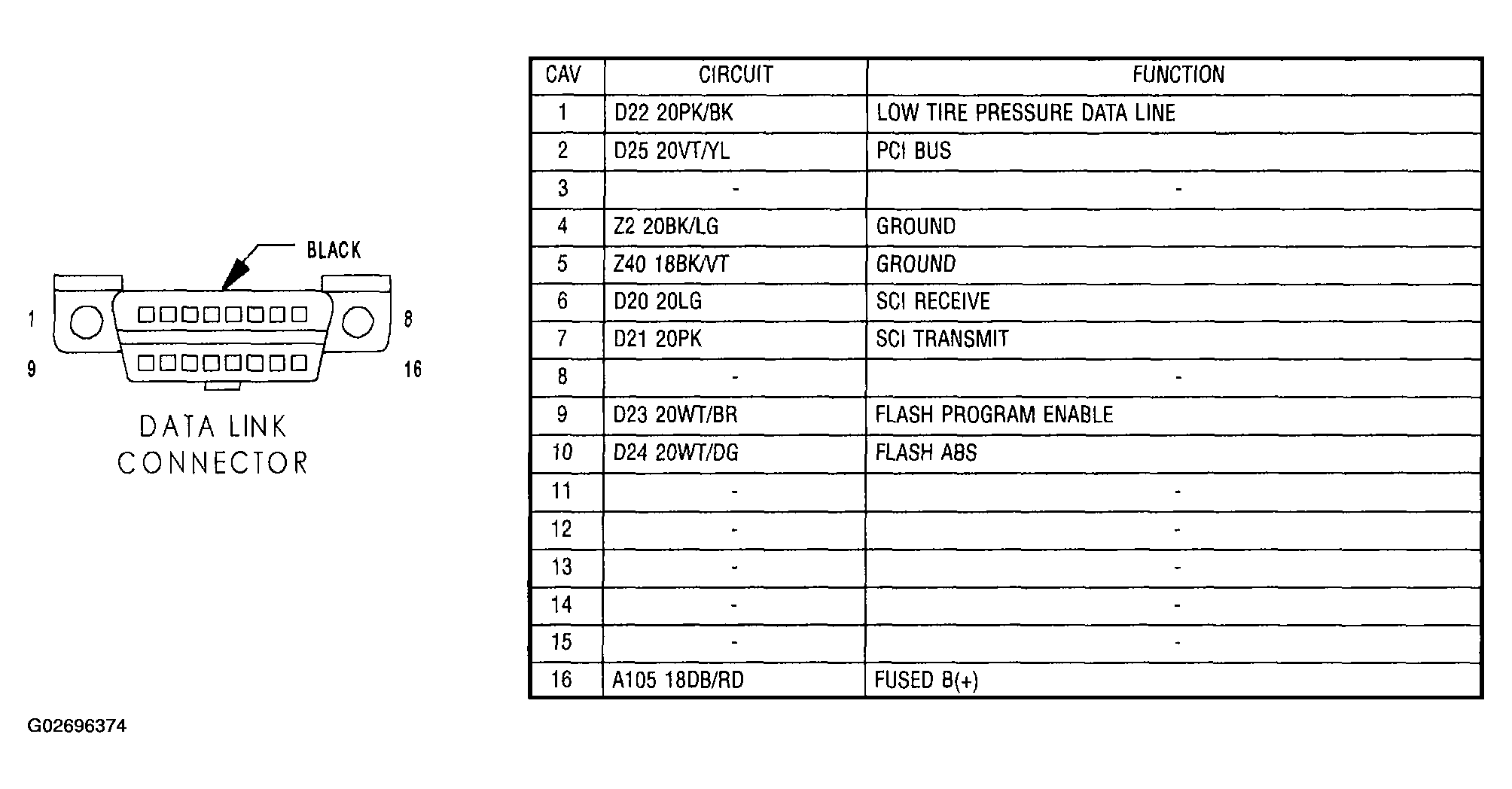

Fig 9: Identifying Data Link Connector Terminals
G02696374Courtesy of DAIMLERCHRYSLER CORP.

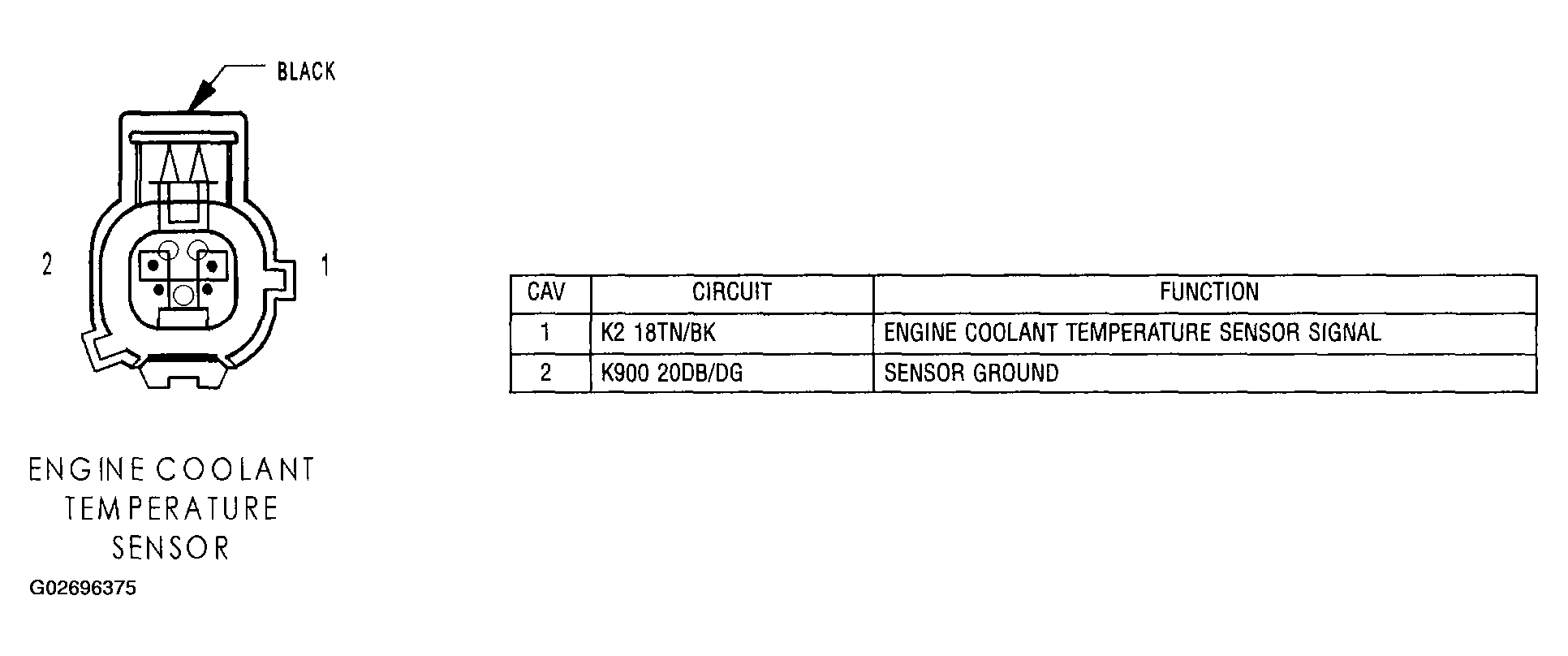

Fig 10: Identifying Engine Coolant Temperature Sensor Terminals
G02696375Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Identifying EVAP/Purge Solenoid Terminals
G02696376Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: Identifying Fuel Injector No. 1 Terminals
G02696377Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Identifying Fuel Injector No. 2 Terminals
G02696378Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: Identifying Fuel Injector No. 3 Terminals
G02696379Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: Identifying Fuel Injector NO. 4 Terminals
G02696380Courtesy of DAIMLERCHRYSLER CORP.
Fig 16: Identifying Fuel Injector No. 5 Terminals
G02696381Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Identifying Fuel Injector No. 6 Terminals
G02696382Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: Identifying Fuel Injector No. 7 Terminals
G02696383Courtesy of DAIMLERCHRYSLER CORP.
Fig 19: Identifying Fuel Injector No. 8 Terminals
G02696384Courtesy of DAIMLERCHRYSLER CORP.
Fig 20: Identifying Fuel Injector No. 9 Terminals
G02696385Courtesy of DAIMLERCHRYSLER CORP.
Fig 21: Identifying Fuel Injector No. 10 Terminals
G02696386Courtesy of DAIMLERCHRYSLER CORP.

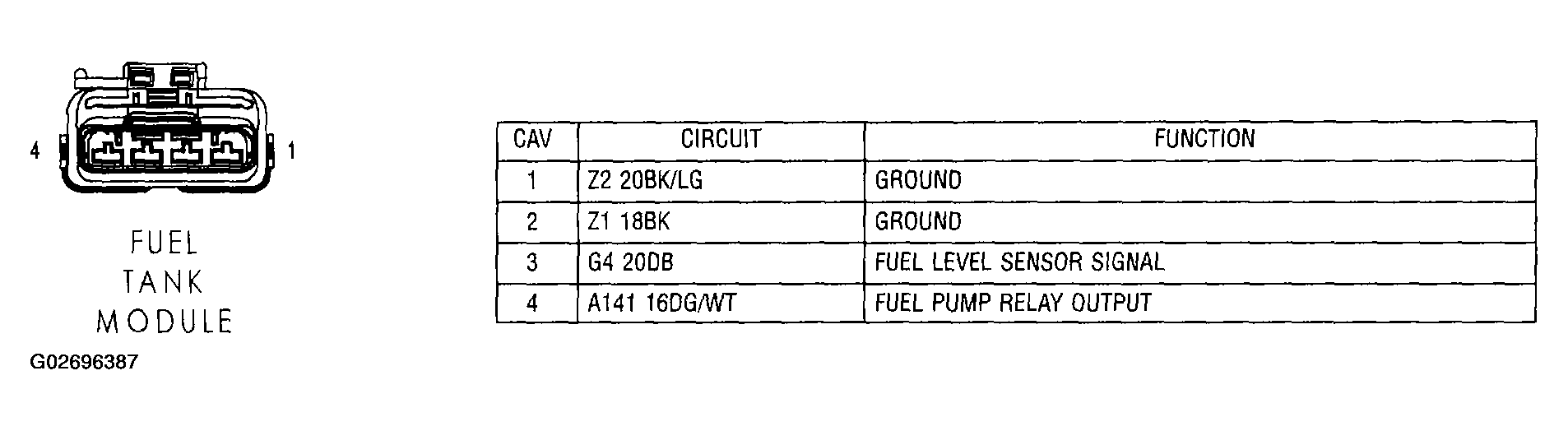

Fig 22: Identifying Fuel Tank Module Terminals
G02696387Courtesy of DAIMLERCHRYSLER CORP.
Fig 23: Identifying Generator Terminals
G02696388Courtesy of DAIMLERCHRYSLER CORP.

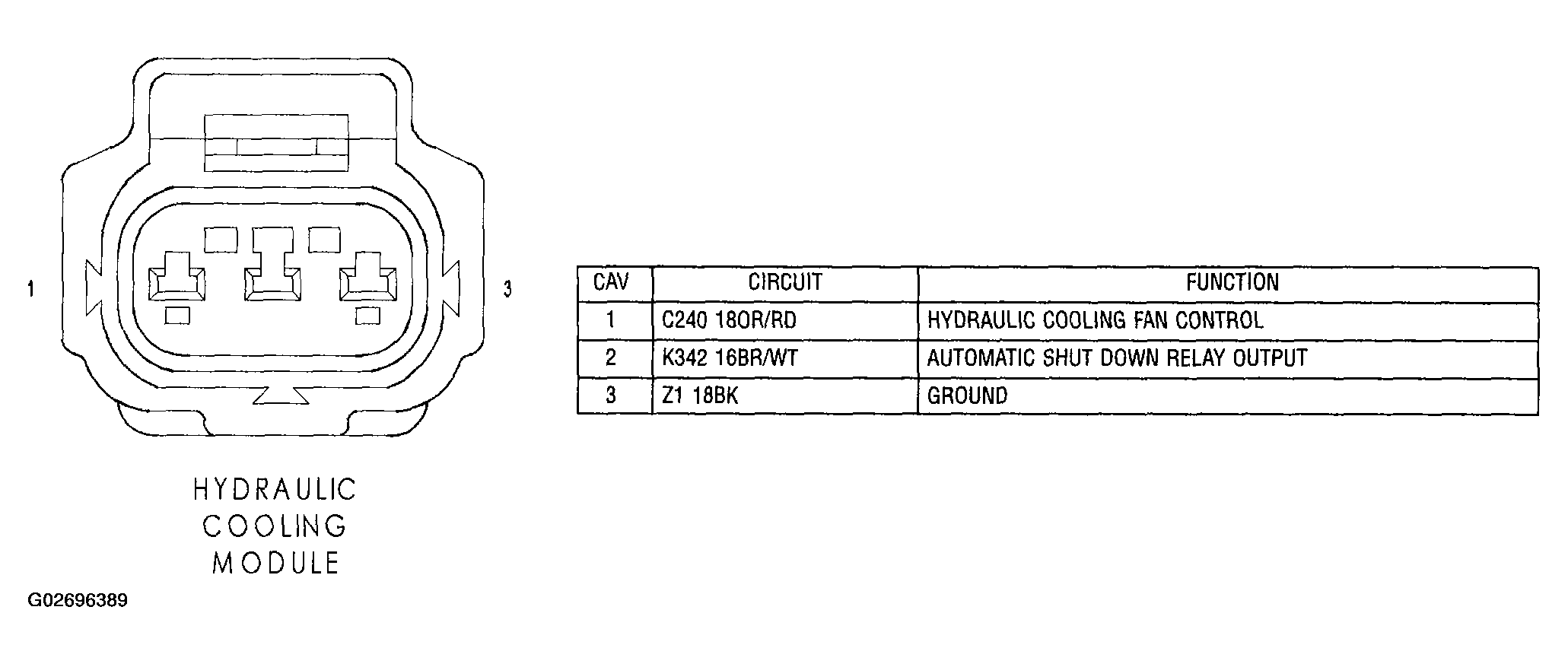

Fig 24: Identifying Hydraulic Cooling Module Terminals
G02696389Courtesy of DAIMLERCHRYSLER CORP.

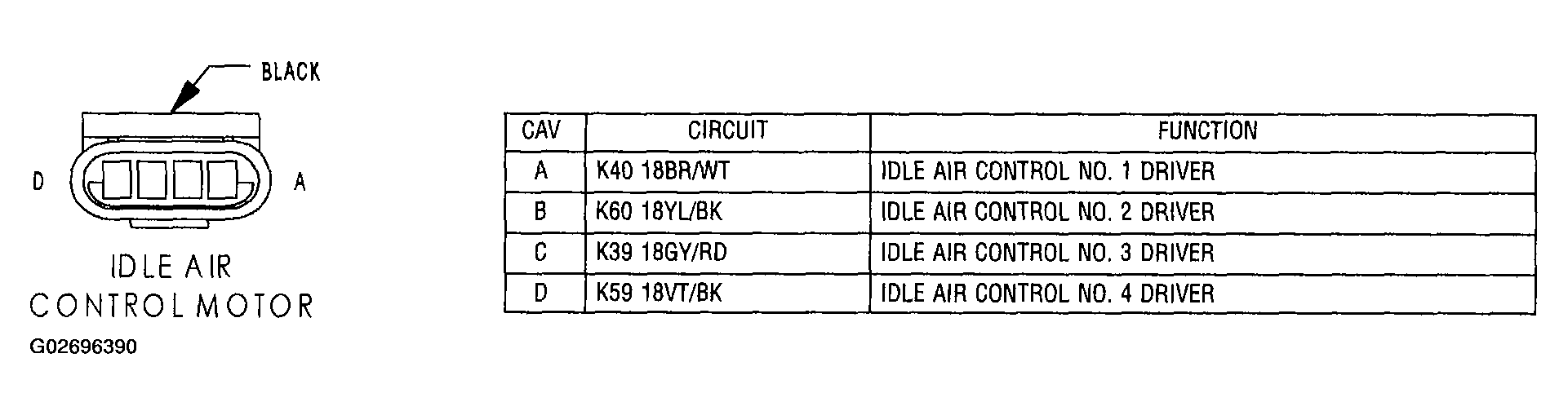

Fig 25: Identifying Idle Air Control Motor Terminals
G02696390Courtesy of DAIMLERCHRYSLER CORP.

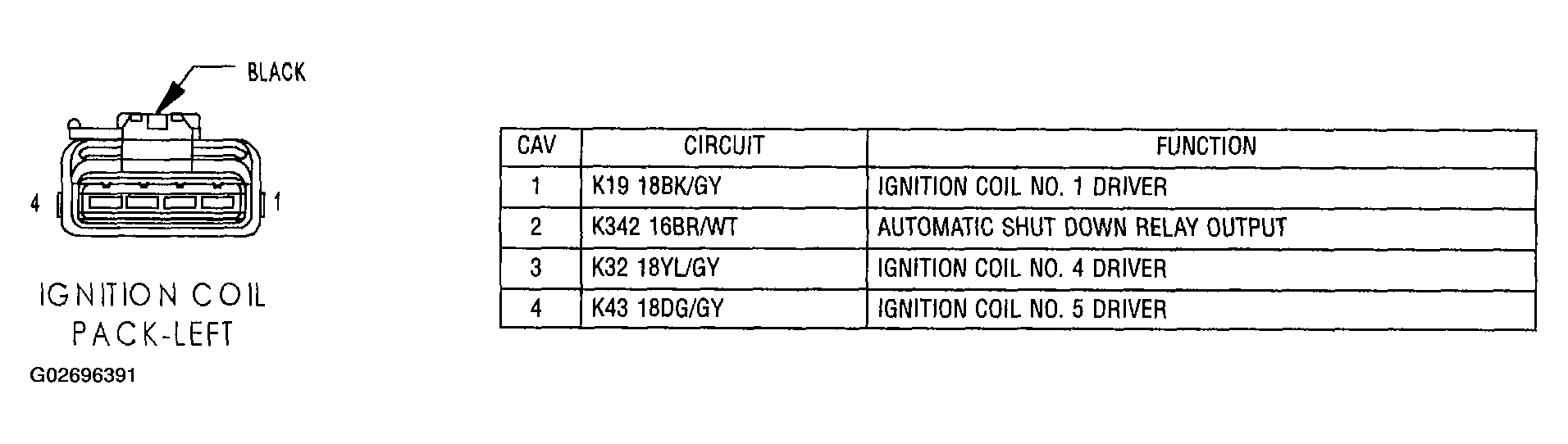

Fig 26: Identifying Ignition Coil Pack-Left Terminals
G02696391Courtesy of DAIMLERCHRYSLER CORP.

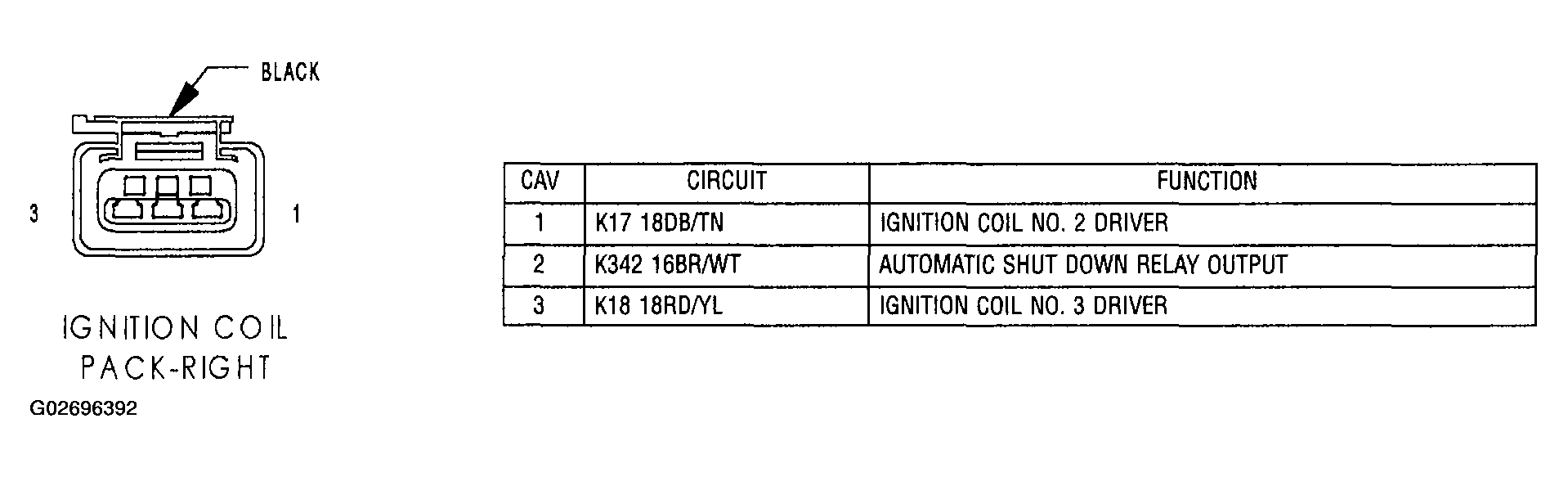

Fig 27: Identifying Ignition Coil Pack-Right Terminals
G02696392Courtesy of DAIMLERCHRYSLER CORP.

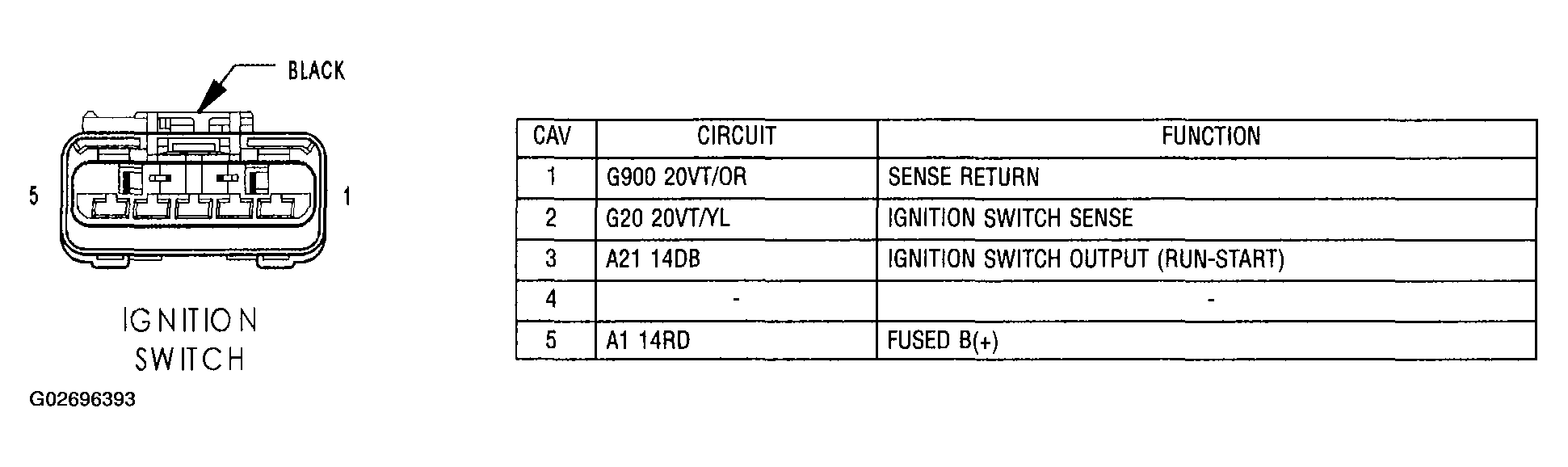

Fig 28: Identifying Ignition Switch Terminals
G02696393Courtesy of DAIMLERCHRYSLER CORP.

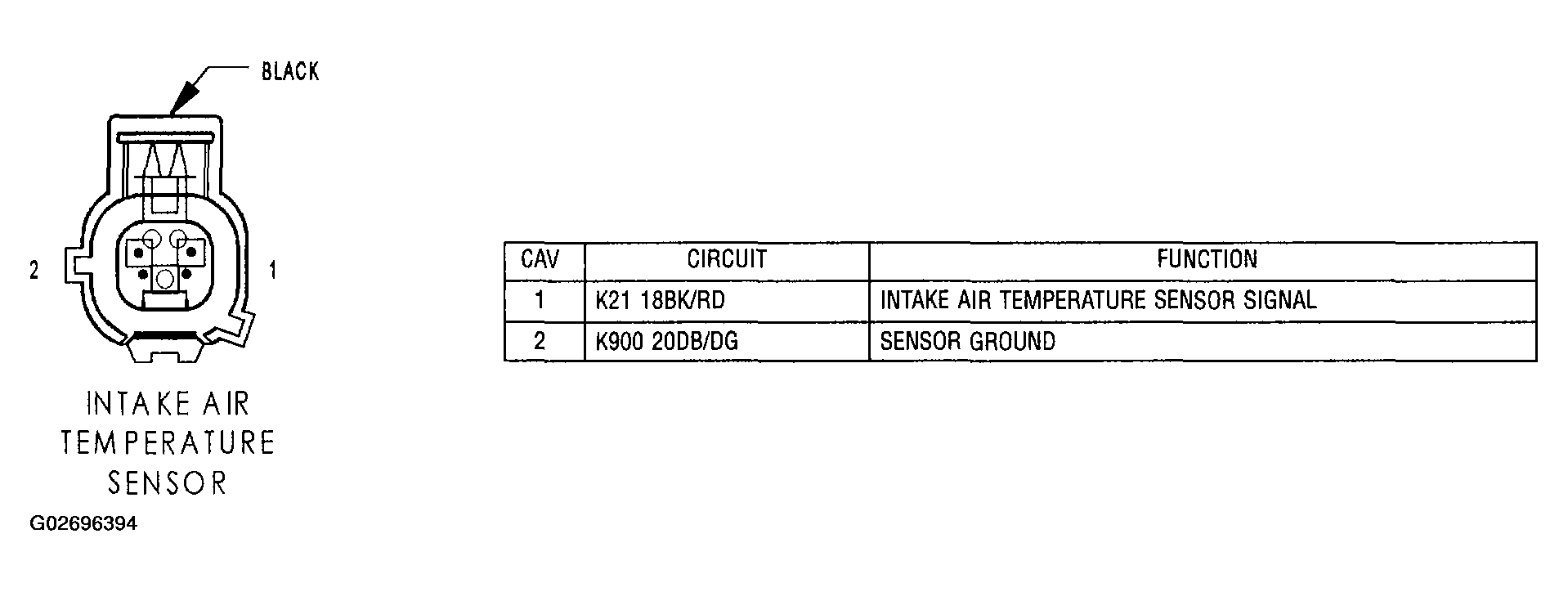

Fig 29: Identifying Intake Air Temperature Sensor Terminals
G02696394Courtesy of DAIMLERCHRYSLER CORP.

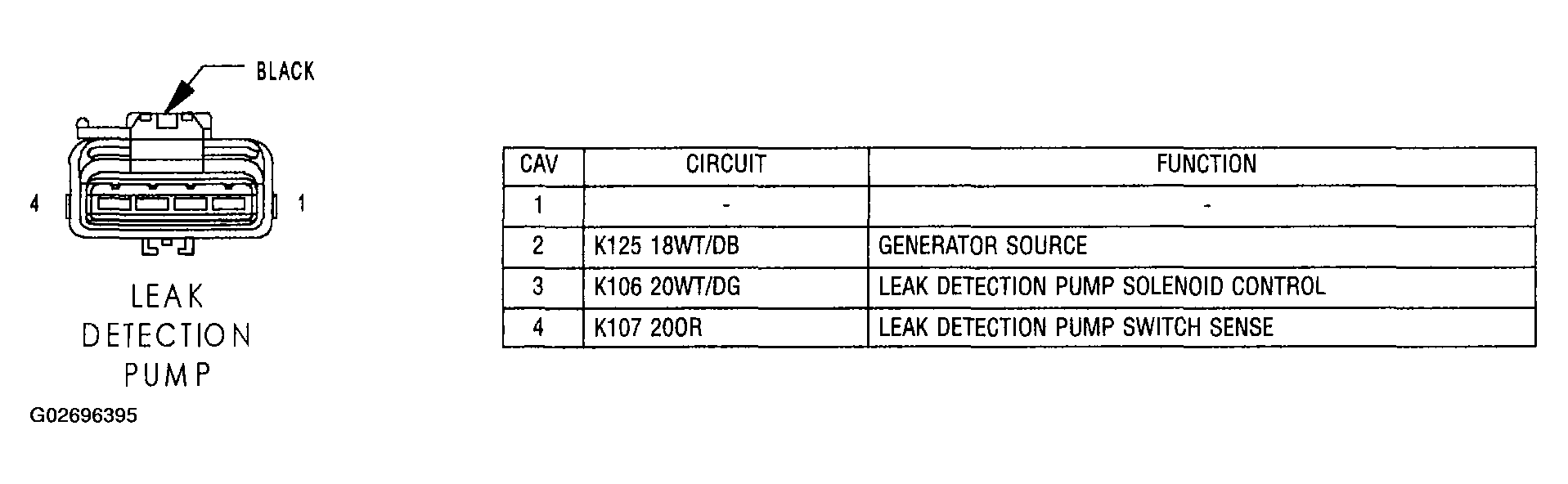

Fig 30: Identifying Leak Detection Pump Terminals
G02696395Courtesy of DAIMLERCHRYSLER CORP.

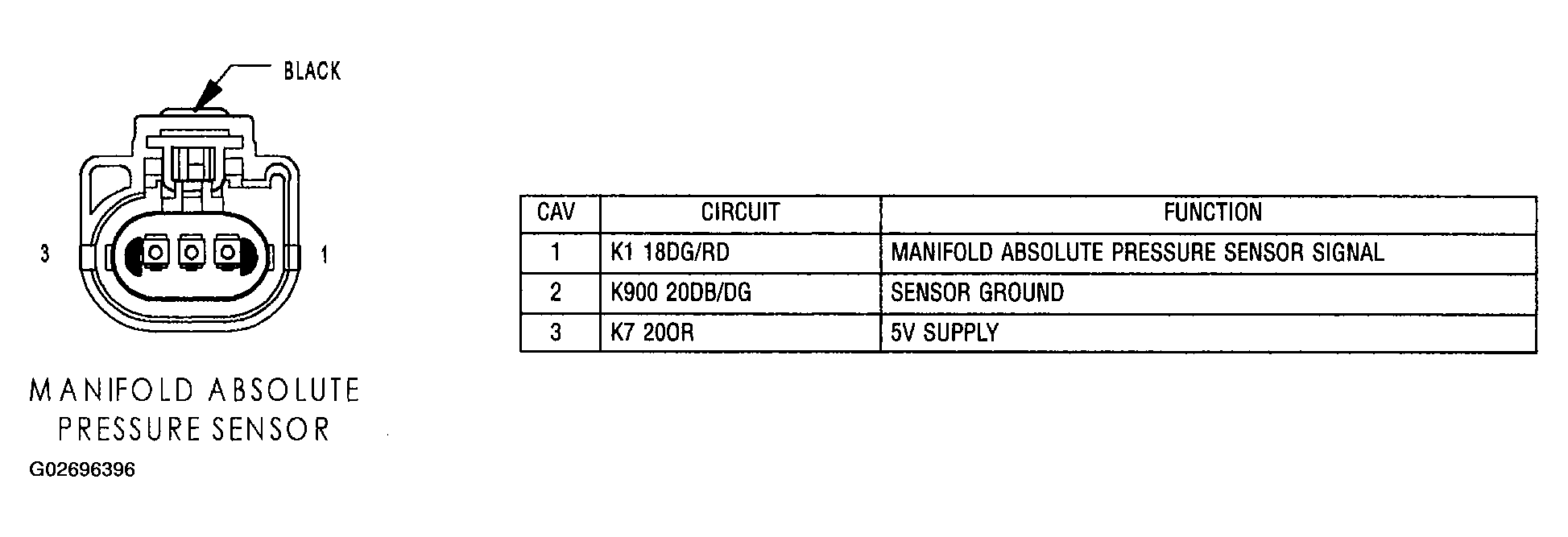

Fig 31: Identifying Manifold Absolute Pressure Sensor Terminals
G02696396Courtesy of DAIMLERCHRYSLER CORP.

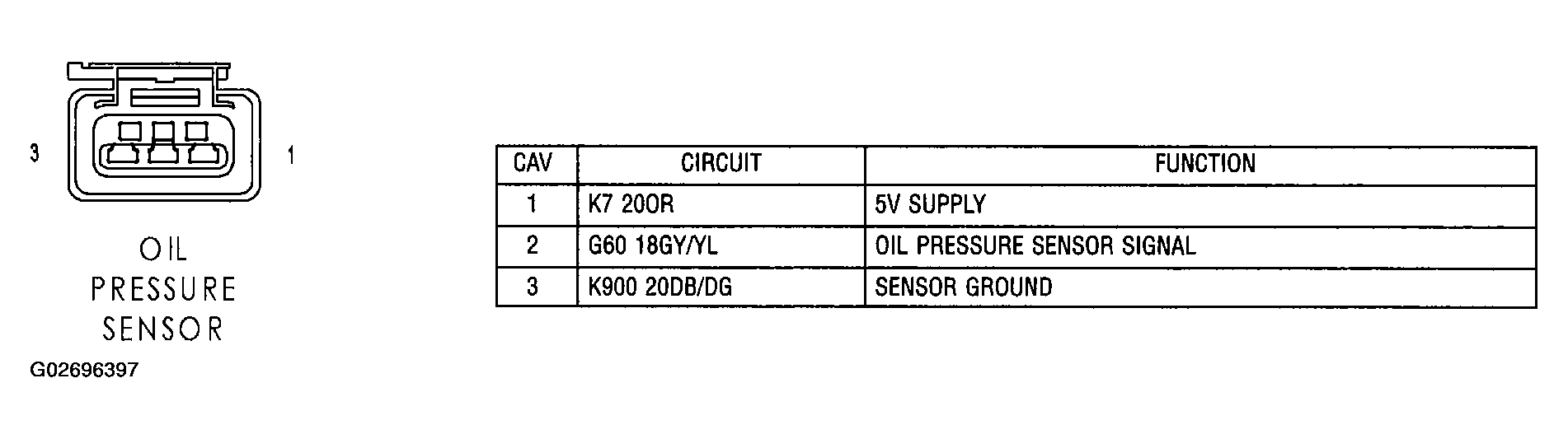

Fig 32: Identifying Oil Pressure Sensor Terminals
G02696397Courtesy of DAIMLERCHRYSLER CORP.

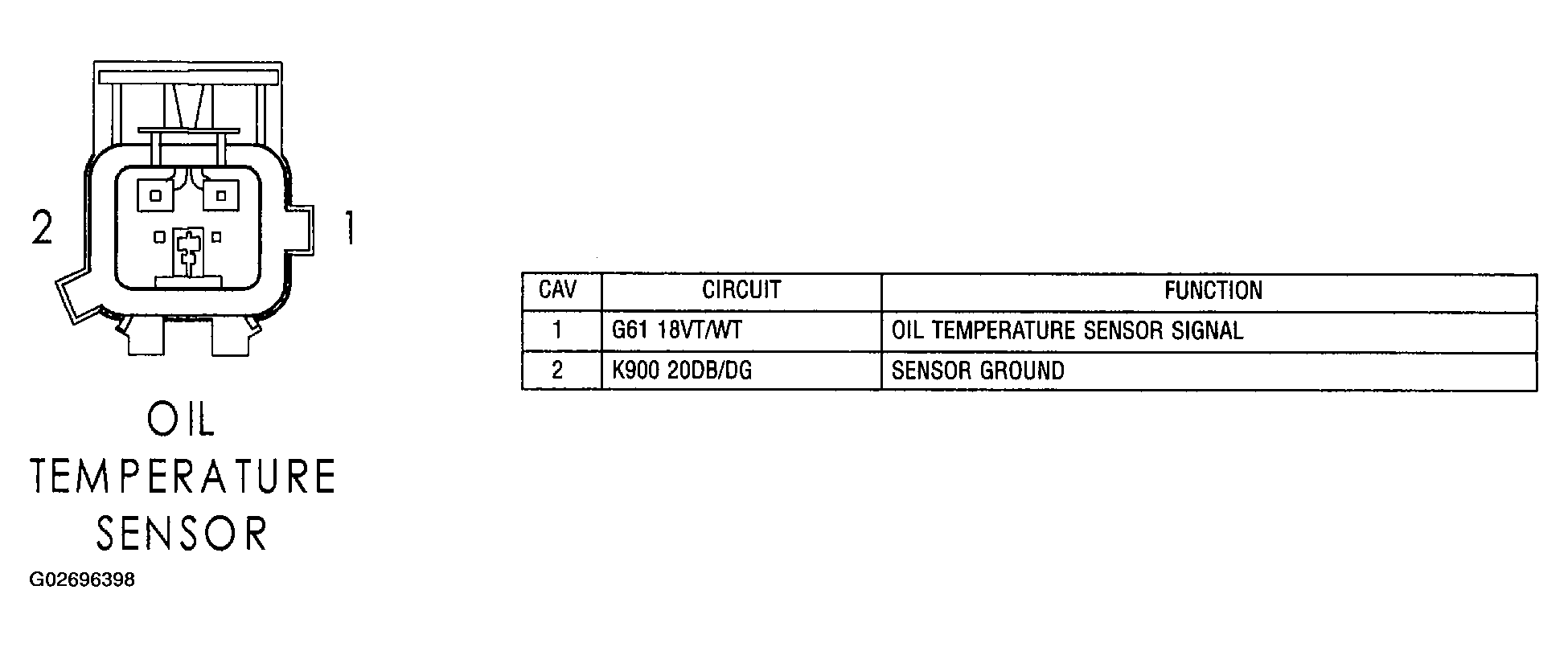

Fig 33: Identifying Oil Temperature Sensor Terminals
G02696398Courtesy of DAIMLERCHRYSLER CORP.

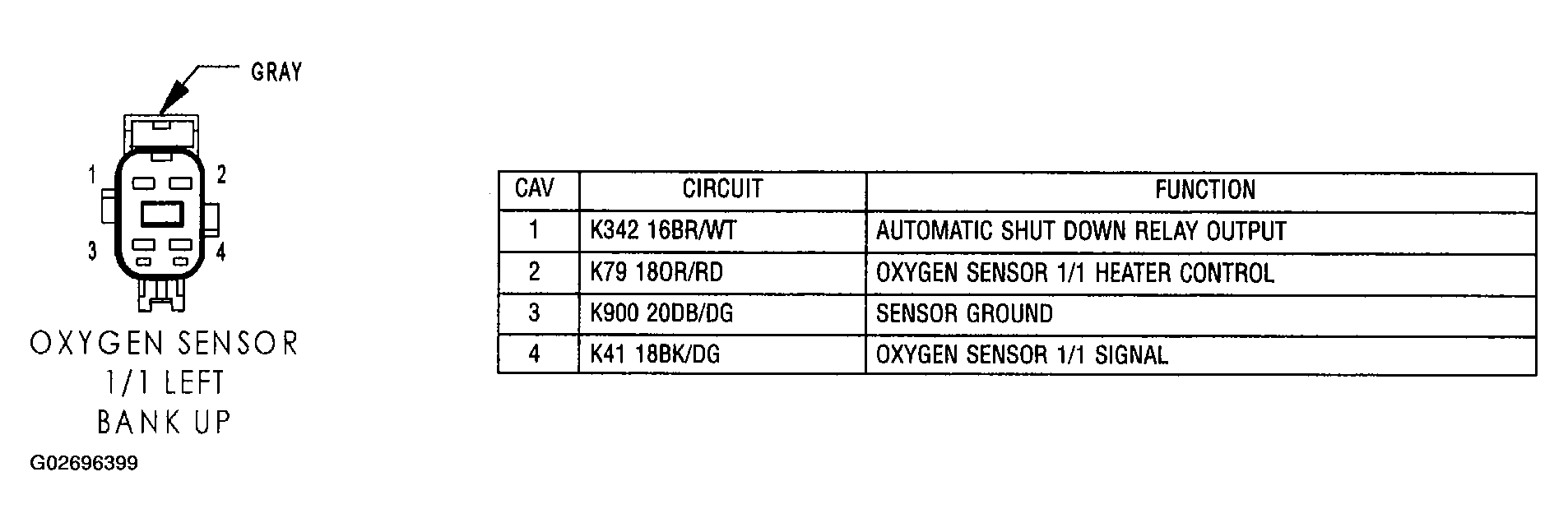

Fig 34: Identifying Oxygen Sensor 1/1 Left Bank Up Terminals
G02696399Courtesy of DAIMLERCHRYSLER CORP.

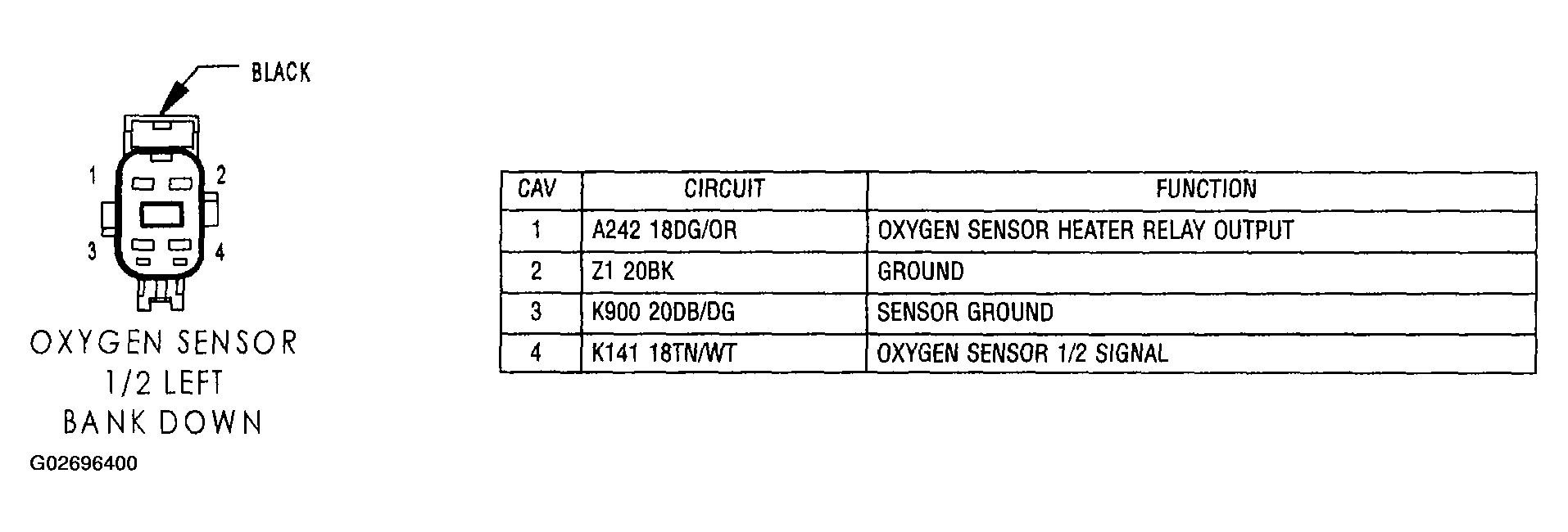

Fig 35: Identifying Oxygen Sensor 1/2 Left Bank Down Terminals
G02696400Courtesy of DAIMLERCHRYSLER CORP.

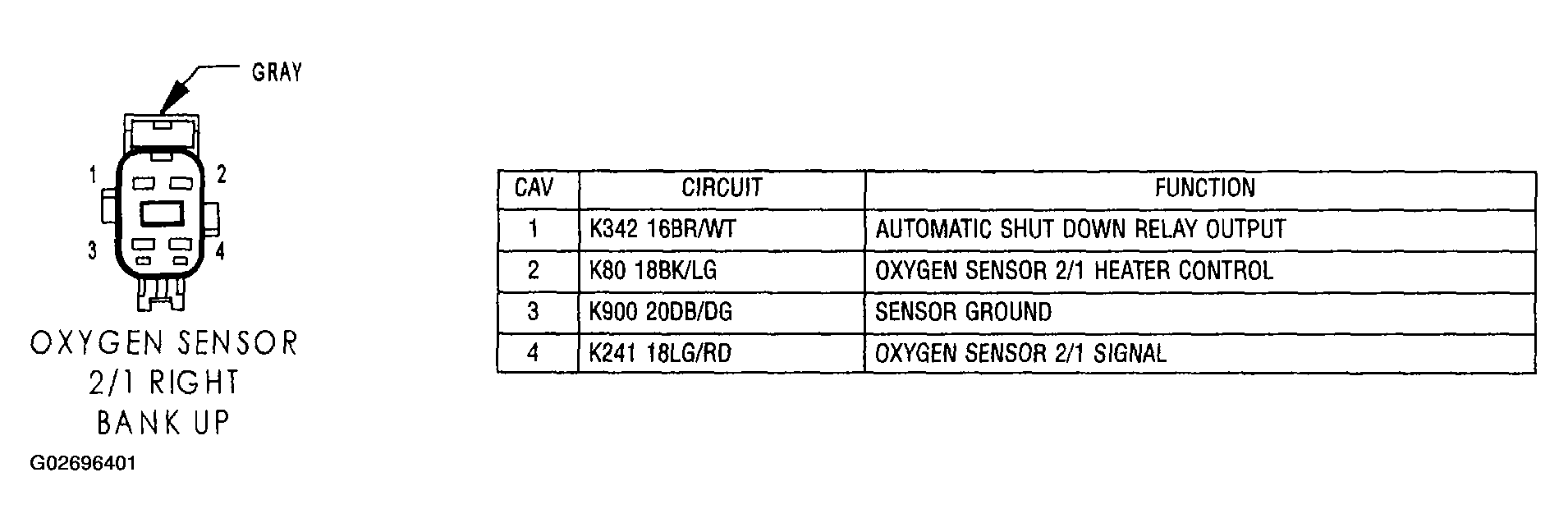

Fig 36: Identifying Oxygen Sensor 2/1 Right Bank Up Terminals
G02696401Courtesy of DAIMLERCHRYSLER CORP.

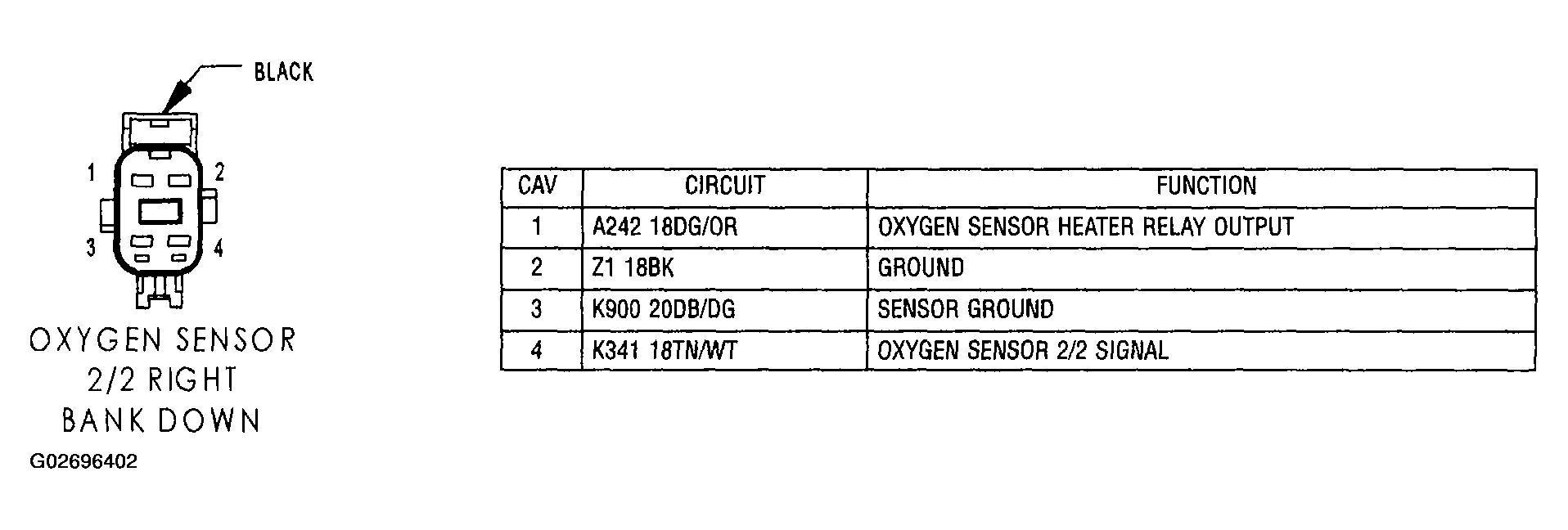

Fig 37: Identifying Oxygen Sensor 2/2 Right Bank Down Terminals
G02696402Courtesy of DAIMLERCHRYSLER CORP.

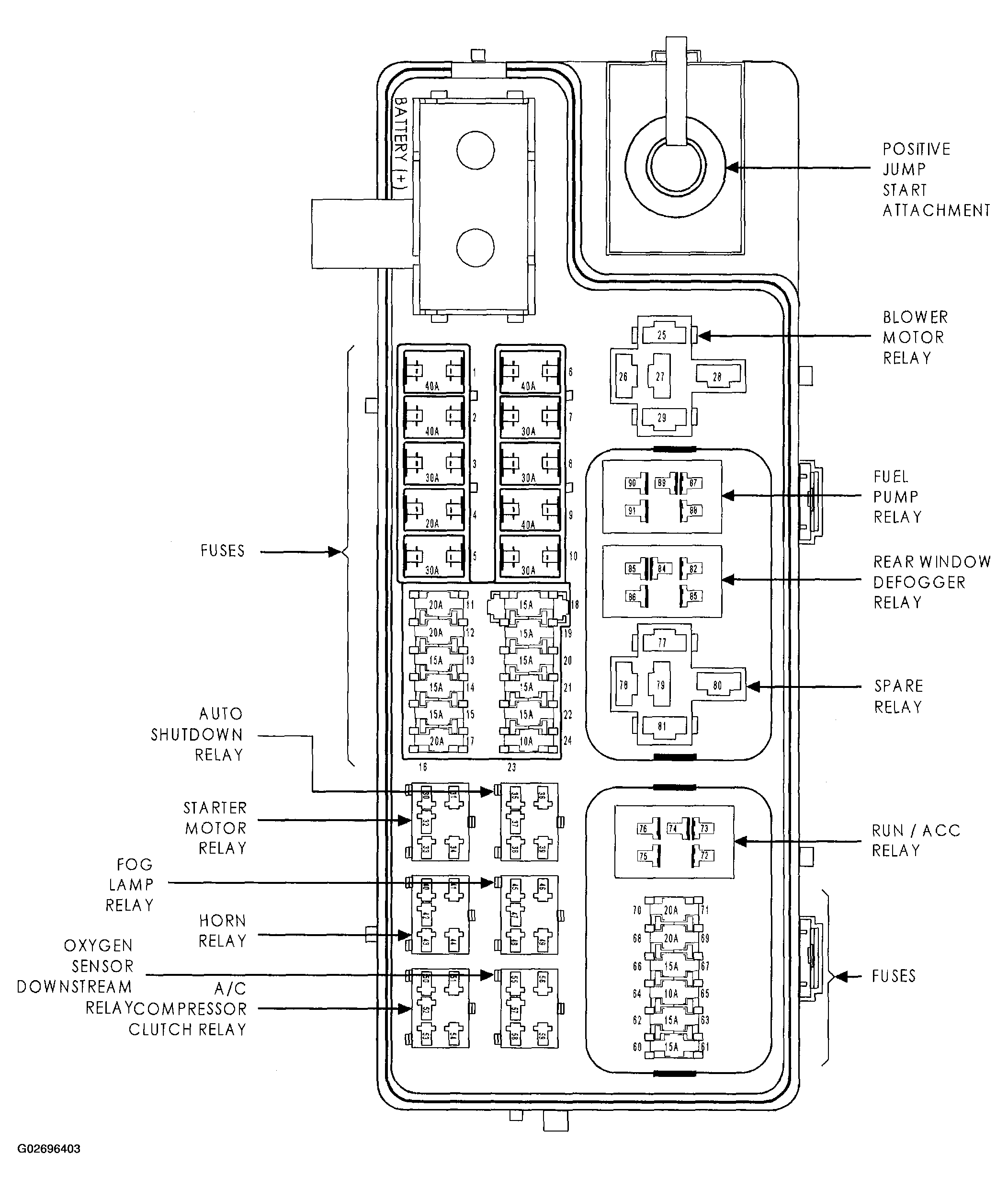

Fig 38: Identifying Power Distribution Center Components
G02696403Courtesy of DAIMLERCHRYSLER CORP.
FUSES (PDC)

FUSE NO. AMPS FUSED CIRCUIT FUNCTION
1 40A A111 12RD/LB FUSED B(+)
2 40A A107 12RD/YL FUSED B(+)
3 30A A145 14WT/RD FUSED B(+)
4 20A F75 14VT FUSED B(+)
5 30A A48 14VT FUSED B(+)
6 40A A149 12RD/TN FUSED B(+)
7 30A A10 12RD/DG FUSED B(+)
8 30A A5 14RD FUSED B(+)
9 50A A7 12RD FUSED B(+)
10 30A A1 14RD FUSED B(+)
11 20A A14 16RD/WT FUSED B(+)
12 20A A105 18DB/RD FUSED B(+)
13 15A A15 20RD/PK FUSED B(+)
14 15A F242 18DG/PK FUSED B(+)
15 15A A4 16BK/PK FUSED B(+)
16/17 20A F30 16RD FUSED RUN/ACC RELAY OUTPUT
18 15A F35 18RD FUSED B(+)
19 15A A62 18VT/LB FUSED B(+)
20 15A A27 20RD/VT FUSED B(+)
21 15A A103 20GY/RD FUSED B(+)
22 15A A64 16DG/WT FUSED B(+)
23/24 10A F14 18LG/YL FUSED IGNITION SWITCH OUTPUT (RUN)
60/61 15A F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
62/63 15A G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
64/65 10A F12 18DB/RD FUSED IGNITION SWITCH OUTPUT (RUN-START)
66/67 20A F13 18DB FUSED RUN/ACC RELAY OUTPUT
68/69 20A L43 18VT FUSED HEADLAMP RELAY OUTPUT
70/71 20A L44 18VT/RD FUSED HEADLAMP RELAY OUTPUT
A/C COMPRESSOR CLUTCH RELAY

CAV CIRCUIT FUNCTION
50 C3 18DB/BK A/C CLUTCH RELAY OUTPUT
51 C13 18DB/OR A/C CLUTCH RELAY CONTROL
52 -
53 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
54 A27 20RD/VT FUSED B(+)
AUTO SHUT DOWN RELAY

CAV CIRCUIT FUNCTION
35 K342 16BR/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
36 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
37 -
38 A14 16RD/WT FUSED B(+)
39 A14 16RD/WT FUSED B(+)
FUEL PUMP RELAY

CAV CIRCUIT FUNCTION
87 A141 16DG/WT FUEL PUMP RELAY OUTPUT
88 K31 18BR FUEL PUMP RELAY CONTROL
89 -
90 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
91 A64 16DG/WT FUSED B(+)
OXYGEN SENSOR HEATER RELAY

CAV CIRCUIT FUNCTION
55 A242 18DG/OR OXYGEN SENSOR HEATER RELAY OUTPUT
56 K512 18BR/YL OXYGEN SENSOR HEATER RELAY CONTROL
57 -
58 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
59 F242 18DG/PK FUSED B(+)
RUN/ACC RELAY

CAV CIRCUIT FUNCTION
72 F89 20RD/WT RUN/ACC RELAY CONTROL
73 A5 14RD FUSED B(+)
74 - -
75 F1 14DB RUN/ACC RELAY OUTPUT
76 Z1 20BK GROUND
STARTER MOTOR RELAY

CAV CIRCUIT FUNCTION
30 T40 12BR STARTER MOTOR RELAY OUTPUT
31 K90 18TN STARTER MOTOR RELAY CONTROL
32 - -
33 F45 20YL/BK FUSED IGNITION SWITCH OUTPUT (START)
34 A107 12RD/YL FUSED B(+)

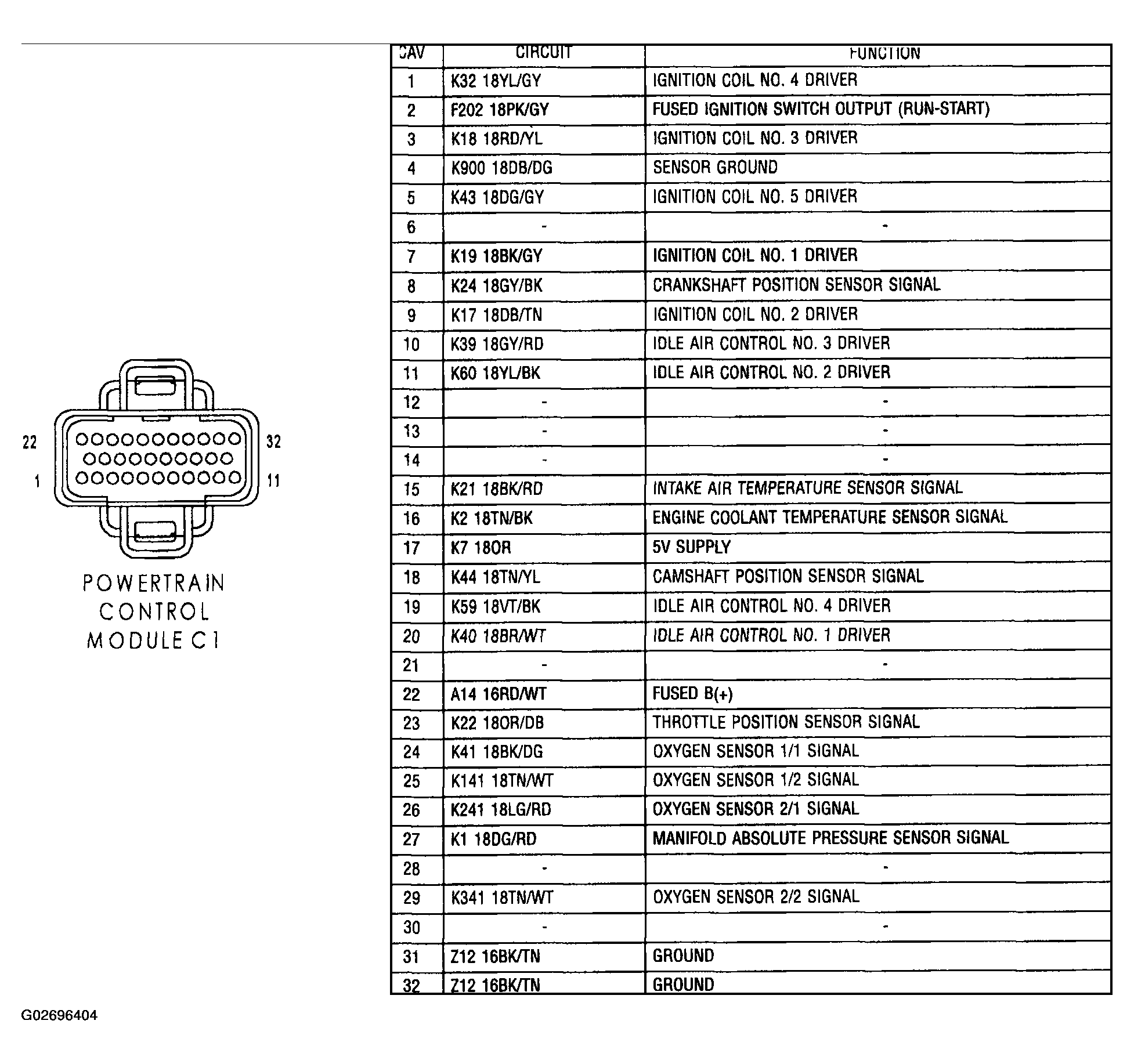

Fig 39: Identifying Powertrain Control Module C1 Terminals
G02696404Courtesy of DAIMLERCHRYSLER CORP.

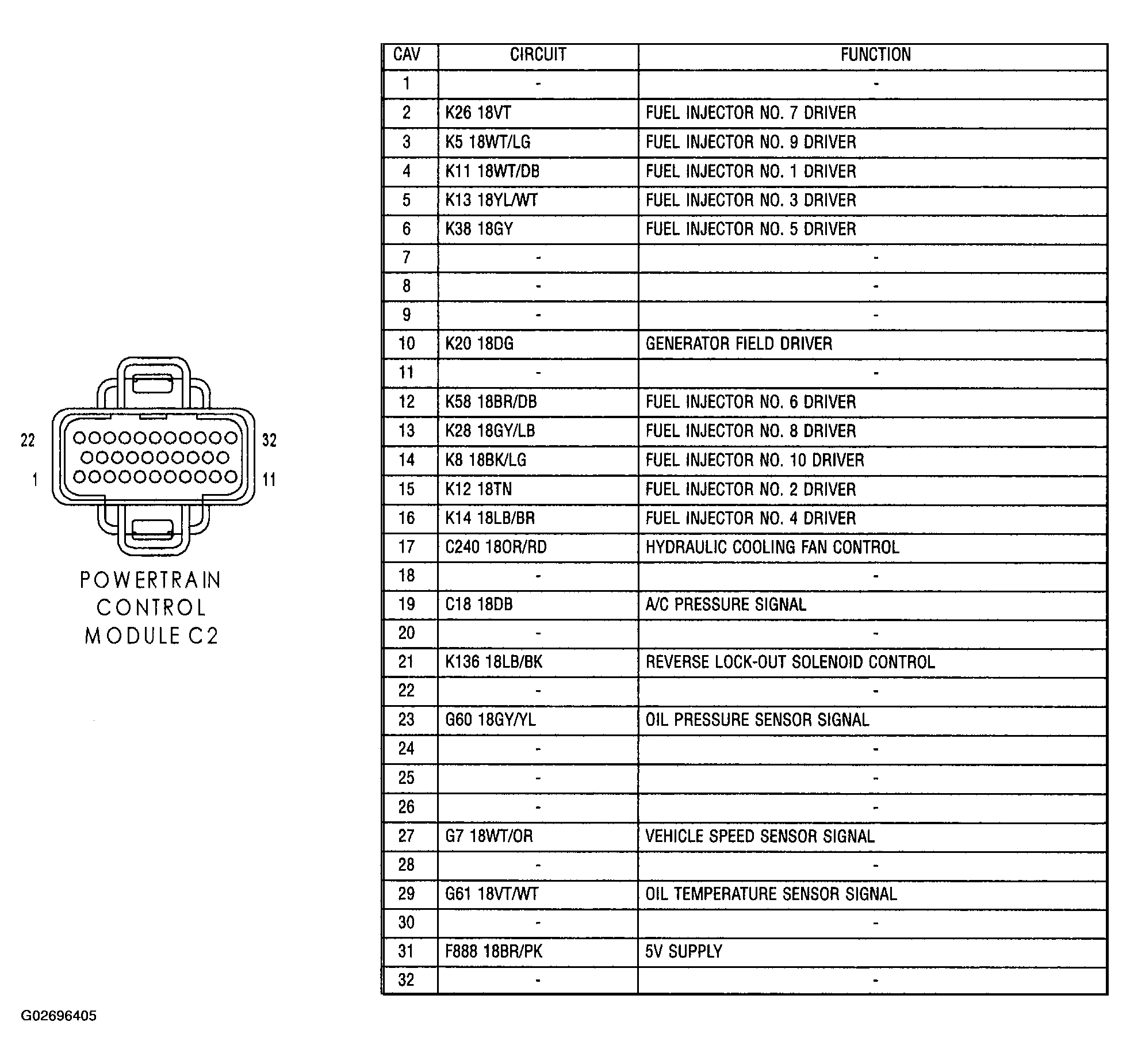

Fig 40: Identifying Powertrain Control Module C2 Terminals
G02696405Courtesy of DAIMLERCHRYSLER CORP.

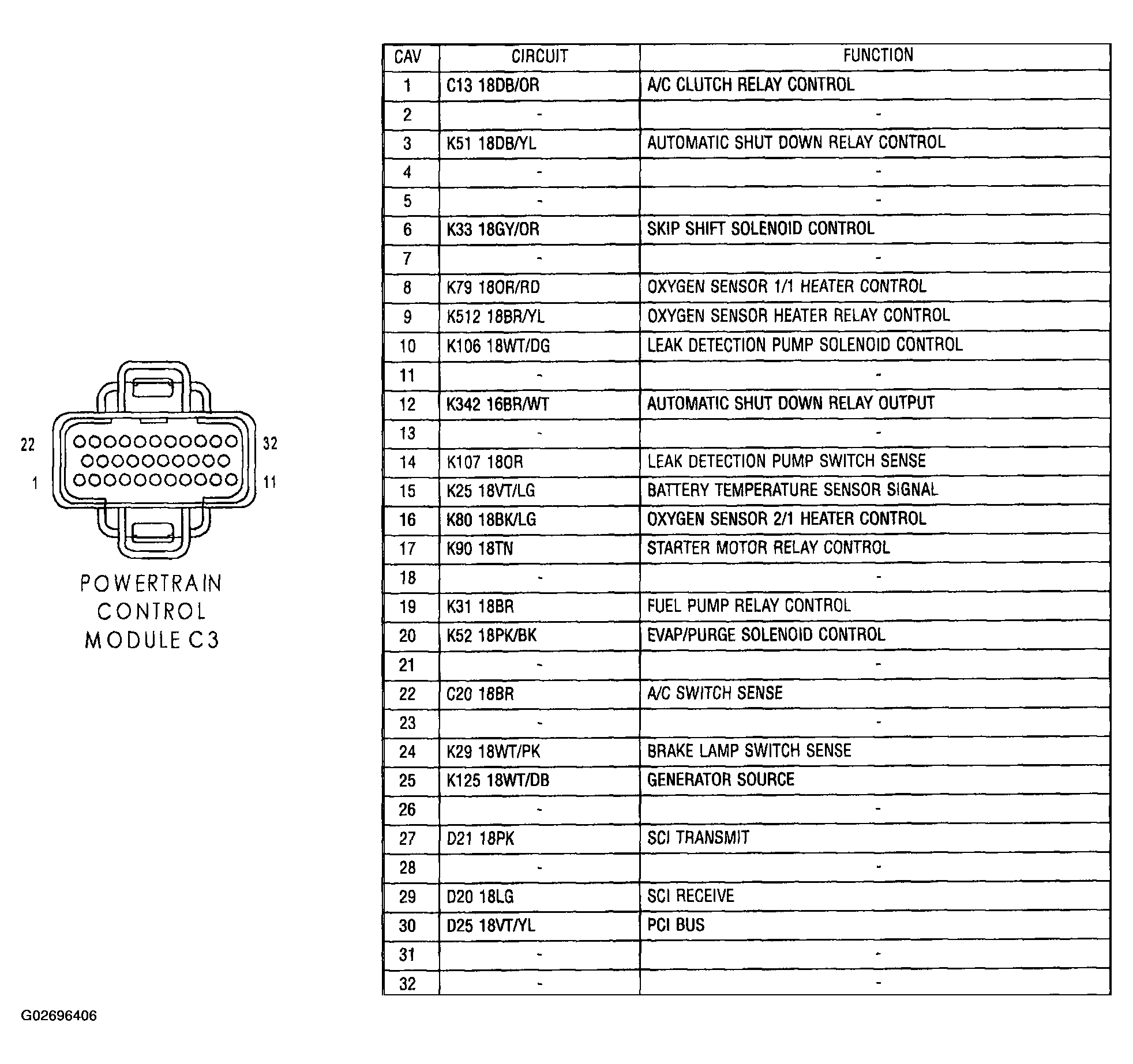

Fig 41: Identifying Powertrain Control Module C3 Terminals
G02696406Courtesy of DAIMLERCHRYSLER CORP.

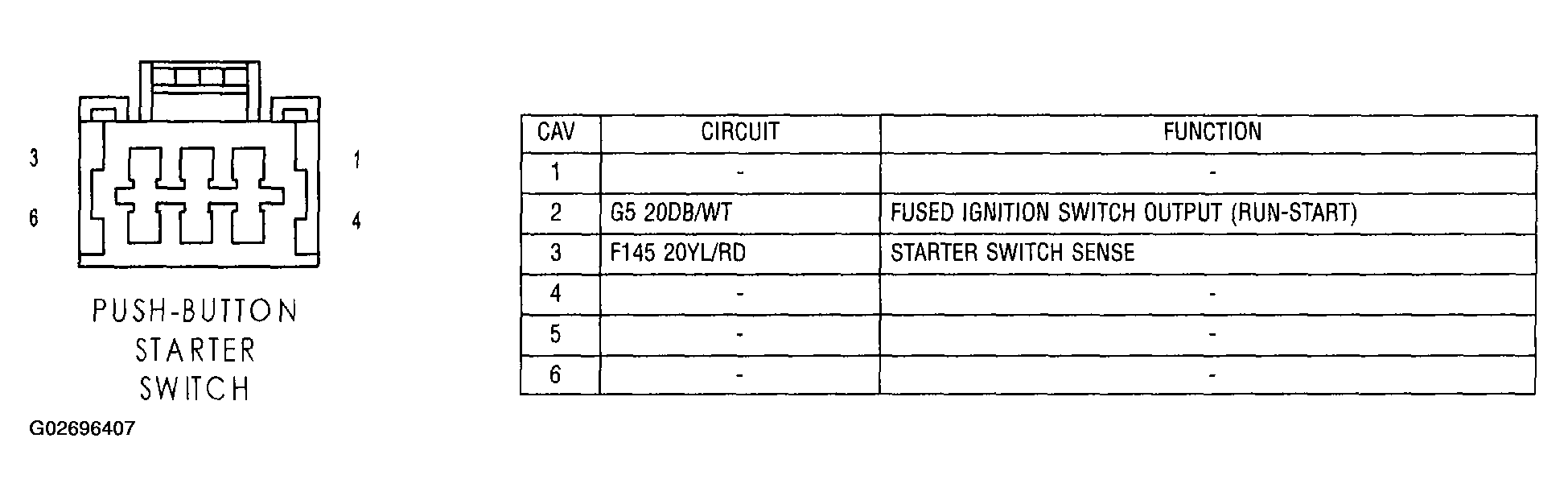

Fig 42: Identifying Push-Button Starter Switch Terminals
G02696407Courtesy of DAIMLERCHRYSLER CORP.

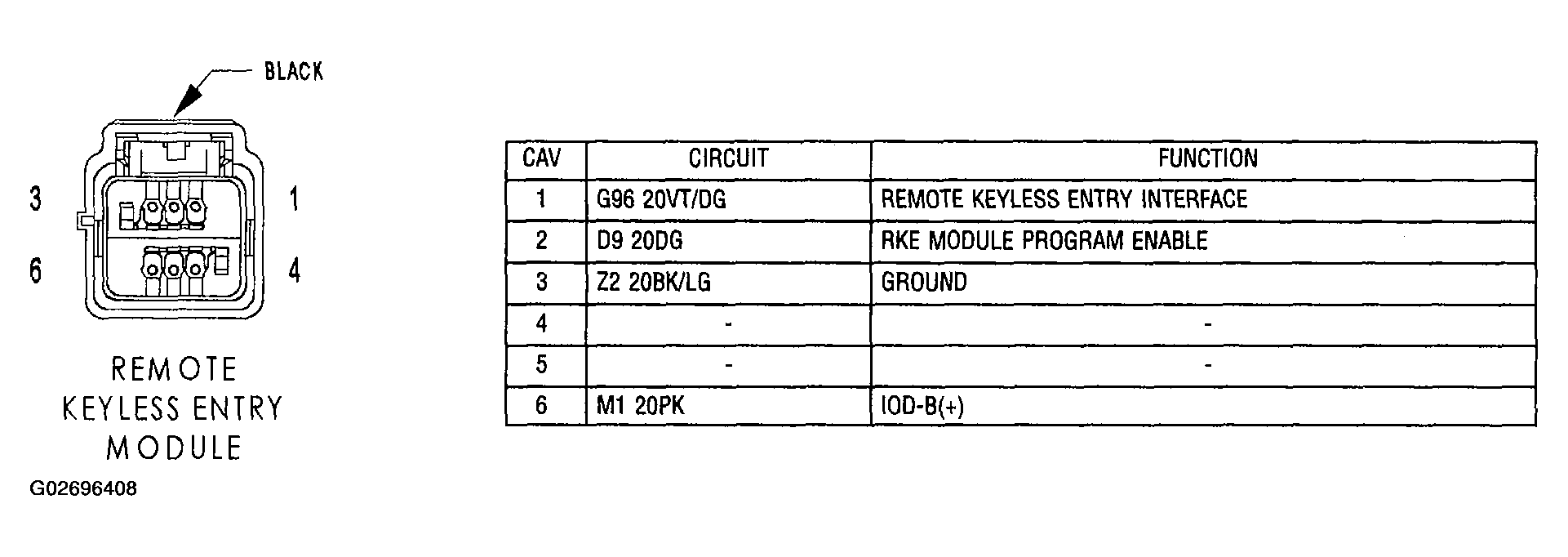

Fig 43: Identifying Remote Keyless Entry Module Terminals
G02696408Courtesy of DAIMLERCHRYSLER CORP.

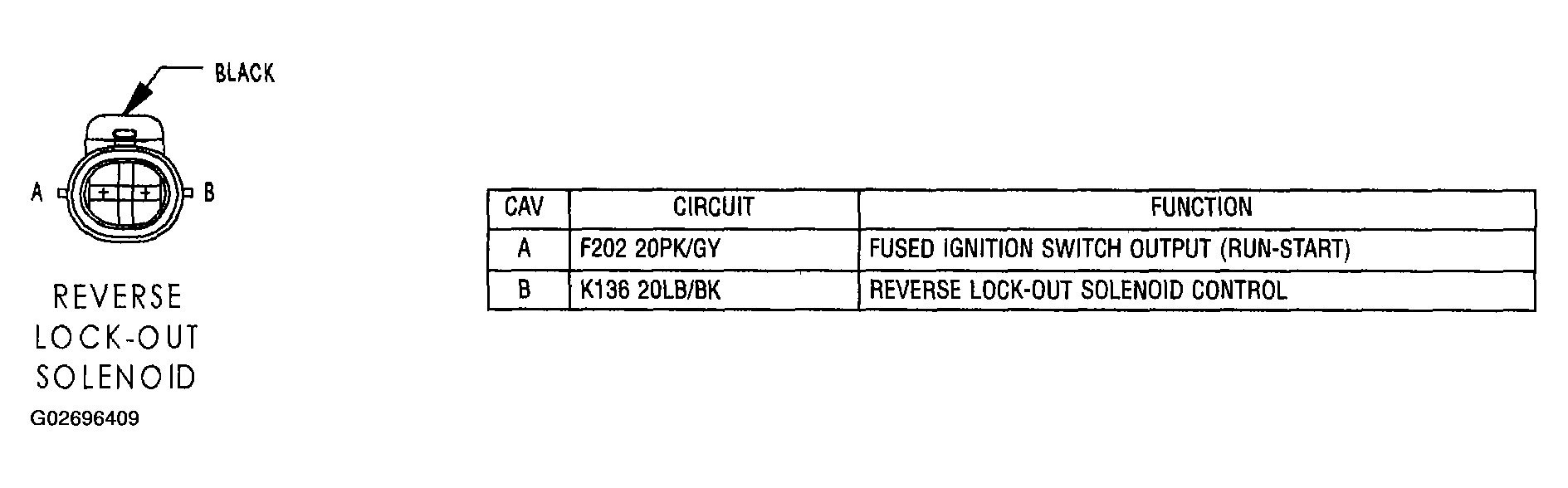

Fig 44: Identifying Reverse Lock-Out Solenoid Terminals
G02696409Courtesy of DAIMLERCHRYSLER CORP.

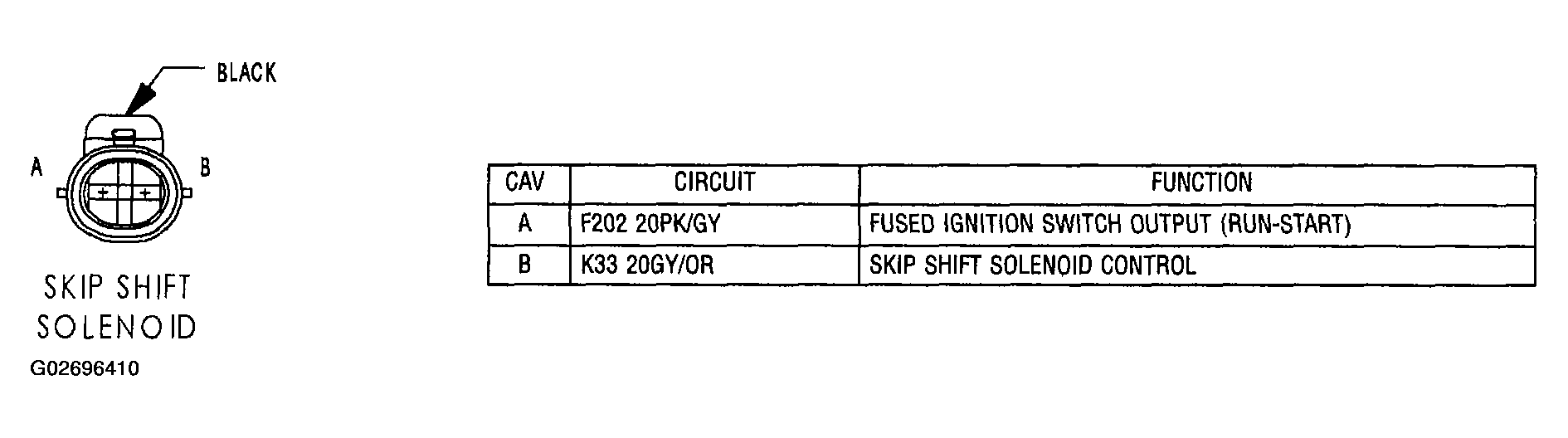

Fig 45: Identifying Skip Shift Solenoid Terminals
G02696410Courtesy of DAIMLERCHRYSLER CORP.

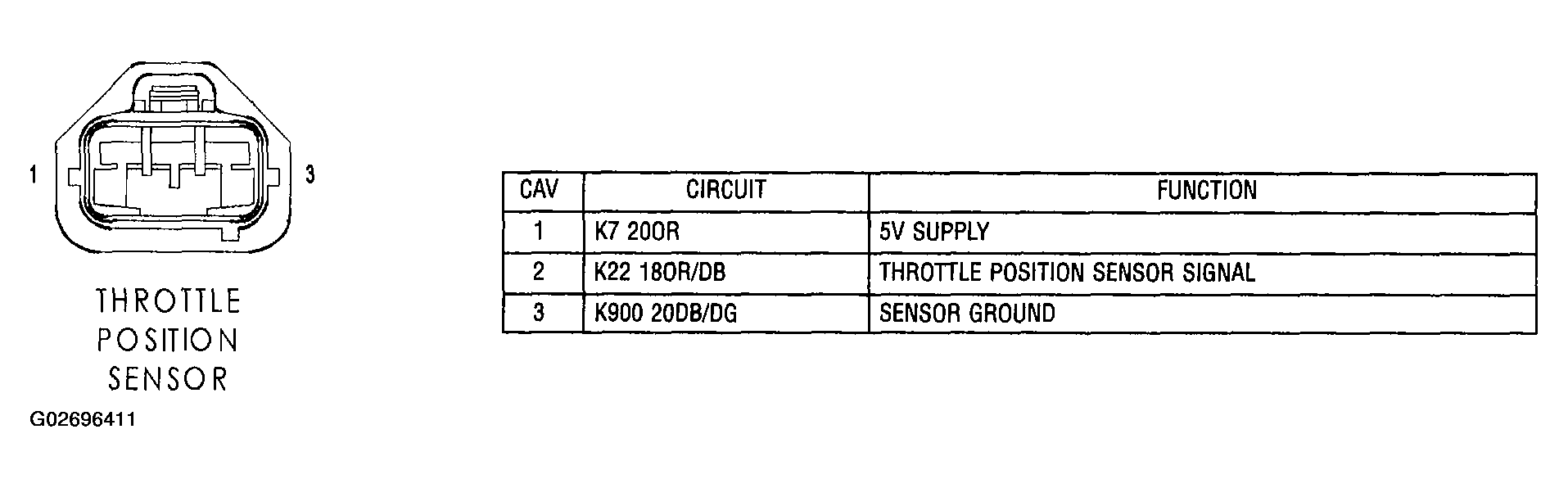

Fig 46: Identifying Throttle Position Sensor Terminals
G02696411Courtesy of DAIMLERCHRYSLER CORP.
