Fuel System

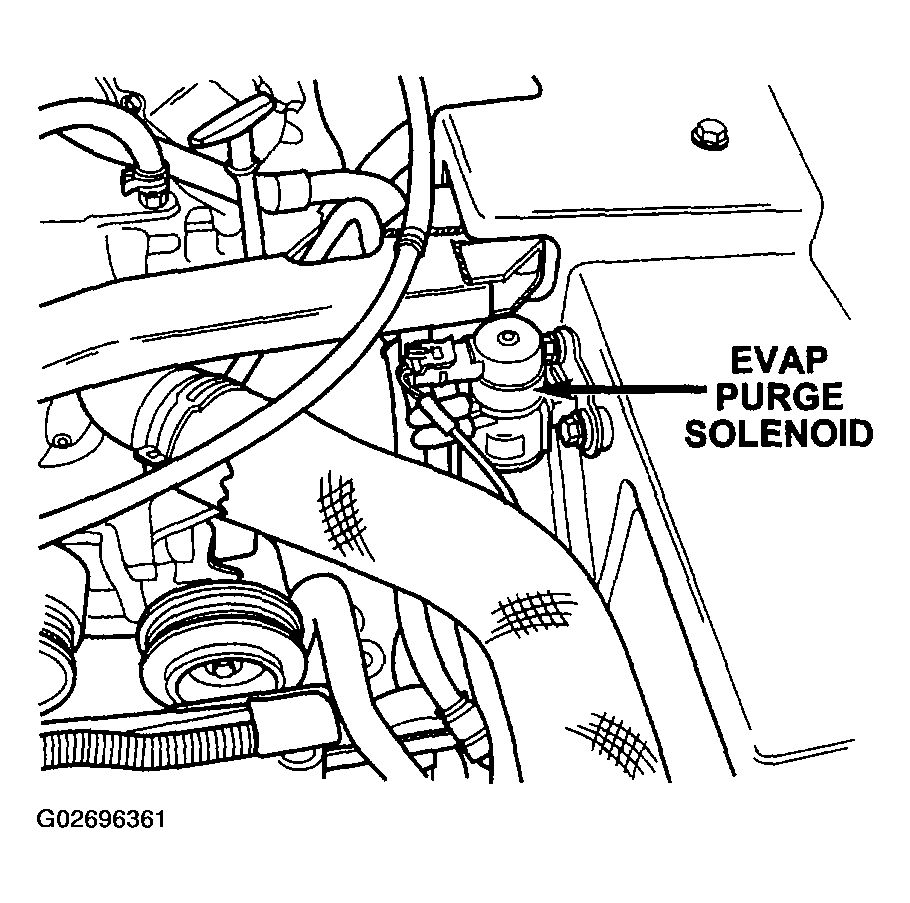

Fig 1: Locating EVAP Purge Solenoid
G02696361Courtesy of DAIMLERCHRYSLER CORP.

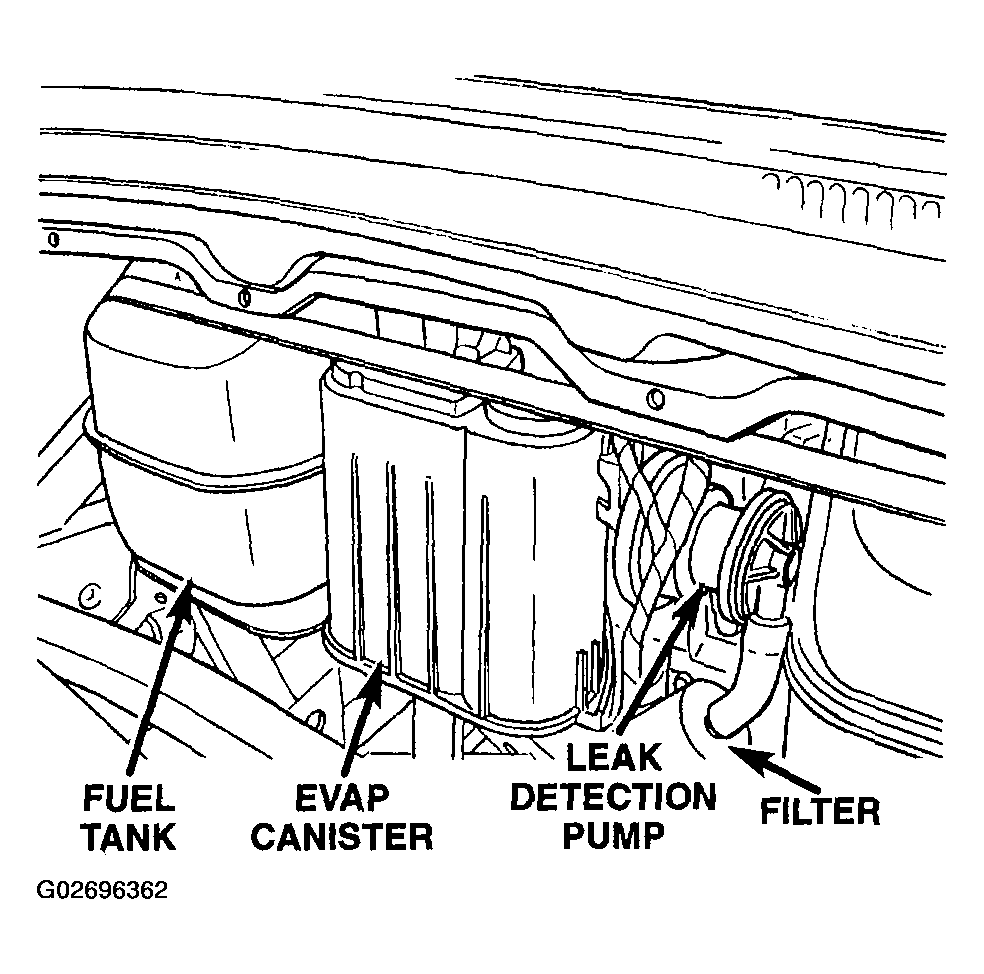

Fig 2: Locating EVAP Canister Solenoid
G02696362Courtesy of DAIMLERCHRYSLER CORP.

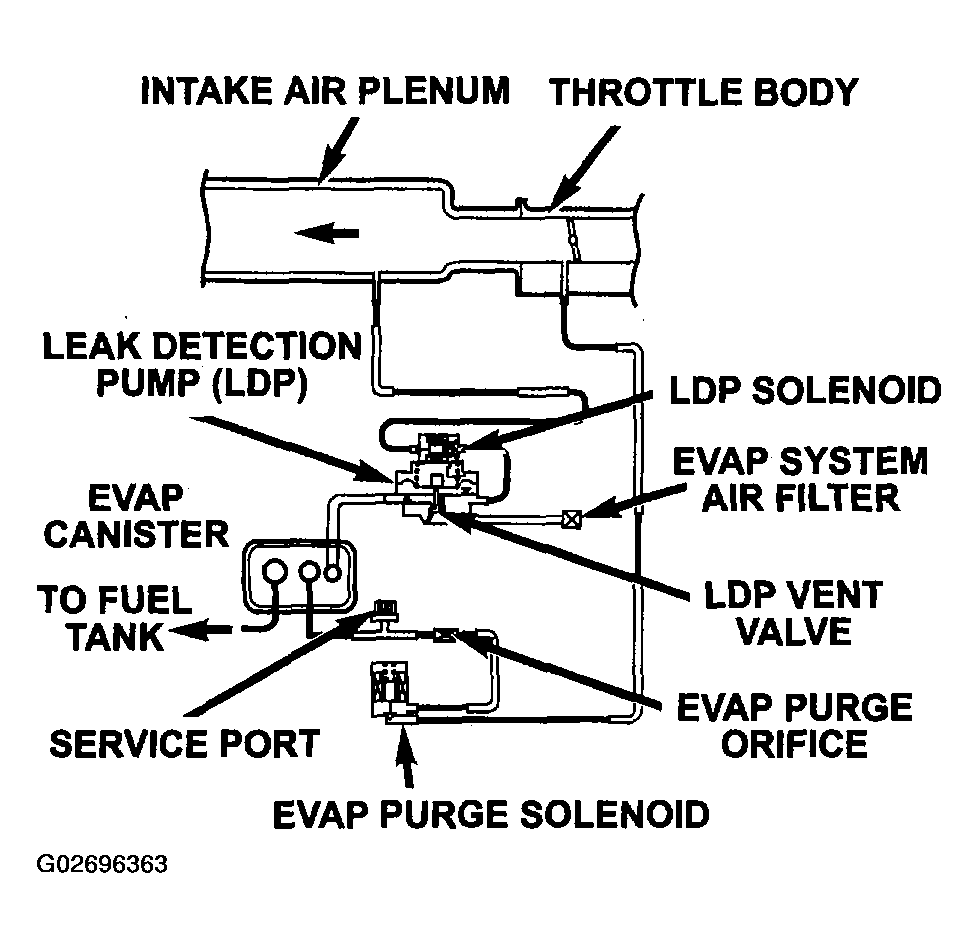

Fig 3: Locating EVAP Leak Detection System Components
G02696363Courtesy of DAIMLERCHRYSLER CORP.

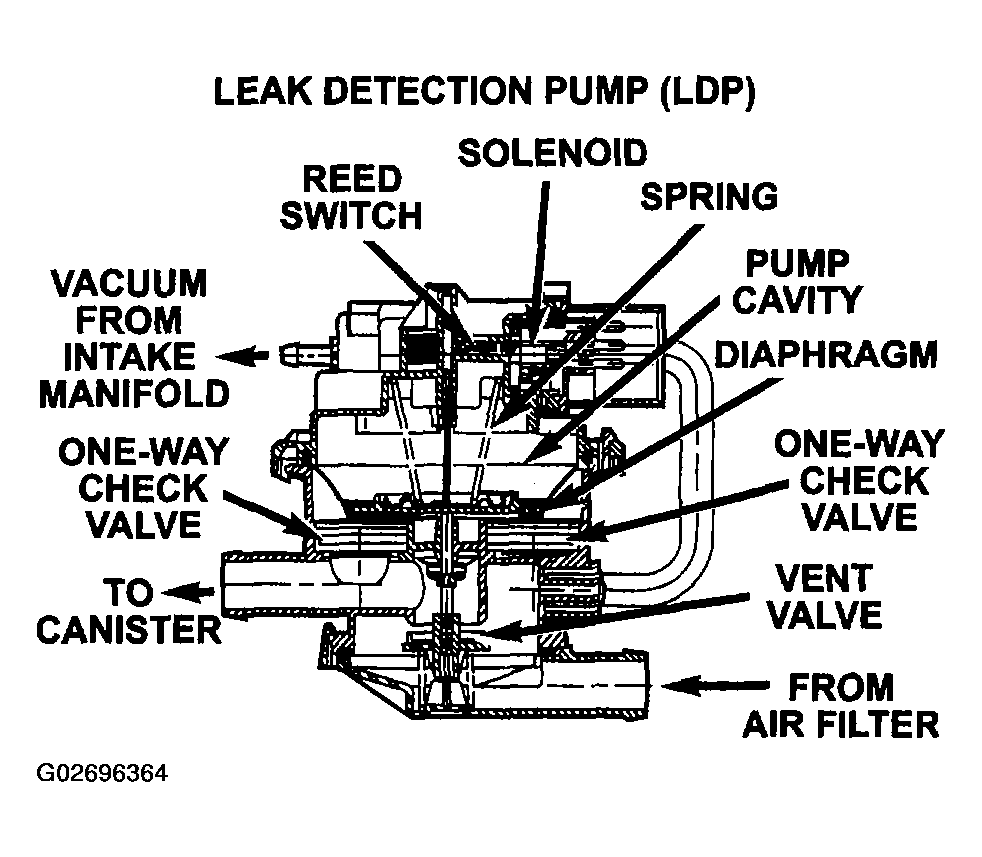

Fig 4: Locating Leak Detection Pump Assembly Components
G02696364Courtesy of DAIMLERCHRYSLER CORP.

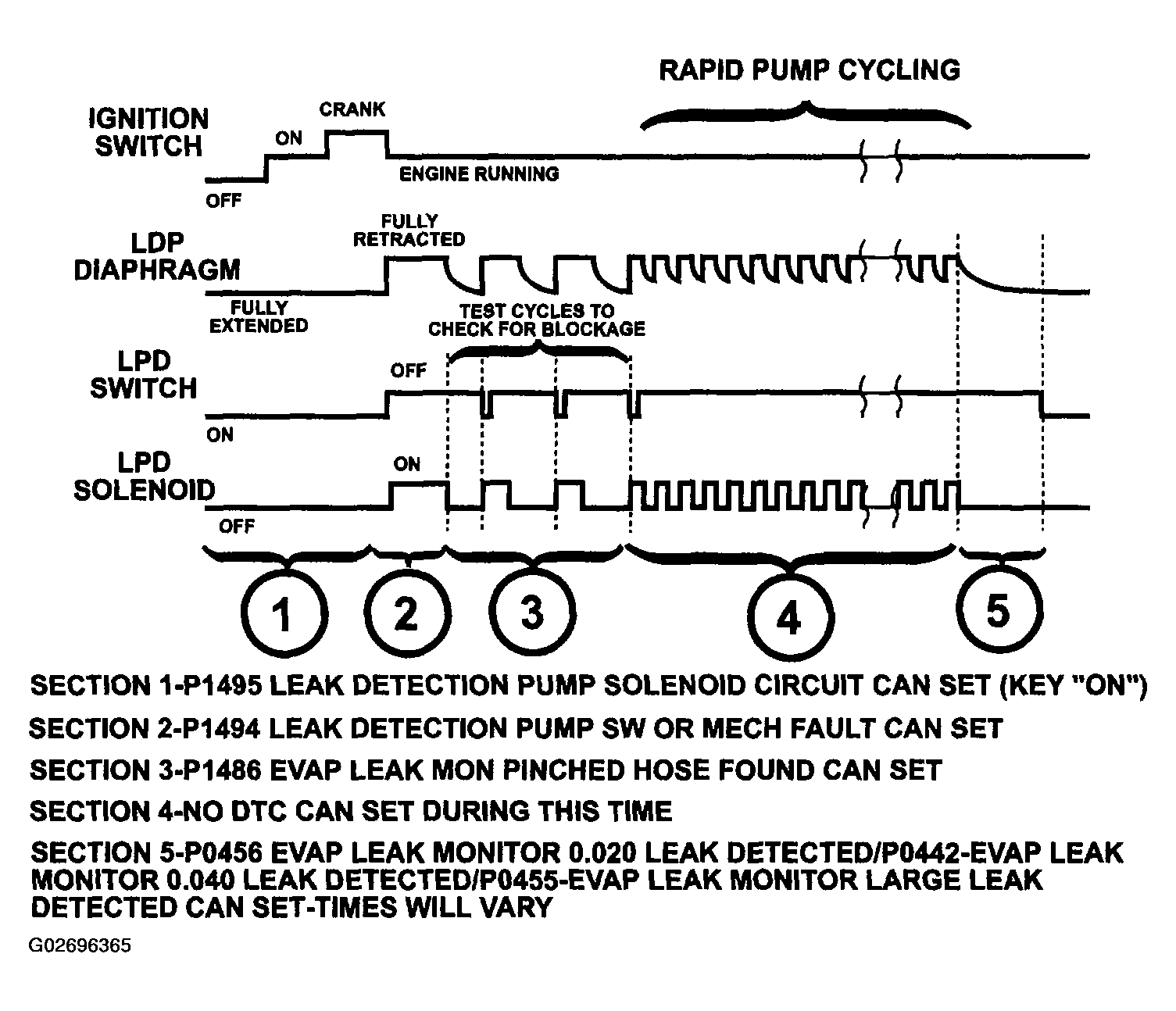

Fig 5: EVAP Leak Detection Test Sequence
G02696365Courtesy of DAIMLERCHRYSLER CORP.
