Home >> Dodge and Ram >> 2003 >> Viper >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Diagnostic Information And Procedures >> Charts And Graphs >> Vacuum Readings

Vacuum Readings

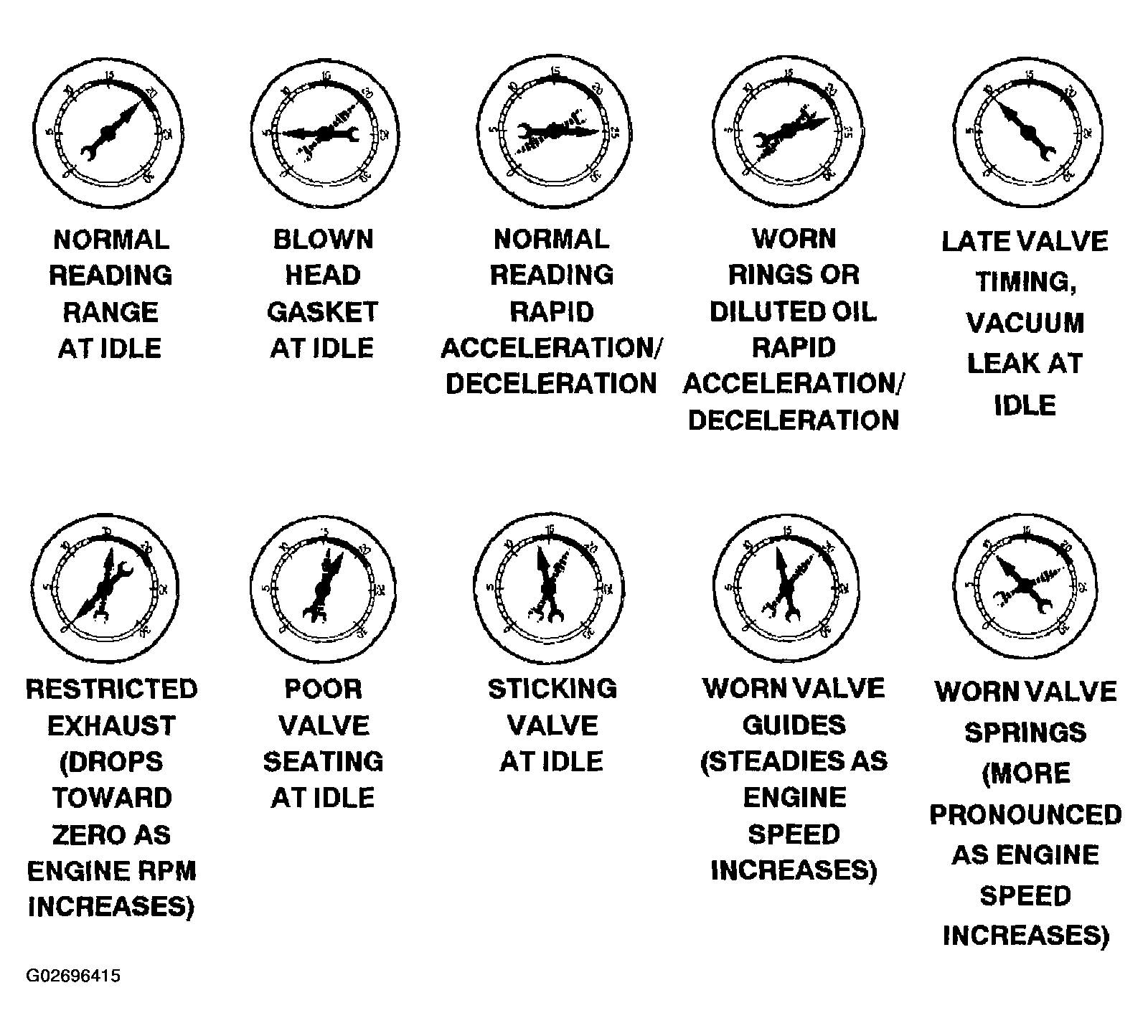

Fig 1: Identifying Vacuum Readings
G02696415Courtesy of DAIMLERCHRYSLER CORP.
