Rocker Arms: Installation

    CAUTION: THE ROCKER ARM PEDESTAL BOLTS SHOULD BE TORQUED DOWN SLOWLY. ALLOW 20 MINUTES TAPPET BLEED DOWN TIME AFTER INSTALLATION OF THE ROCKER BOLTS BEFORE ENGINE OPERATION.

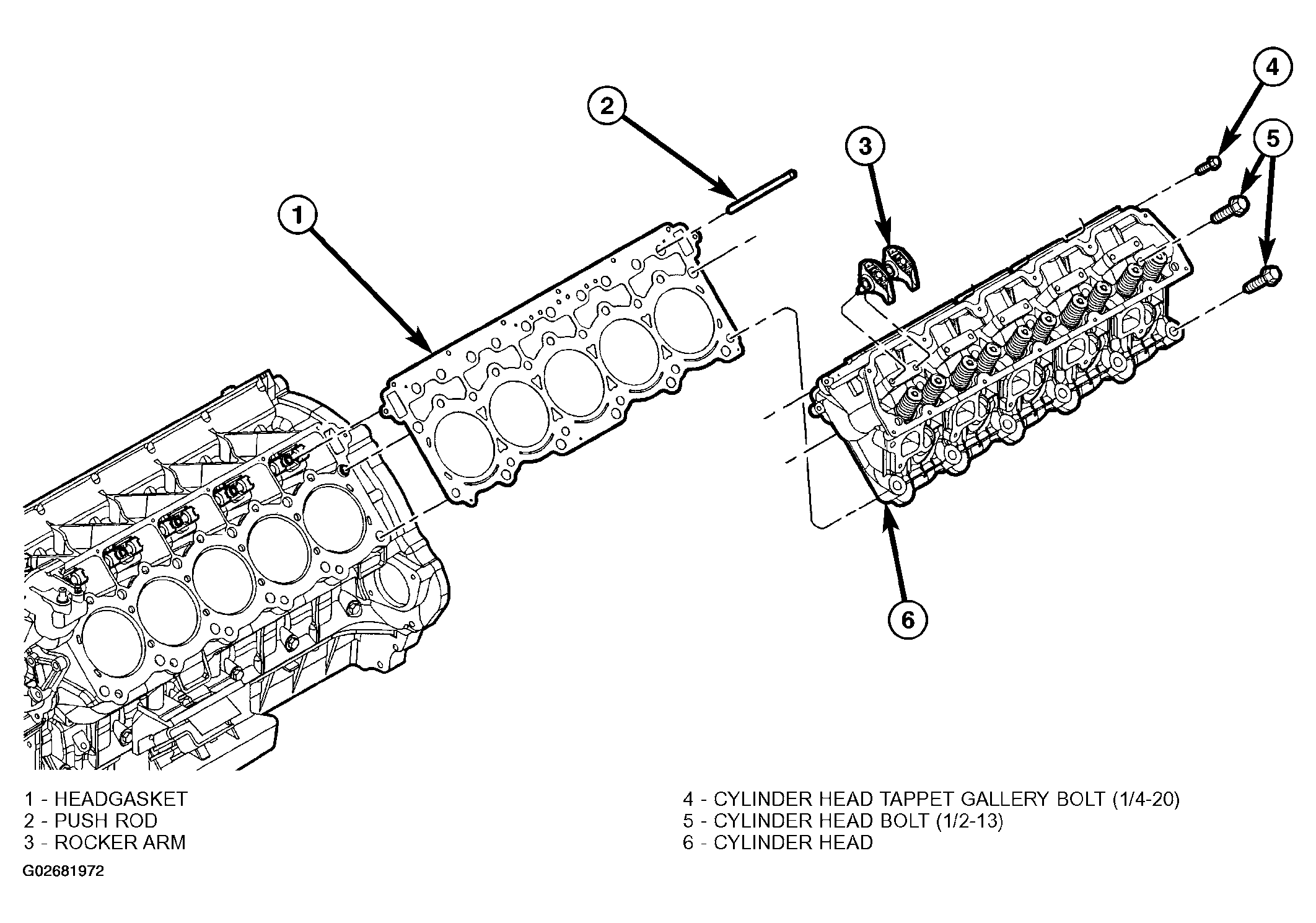

  1. Install rocker arm and pedestal assemblies into position. Ensure push rods are seated properly under each rocker arm. Tighten rocker arm bolts to 35 N.m (26 ft. lbs.) (Figure).
  2. Install cylinder head cover(s) (Refer to CYLINDER HEAD COVER(S) ).
