Heat Shields: Description

High temperatures can develop around the catalytic converters and resonators. Because of this, heat shields (Fig 1 ) and (Fig 2 ) are necessary to protect both the car and the environment.

Fig 1: Removing Catalytic Converter Heat Shield (Right Side Shown - Left Side Typical)

Courtesy of DAIMLERCHRYSLER CORP.

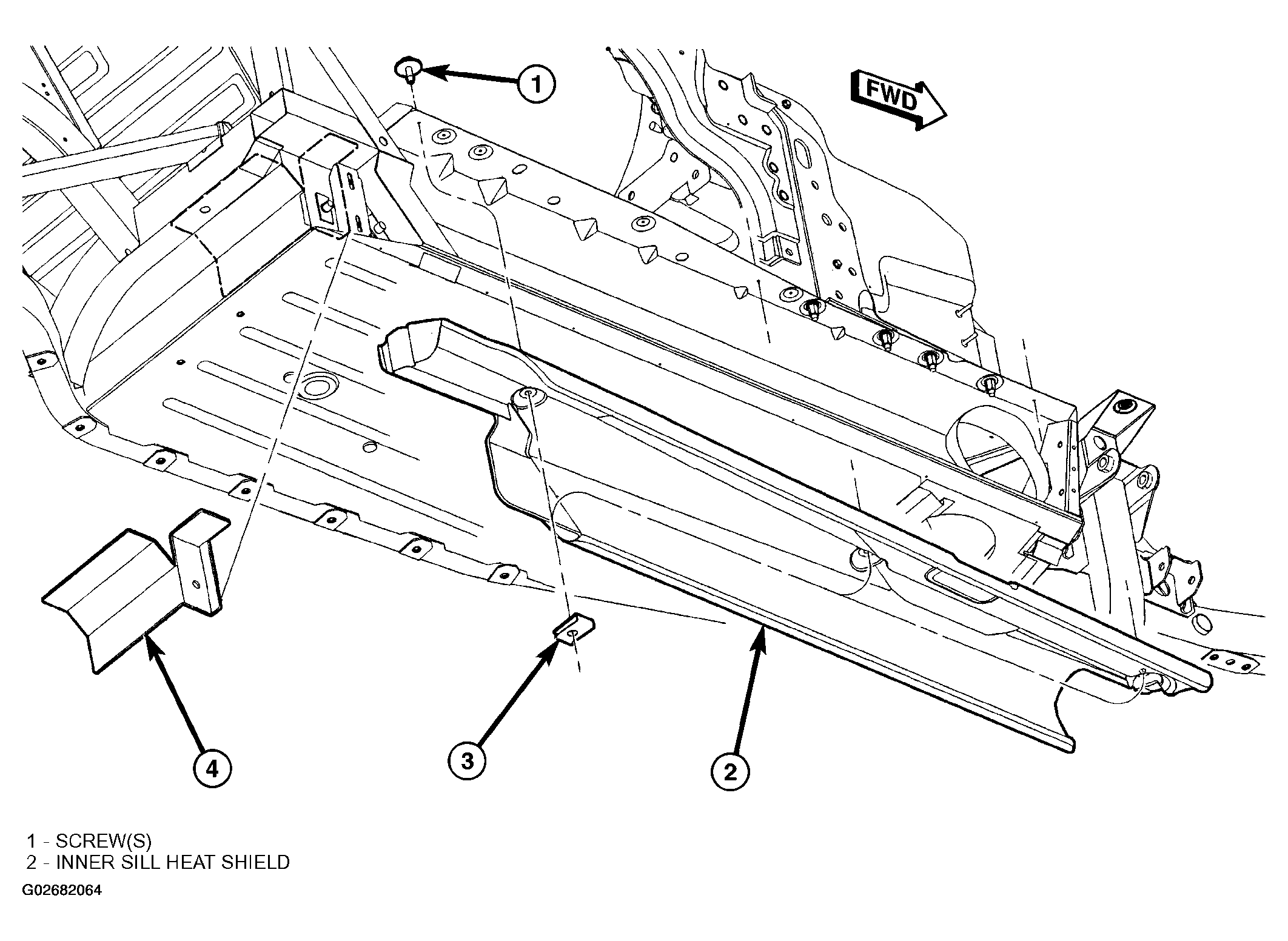

Fig 2: Removing Inner Sill Heat Shield (Right Side Shown - Left Side Typical)

Courtesy of DAIMLERCHRYSLER CORP.
