Engine Cooling System: Engine: Cleaning

Drain, flush, and fill the cooling system at the mileage or time intervals specified (Refer to SPECIFICATIONS ). If the solution is dirty, rusty or contains a considerable amount of sediment, clean and flush with clean water. Care should be taken in disposing of the used engine coolant from your vehicle. Check governmental regulations for disposal of used engine coolant.

1. Drain cooling system (Refer to STANDARD PROCEDURE - DRAINING COOLING SYSTEM ).
2. Refill cooling system with clean water (Refer to STANDARD PROCEDURE - FILLING COOLING SYSTEM ).

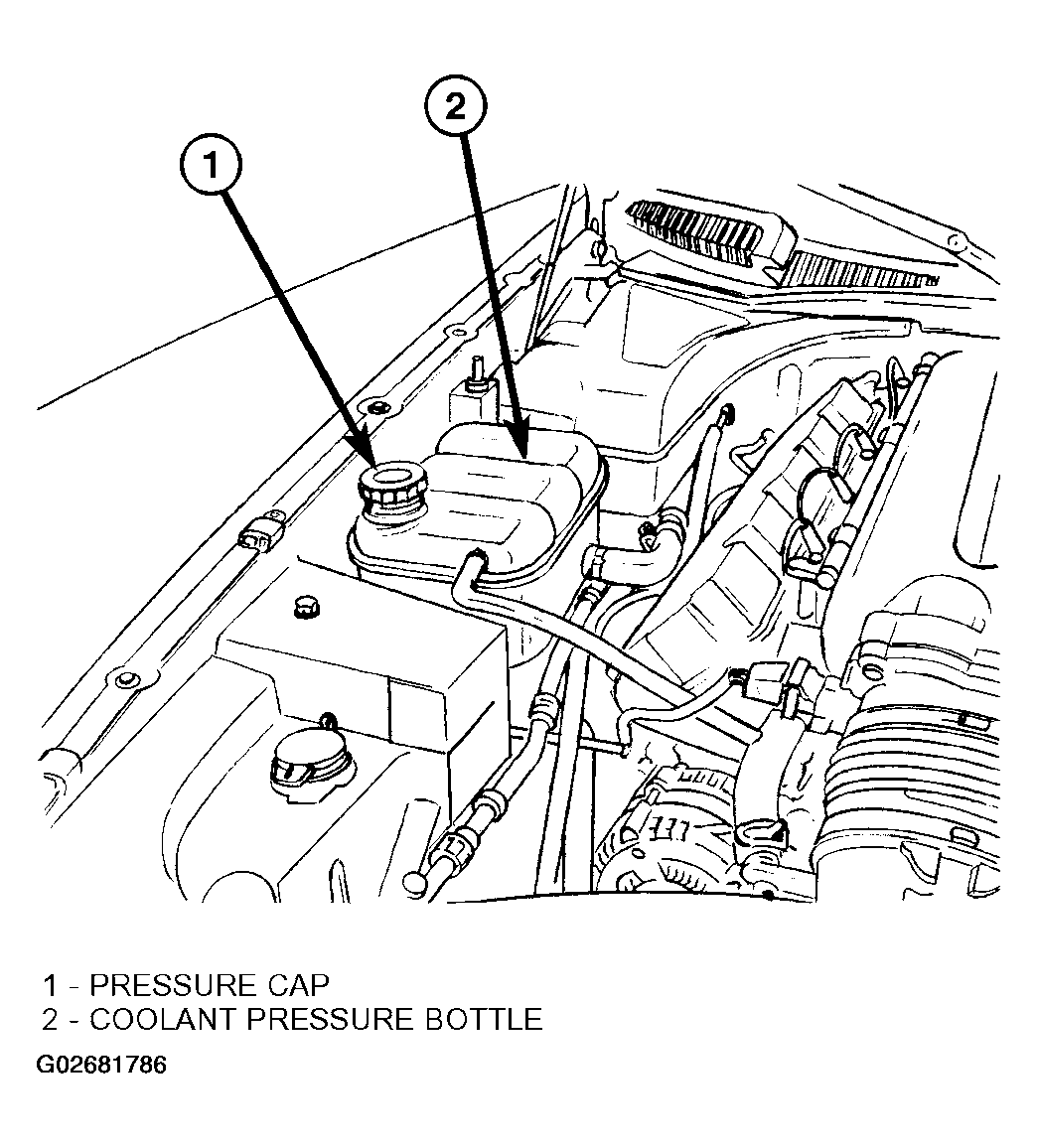

   Fig 1: Identifying Coolant Pressure Bottle And Cap

   Courtesy of DAIMLERCHRYSLER CORP.

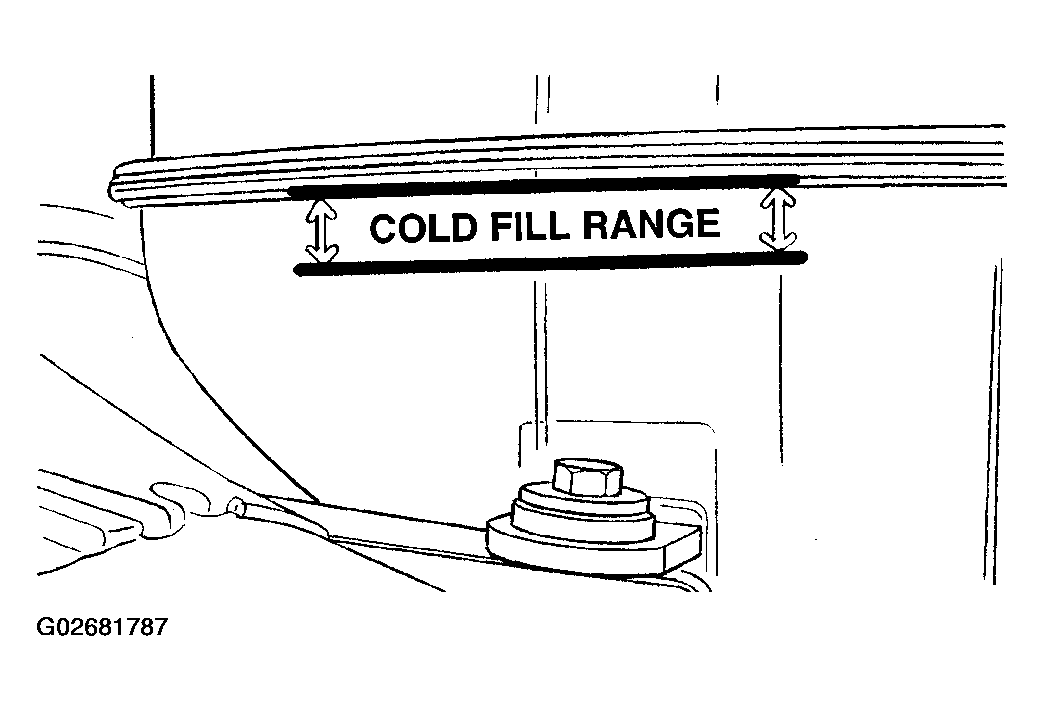

   Fig 2: Identifying Cold Fill Range

   Courtesy of DAIMLERCHRYSLER CORP.
3. Run engine with pressure cap installed until upper radiator hose is warm.
4. Stop engine and drain water from system. If water is dirty, fill, run and drain system again until water runs clear.
5. After system is clean, fill cooling system with the proper mixture of Mopar® Antifreeze/Coolant and distilled water (Refer to STANDARD PROCEDURE - FILLING COOLING SYSTEM ).
