Engine Coolant Temperature Sensor: Removal

  1. Partially drain the cooling system.
  2. Disconnect the electrical connector from the engine coolant temperature sensor.
  3. Remove the sensor (Fig 1).

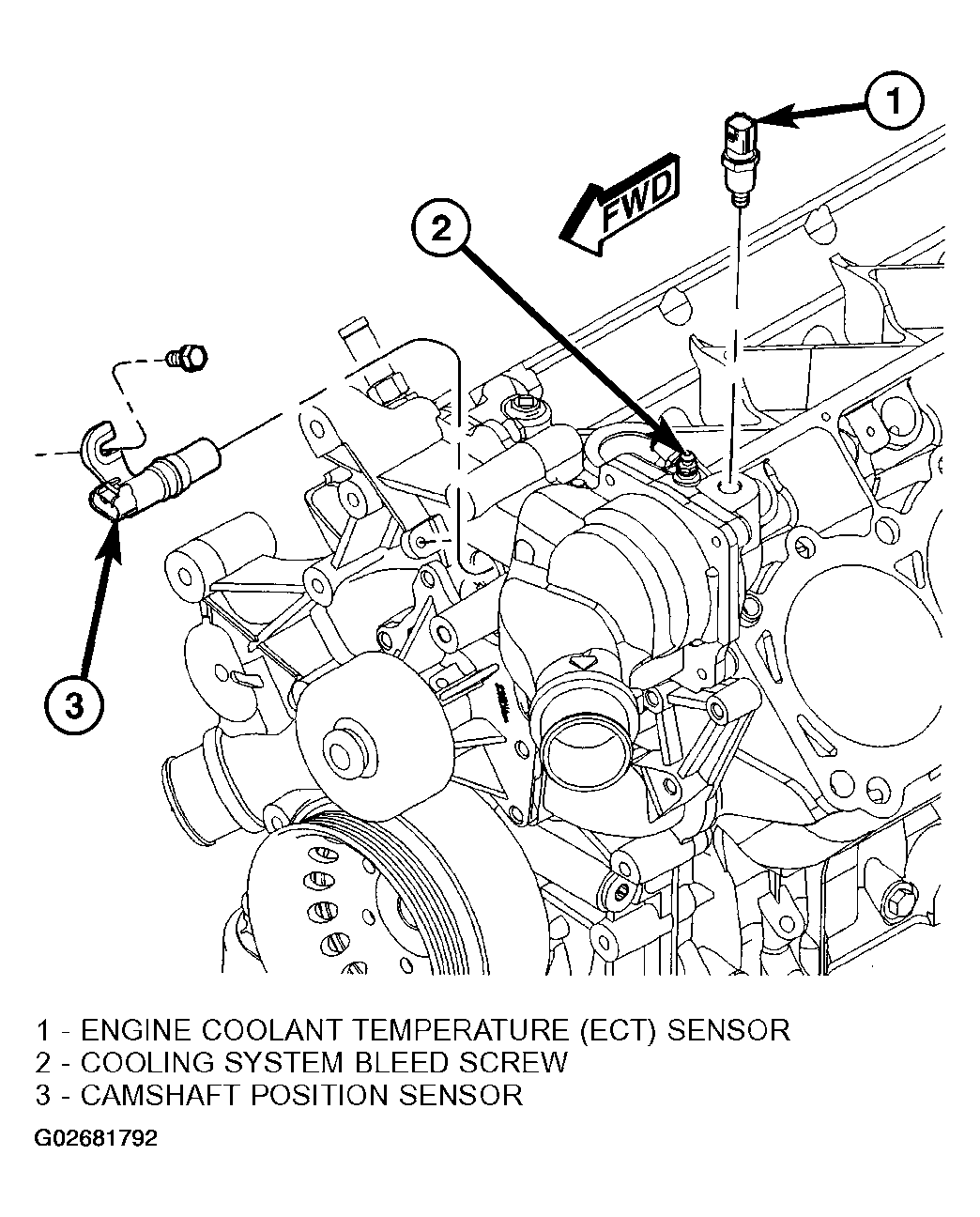

Fig 1: Identifying Engine Coolant Temperature (ECT) Sensor
G02681792Courtesy of DAIMLERCHRYSLER CORP.
