Left License Lamp Connector End View

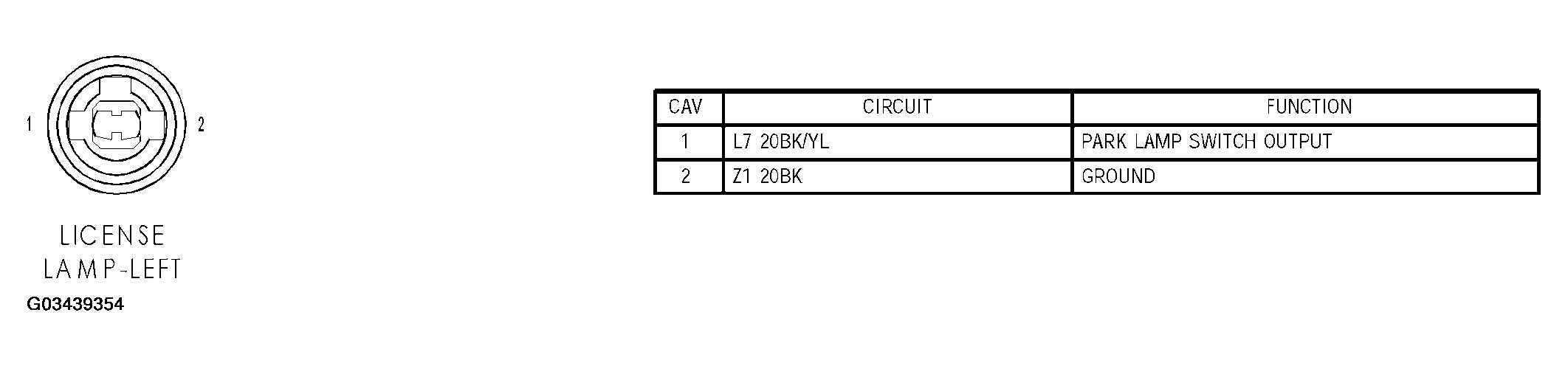

Fig 1: Left License Lamp Connector End View

G03439354

Courtesy of DAIMLERCHRYSLER CORP.
