A/C Heater Control Connector End View (C2)

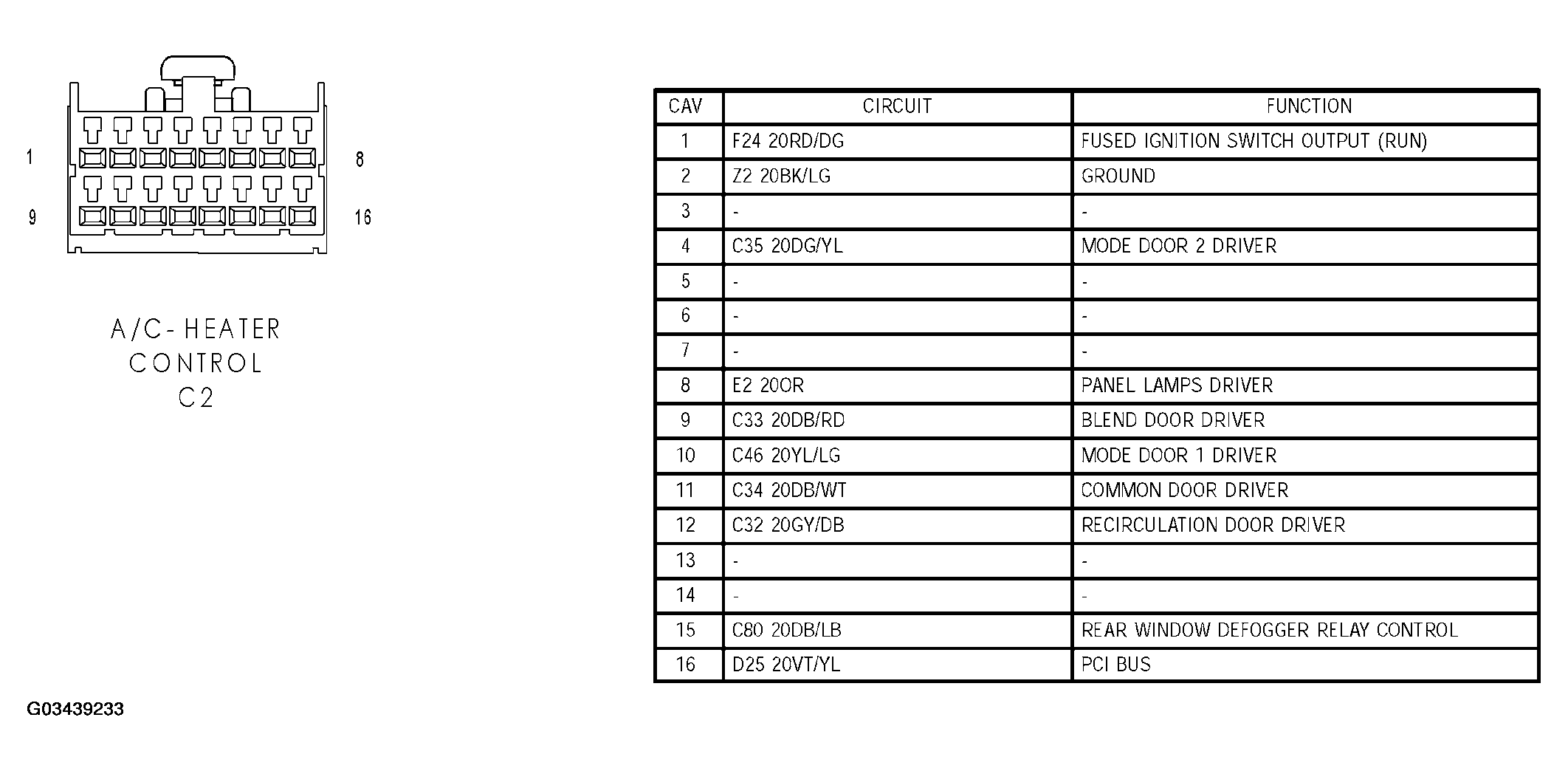

Fig 1: A/C Heater Control Connector End View (C2)

G03439233

Courtesy of DAIMLERCHRYSLER CORP.
