Starter Motor: Installation

  1. Install the starter.
  2. Install the lower bolt.
  3. Install the upper bolt. See Fig 1 .
  4. Install the positive battery cable.

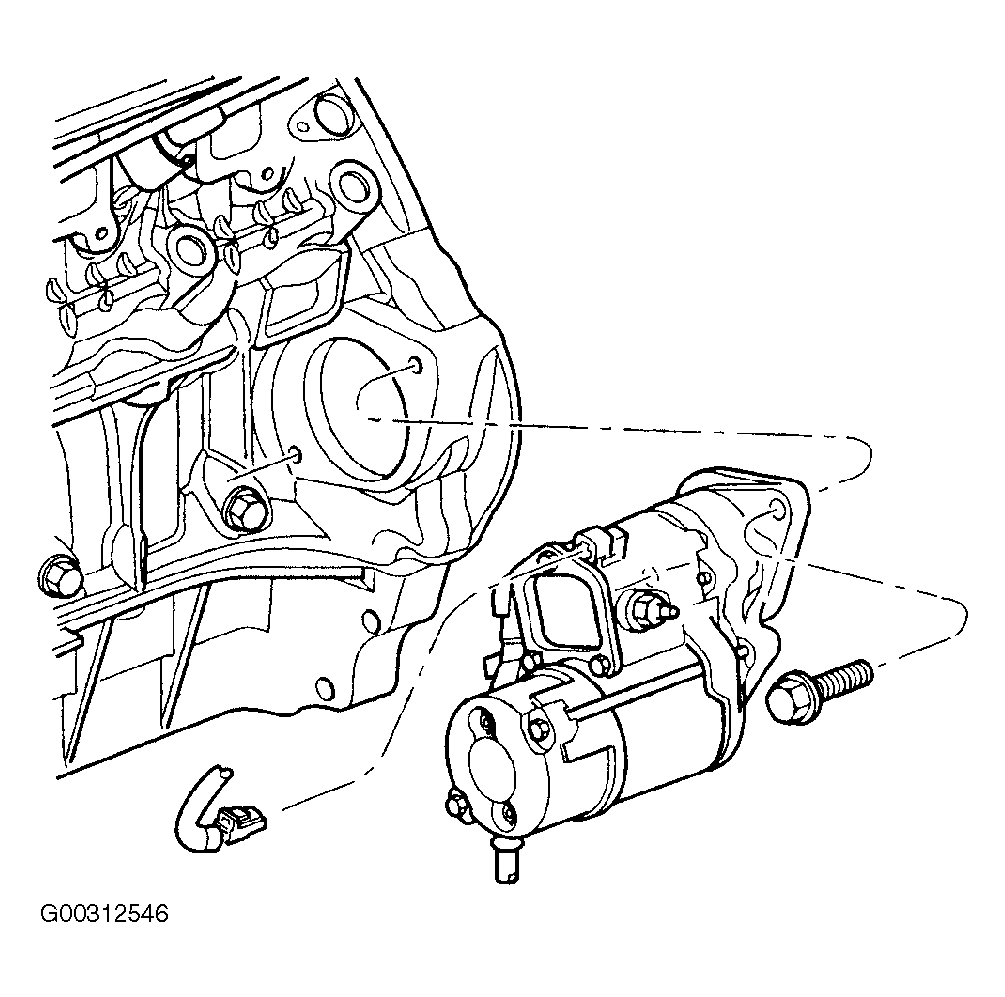

    Fig 1: Starter Bolts
    G00312546Courtesy of CHRYSLER CORP.
  5. Connect the solenoid connector.
  6. Lower vehicle.
  7. Connect the negative battery cable. See Figure .
