Home >> Dodge and Ram >> 2003 >> Viper >> Repair and Diagnosis >> Electrical >> Charging Systems >> Battery System >> Battery >> Removal

Battery System: Battery: Removal

  1. Make sure ignition switch is in OFF position and all accessories are turned OFF.
  2. The battery is located in the trunk.
  3. Remove the screws attaching the battery cover and remove the cover.
  4. Disconnect the battery cables from the battery terminals. Remove the battery negative cable first
  5. Remove the battery hold down clamp (Fig 1 ) and remove the battery from the vehicle.

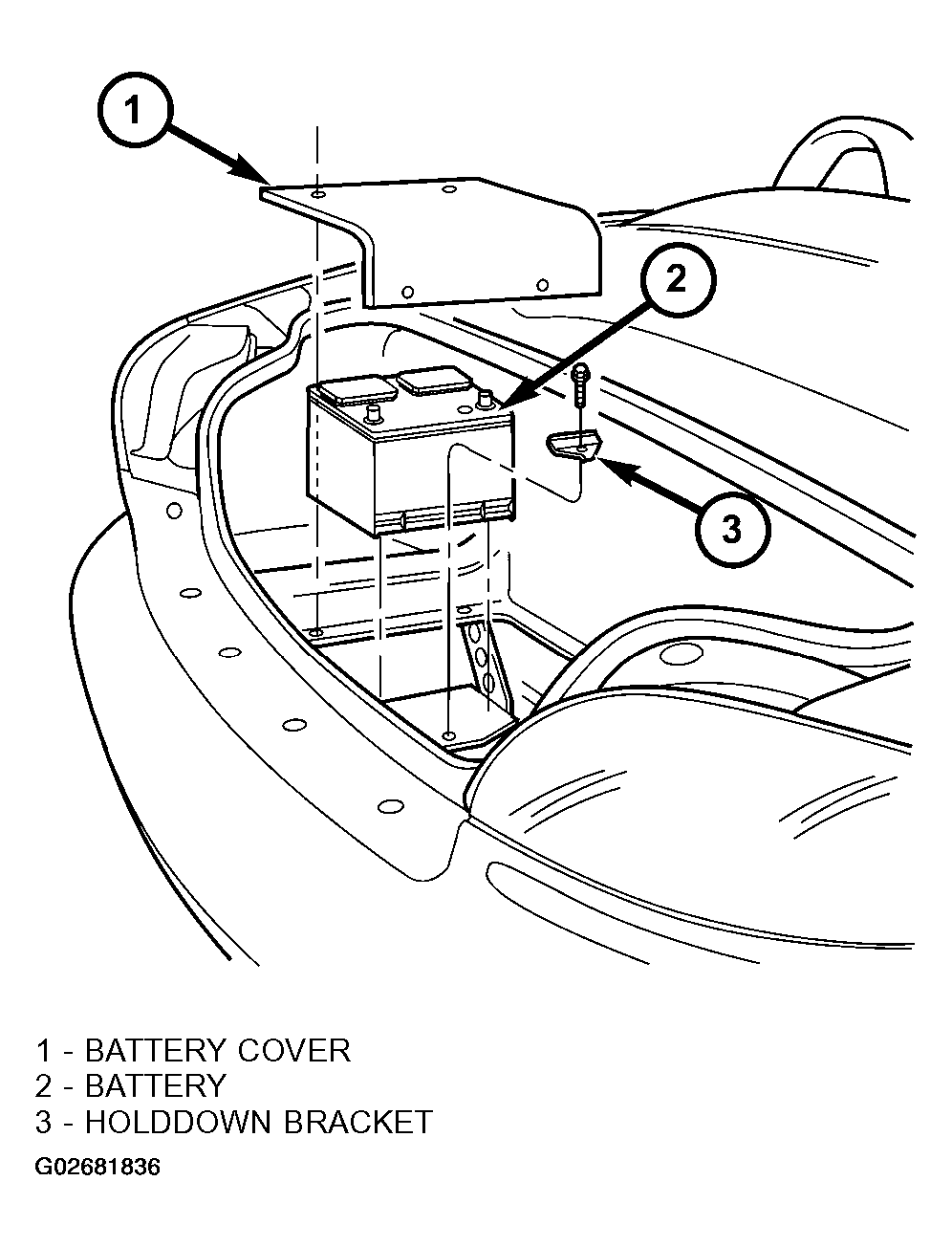

Fig 1: Identifying Battery Location
G02681836Courtesy of DAIMLERCHRYSLER CORP.
