Battery Tray: Description

The battery is placed in a stamped metal tray located in the trunk. (Fig 1 ). The battery tray is welded in place and cannot be removed from the vehicle.

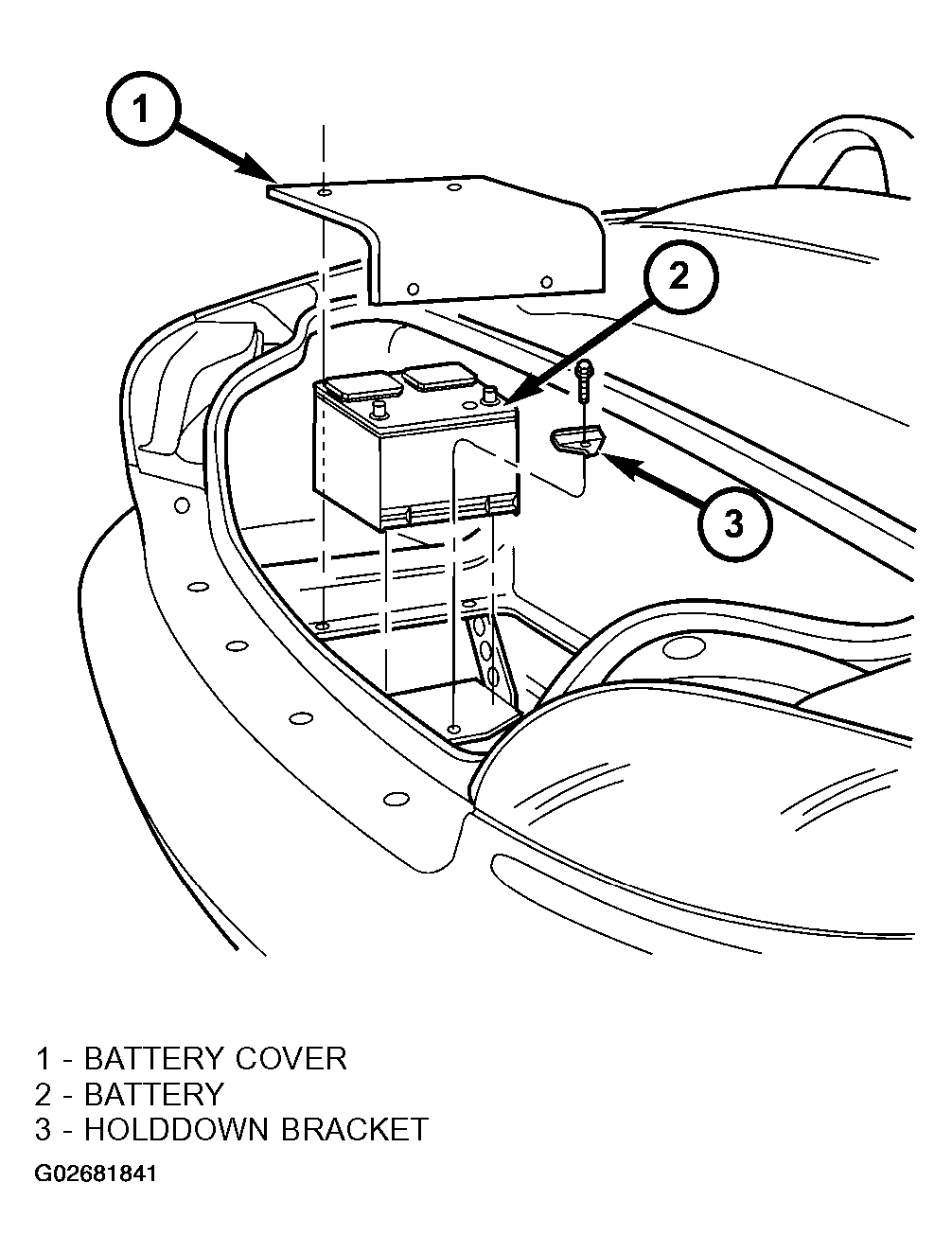

Fig 1: Identifying Battery Location
G02681841Courtesy of DAIMLERCHRYSLER CORP.
