Right Tail/Stop Lamp Connector End View
Right Tail/Stop Lamp Connector End View

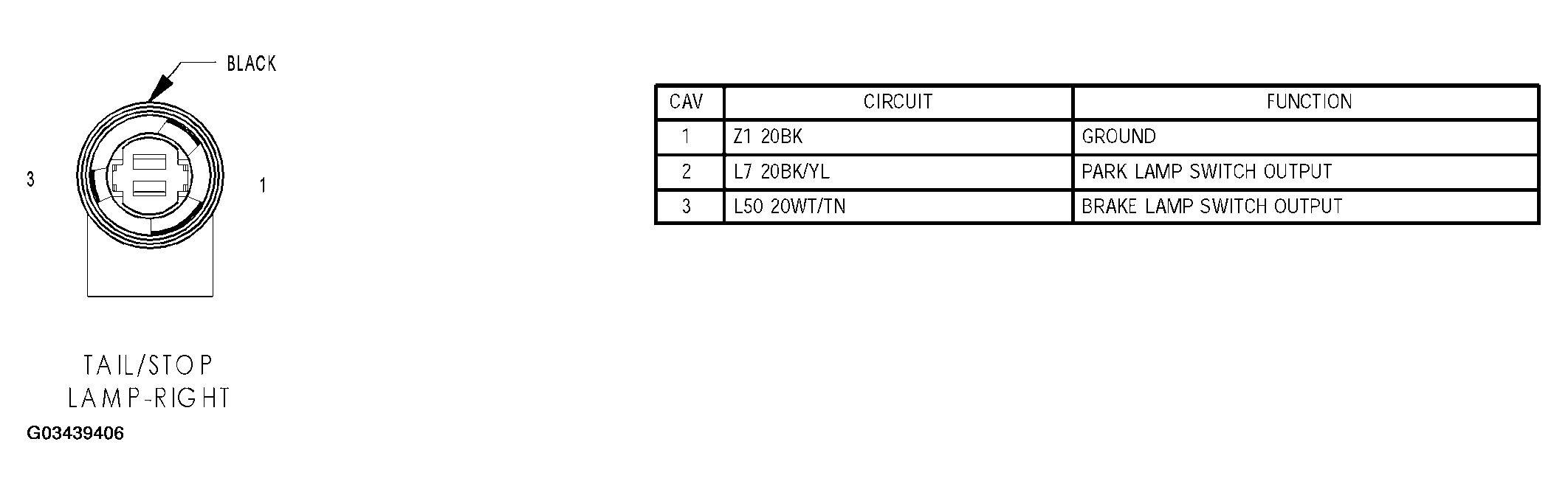

Fig 1: Right Tail/Stop Lamp Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
