Powertrain Control Module Connector End View (C3)

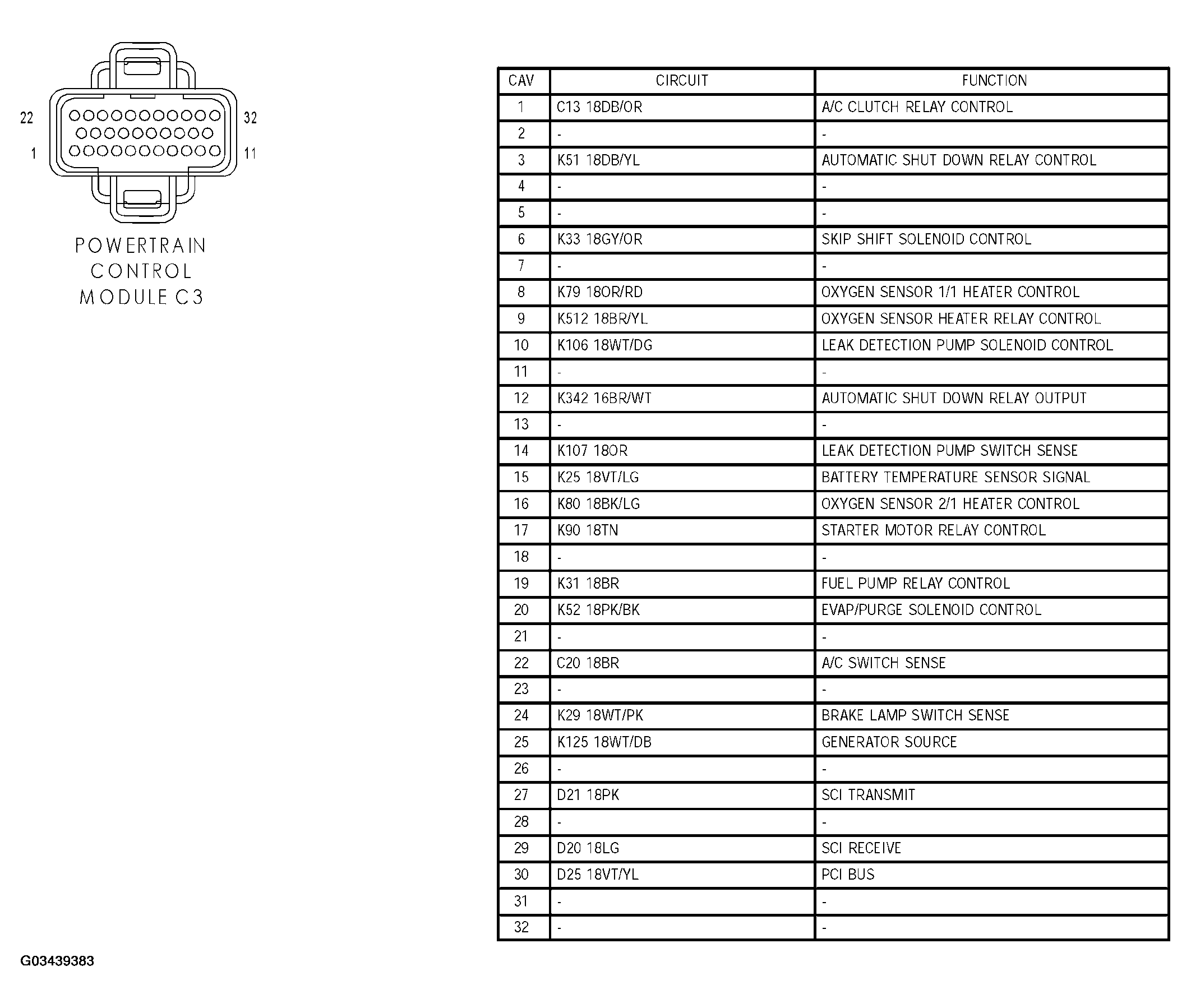

Fig 1: Powertrain Control Module Connector End View (C3)

G03439383

Courtesy of DAIMLERCHRYSLER CORP.
