Powertrain Control Module Connector End View (C2)

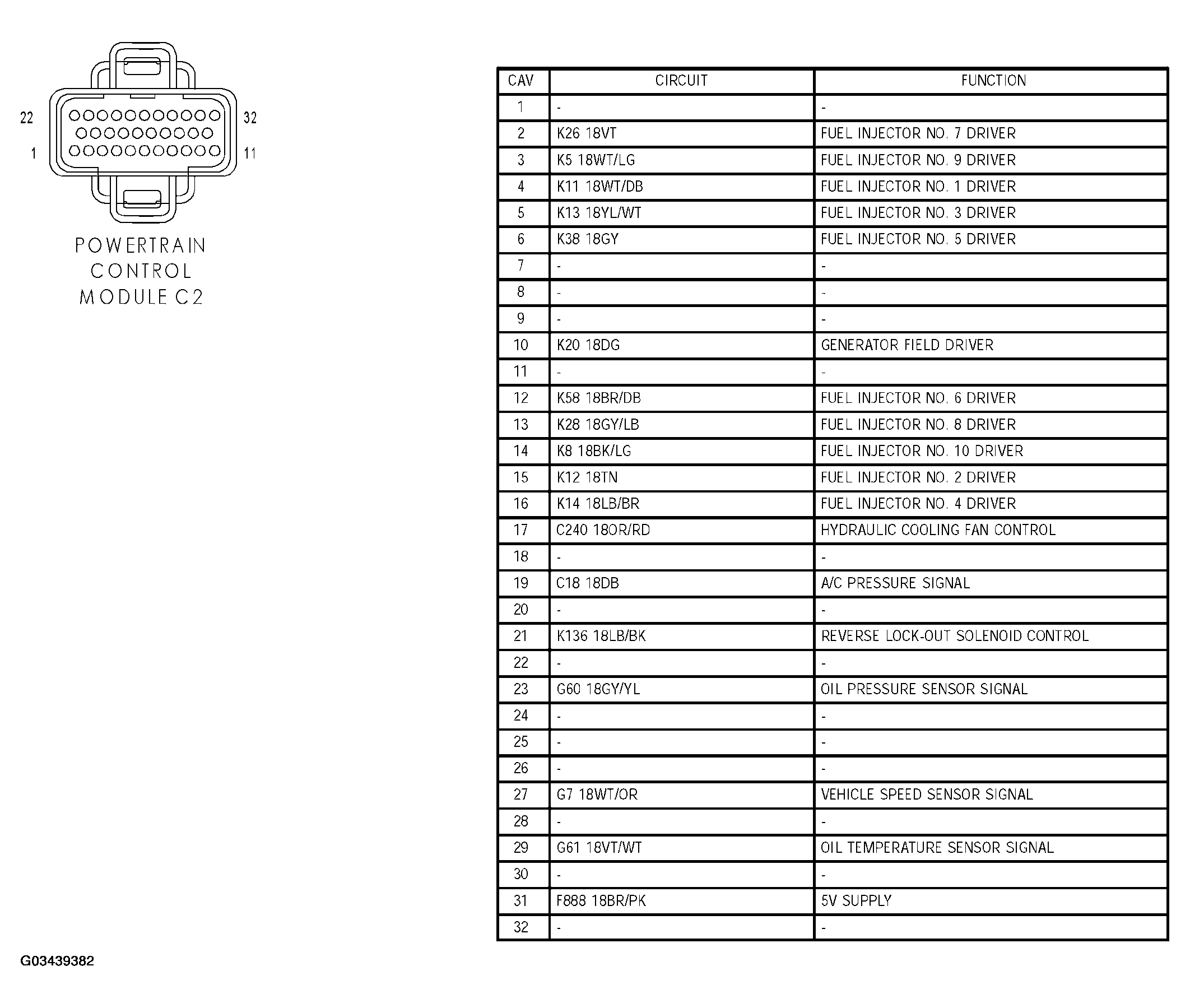

Fig 1: Powertrain Control Module Connector End View (C2)

G03439382

Courtesy of DAIMLERCHRYSLER CORP.
