Power Amplifier Connector End View (C1)

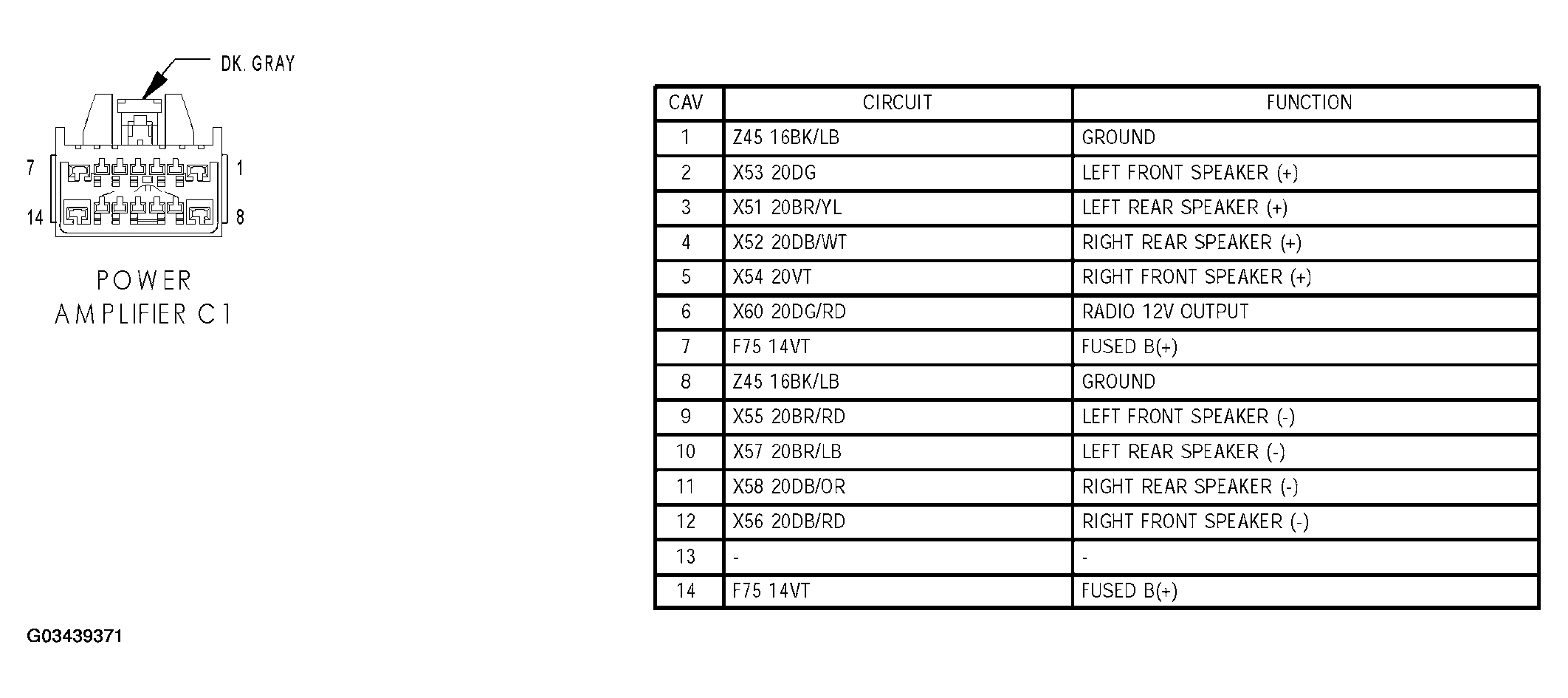

Fig 1: Power Amplifier Connector End View (C1)

G03439371

Courtesy of DAIMLERCHRYSLER CORP.
