Passenger Window Up Relay Connector End View

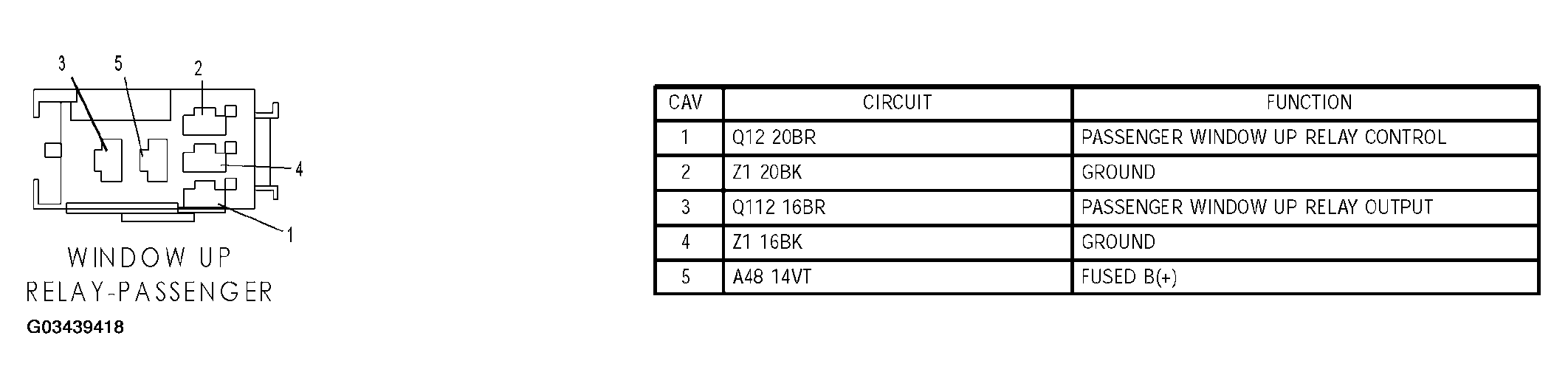

Fig 1: Passenger Window Up Relay Connector End View

G03439418

Courtesy of DAIMLERCHRYSLER CORP.
