Hydraulic Cooling Module Connector End View

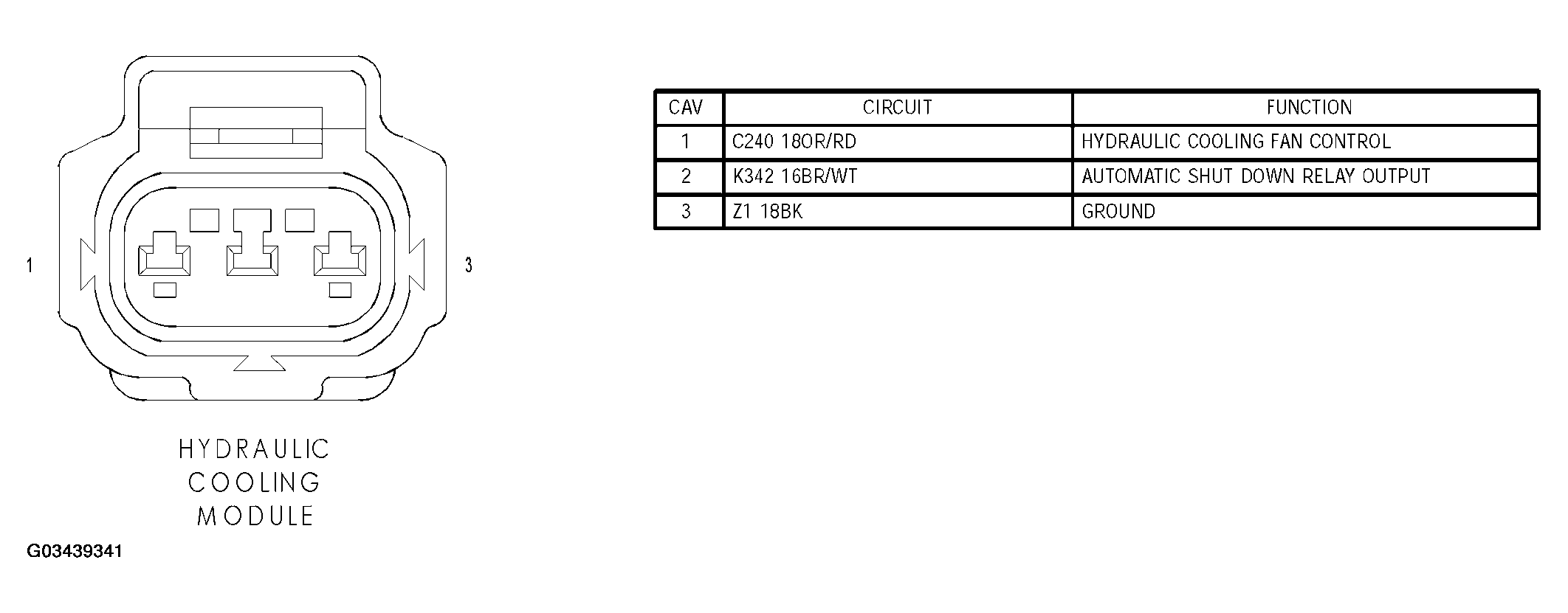

Fig 1: Hydraulic Cooling Module Connector End View

G03439341

Courtesy of DAIMLERCHRYSLER CORP.
