Cigar Lighter Outlet Connector End View

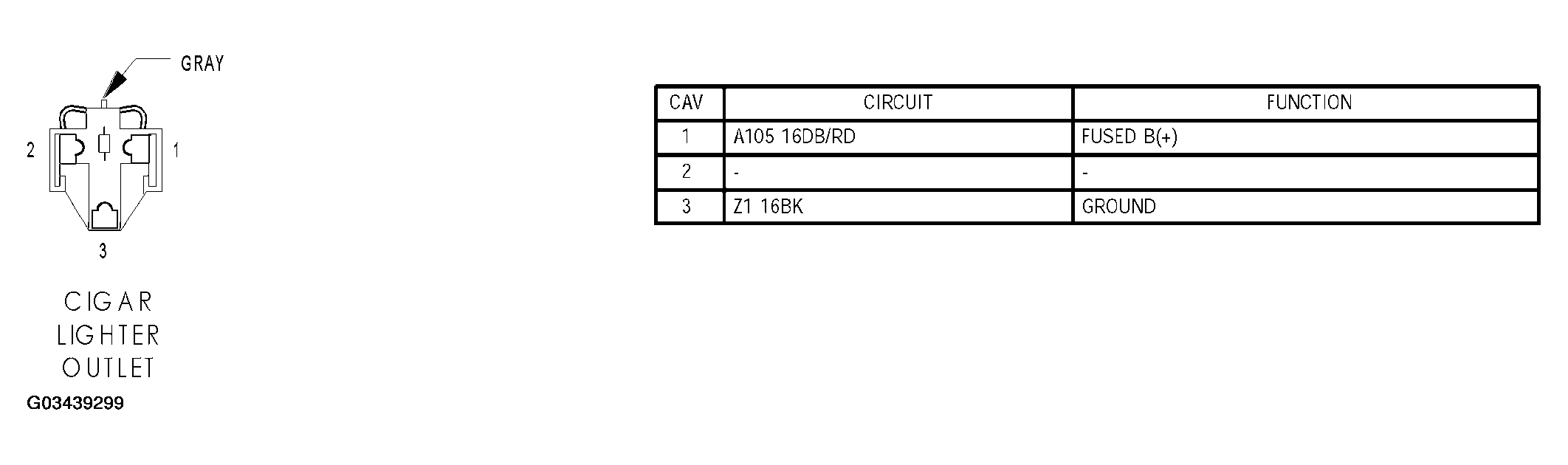

Fig 1: Cigar Lighter Outlet Connector End View

G03439299

Courtesy of DAIMLERCHRYSLER CORP.
