Center High Mounted Stop Lamp Connector End View

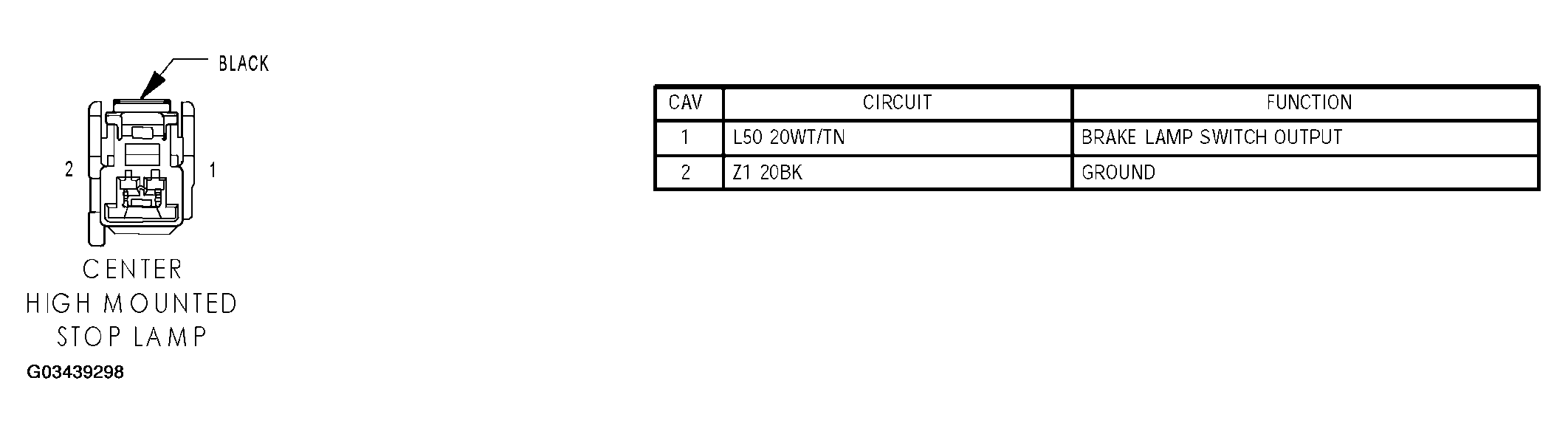

Fig 1: Center High Mounted Stop Lamp Connector End View

G03439298

Courtesy of DAIMLERCHRYSLER CORP.
