Camshaft Position Sensor Connector End View

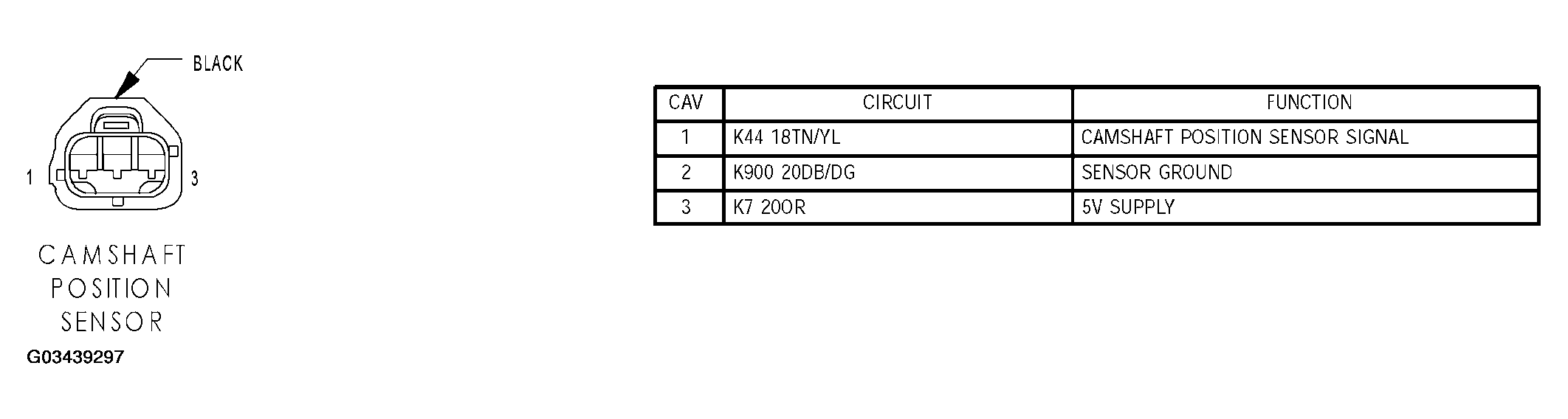

Fig 1: Camshaft Position Sensor Connector End View

G03439297

Courtesy of DAIMLERCHRYSLER CORP.
