Body Control Module Connector End View (C5)

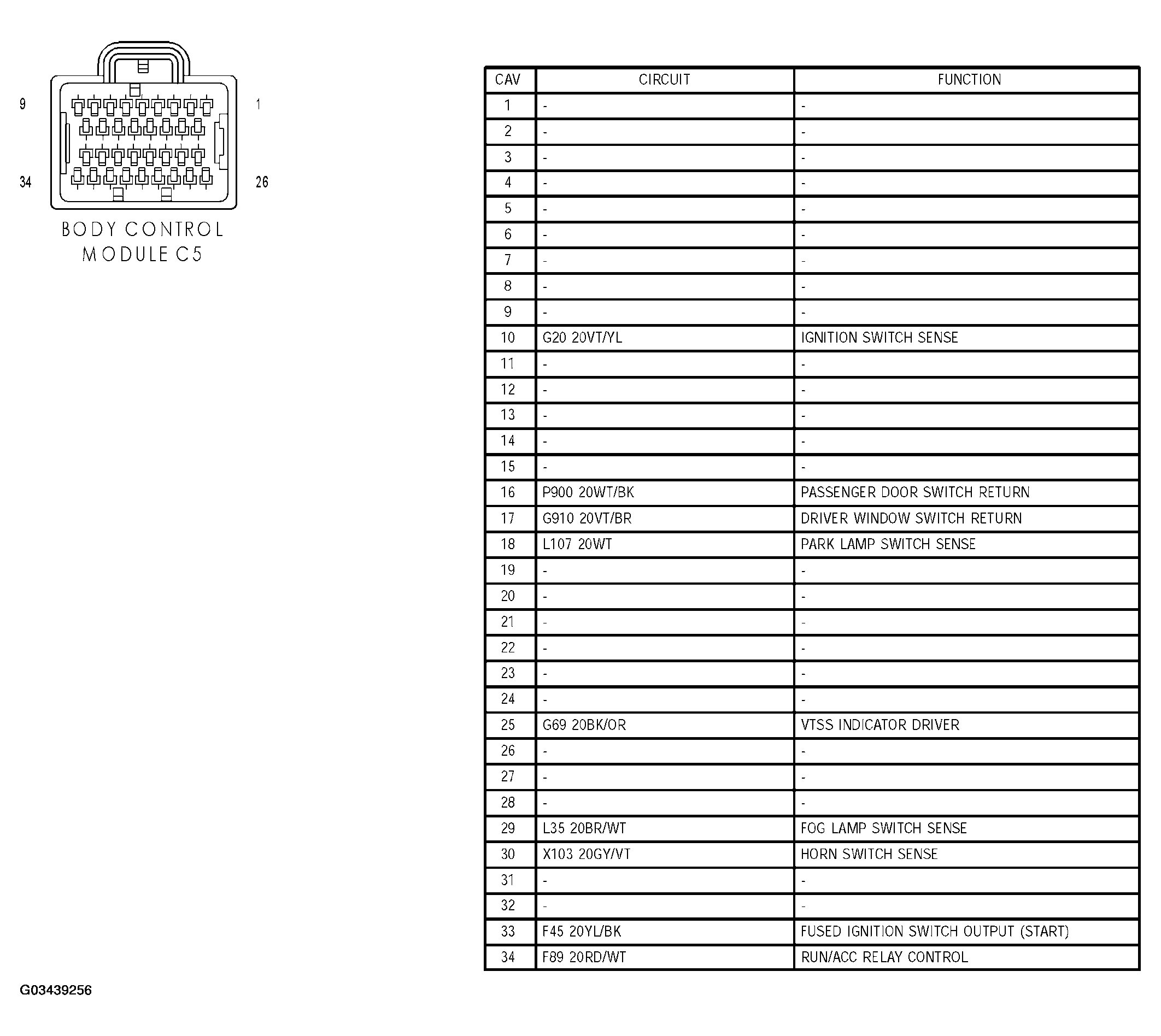

Fig 1: Body Control Module Connector End View (C5)

G03439256

Courtesy of DAIMLERCHRYSLER CORP.
