Body Control Module Connector End View (C3)

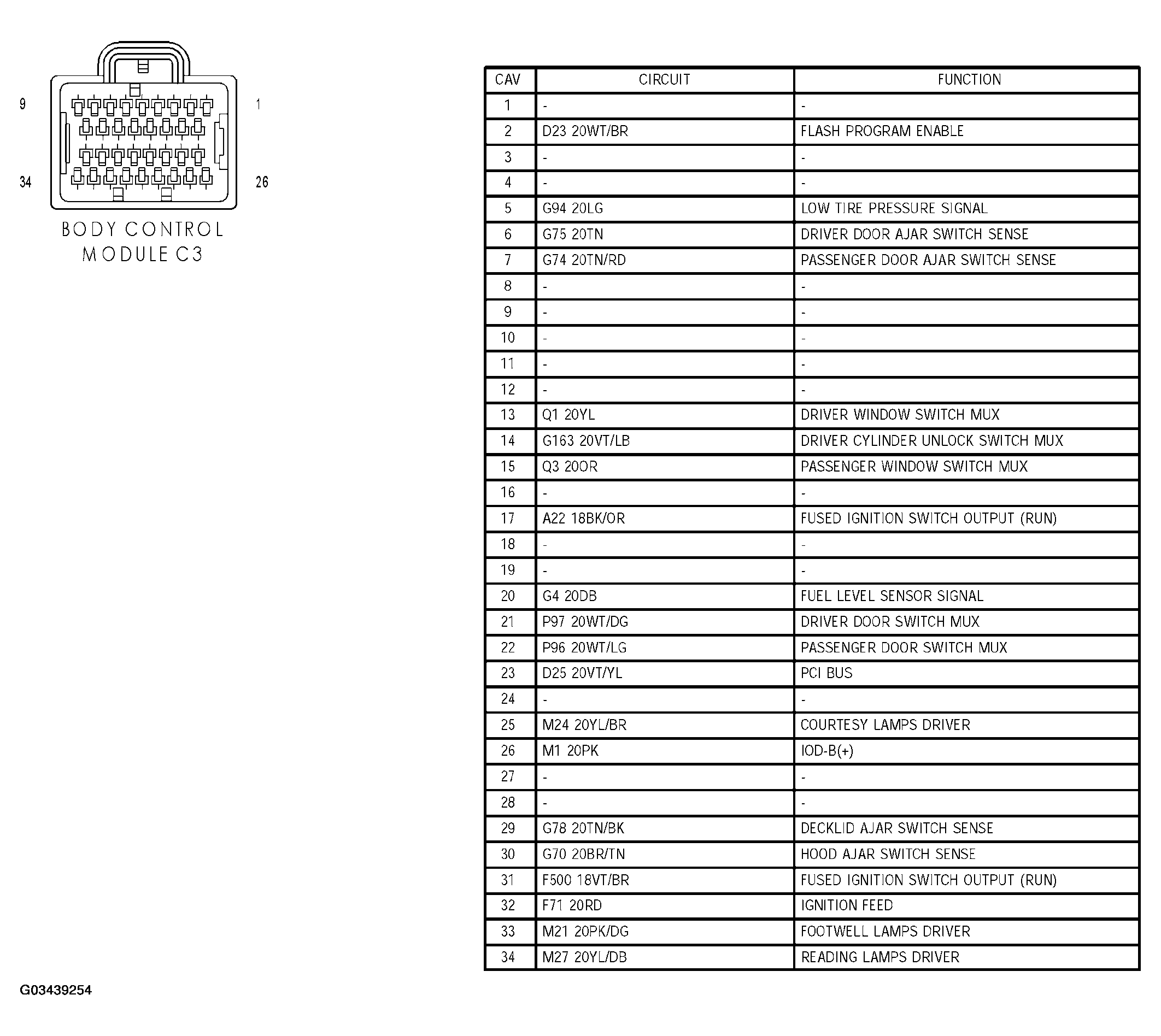

Fig 1: Body Control Module Connector End View (C3)

G03439254

Courtesy of DAIMLERCHRYSLER CORP.
