Verification Tests

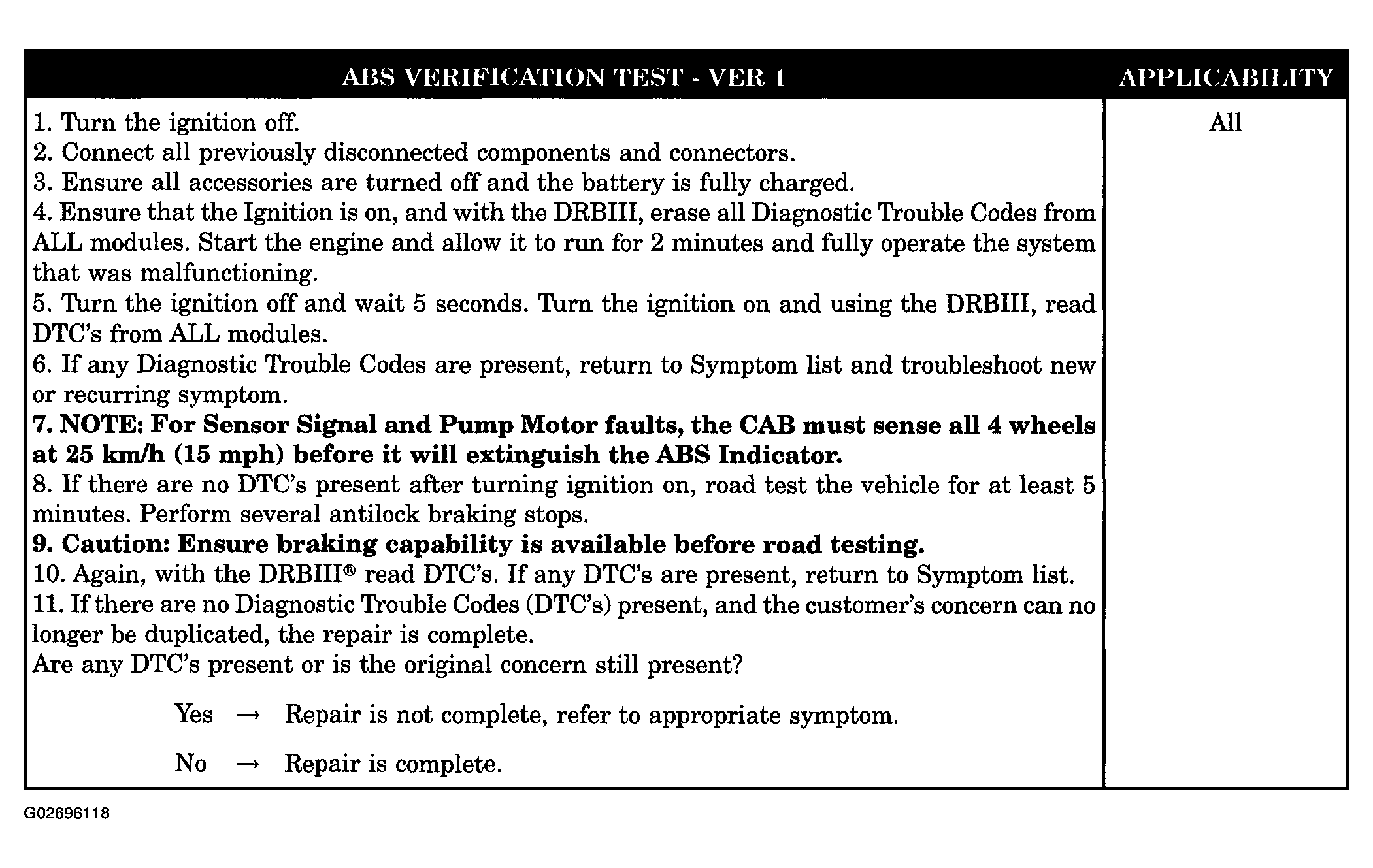

Fig 1: ABS Verification Test - VER 1

G02696118

Courtesy of DAIMLERCHRYSLER CORP.
