Cloth Support Panel: Removal

  1. Roll down both door windows.
  2. Unlatch the convertible top.

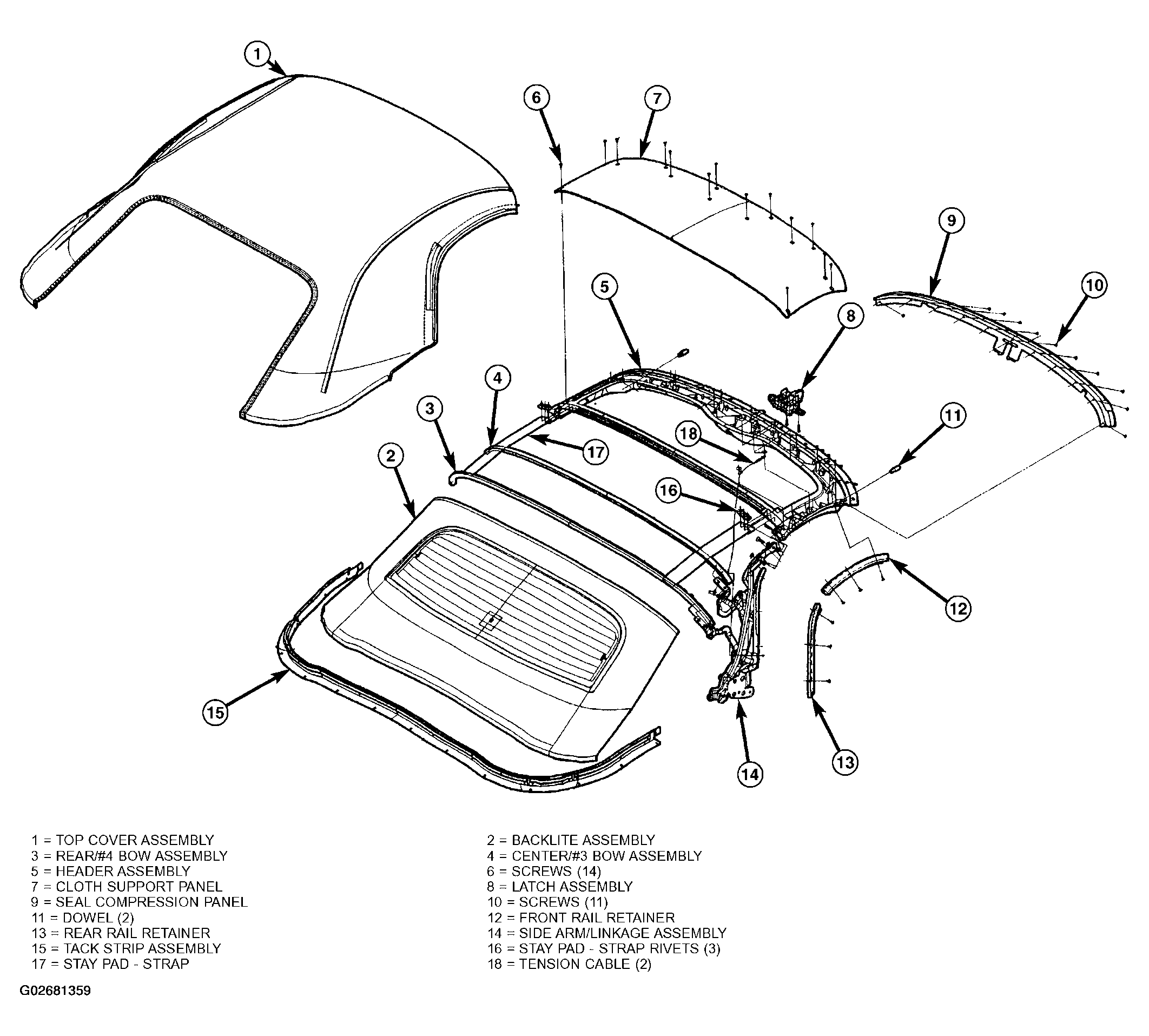

  3. Remove the front weatherstrip retainers. (Figure )
  4. Remove the header molding.
  5. Remove the staples from the cover assembly to the header assembly.
  6. Flip the cover back.
  7. Remove the 14 screws and remove the header support panel.
