Antenna Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the Instrument panel (Refer to INSTRUMENT PANEL & PAD ASSEMBLY ).
  3. Remove mounting fasteners from module (Fig 1 ).

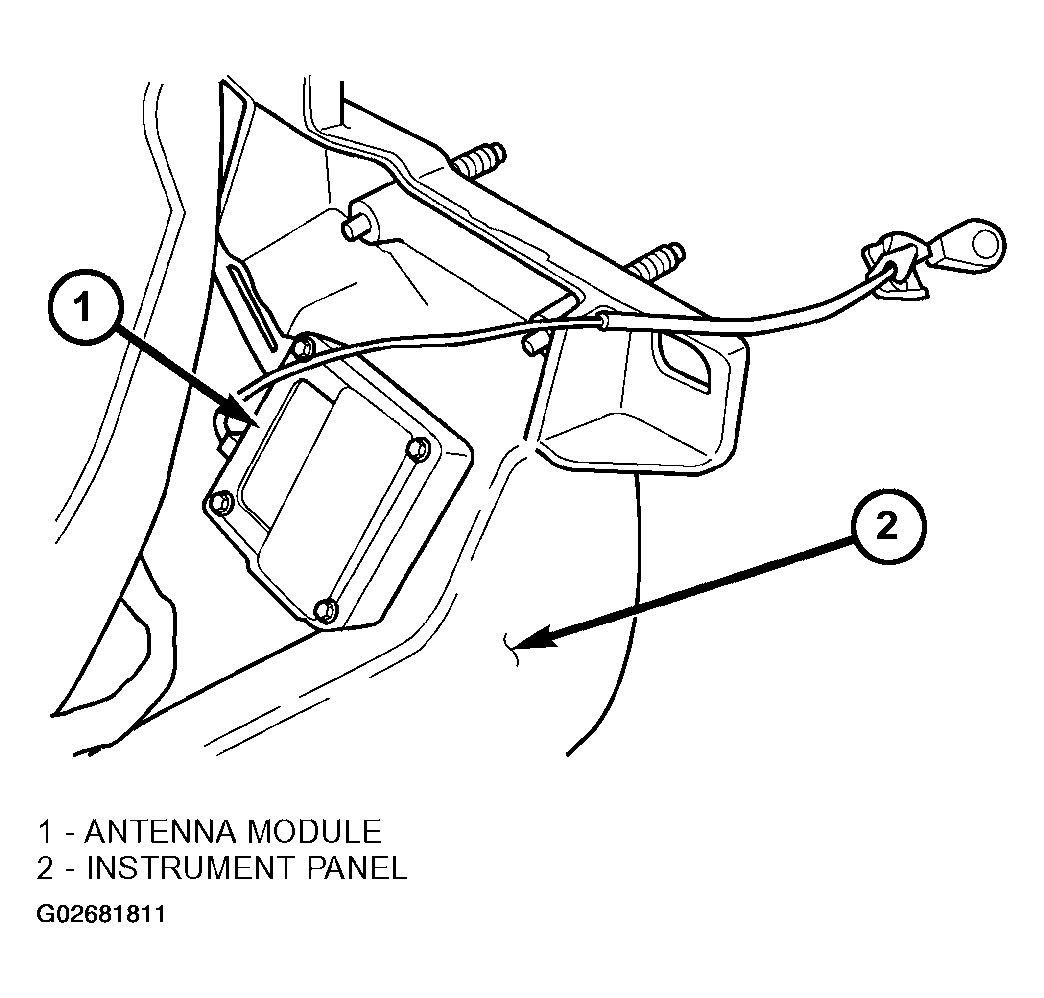

    Fig 1: Antenna Module
    G02681811Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect antenna module cable and electrical harness connector (Fig 2 ).

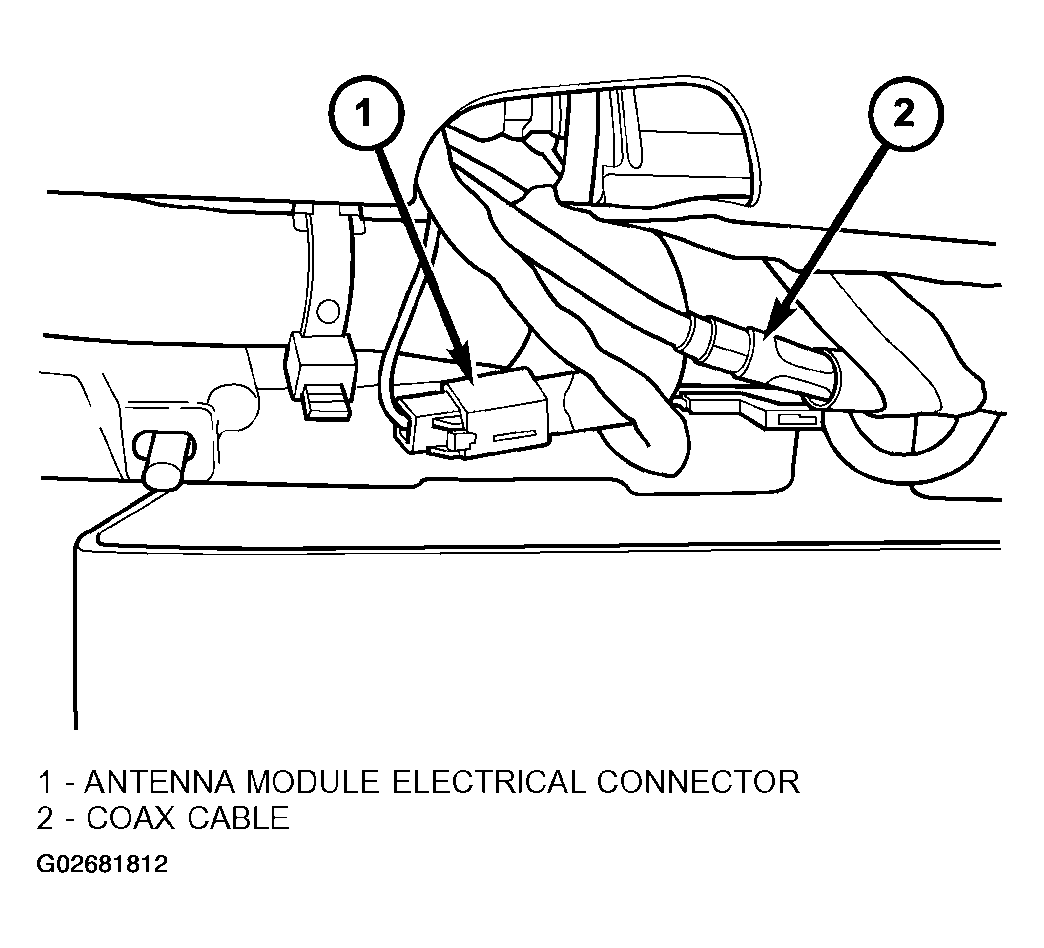

    Fig 2: Antenna Module Cable
    G02681812Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove antenna module from instrument panel.
