Wiper Control Module Connector End View

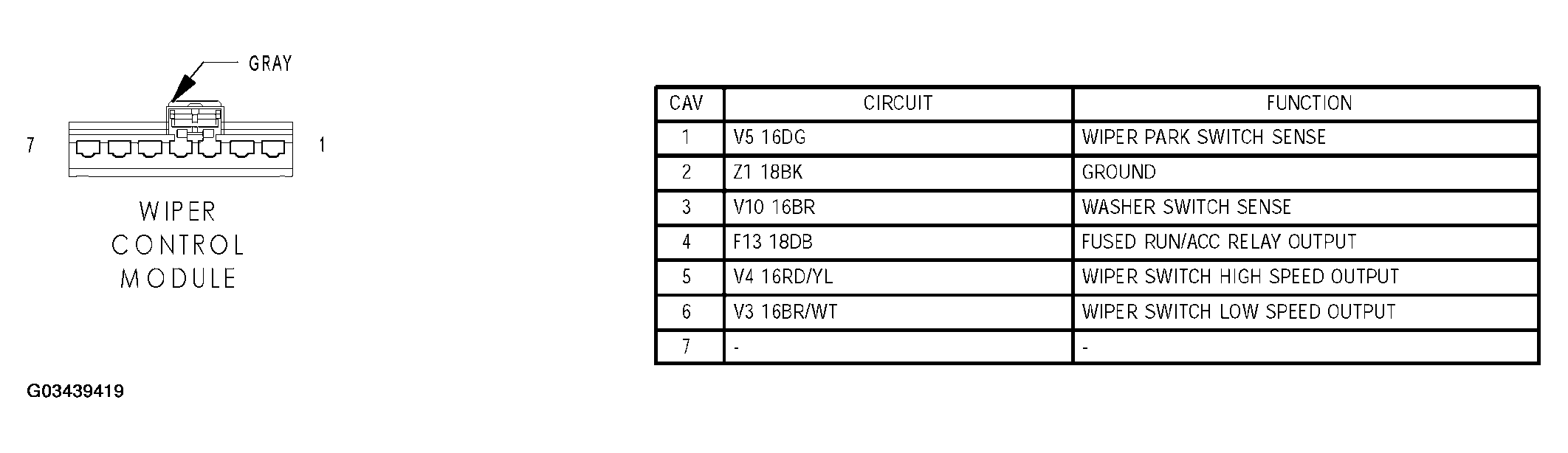

Fig 1: Wiper Control Module Connector End View

G03439419

Courtesy of DAIMLERCHRYSLER CORP.
