Remote Keyless Entry Module Connector End View

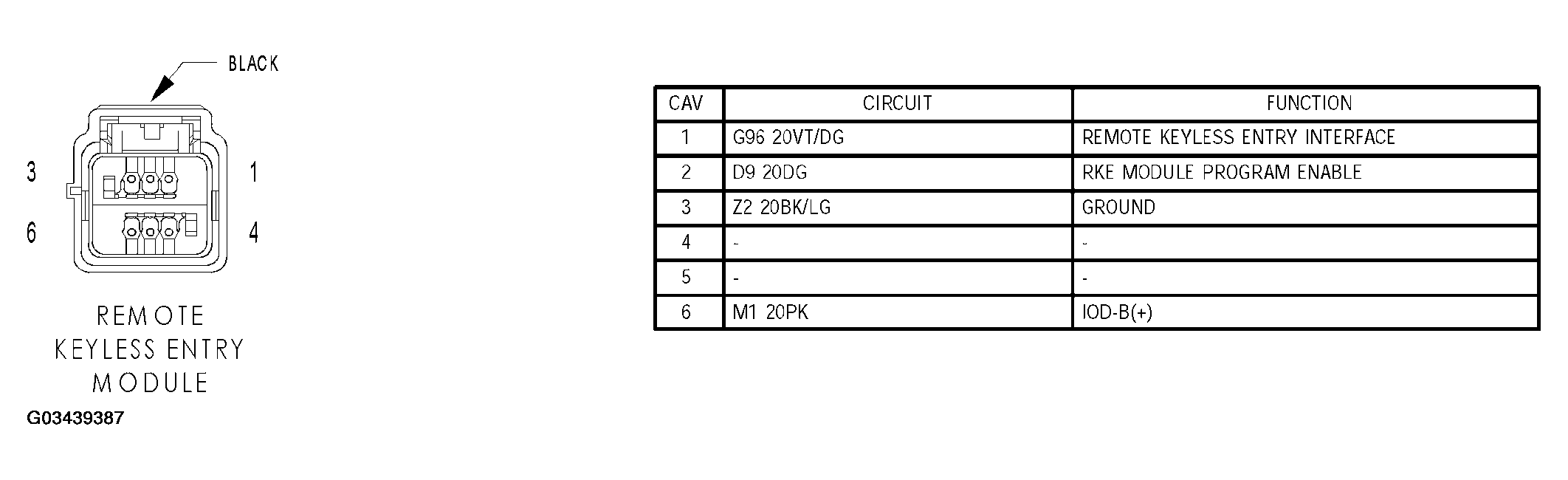

Fig 1: Remote Keyless Entry Module Connector End View

G03439387

Courtesy of DAIMLERCHRYSLER CORP.
