Connector PINOUTS

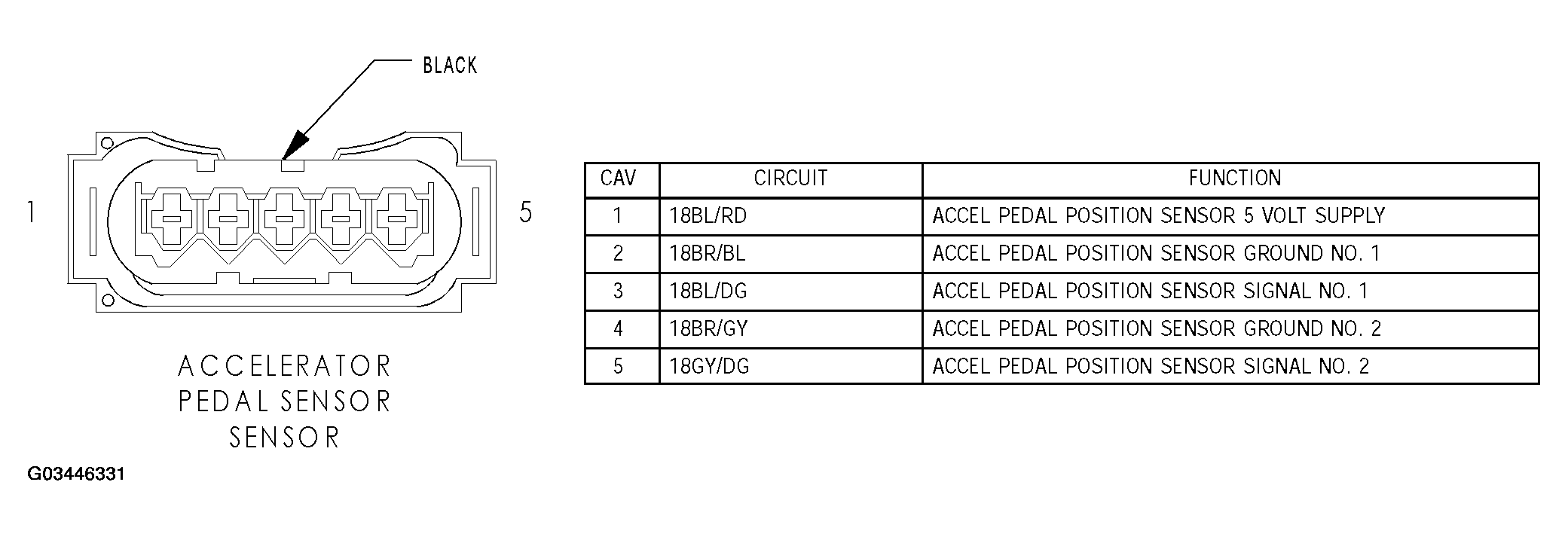

ACCELERATOR PEDAL POSITION SENSOR - BLACK

Fig 1: Identifying Accelerator Pedal Position Sensor - Black Connector

G03446331

Courtesy of DAIMLERCHRYSLER CORP.

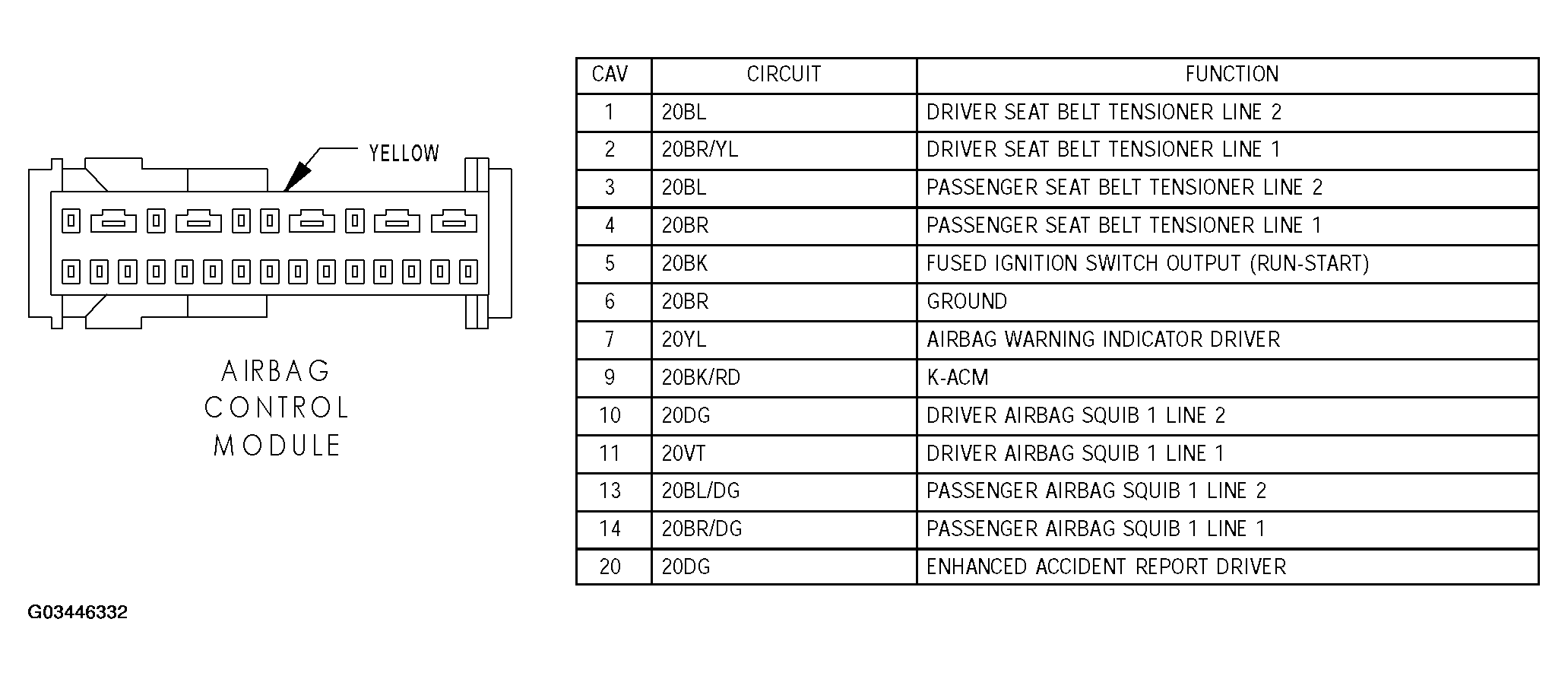

AIRBAG CONTROL MODULE - YELLOW

Fig 2: Identifying Airbag Control Module - Yellow Connector

G03446332

Courtesy of DAIMLERCHRYSLER CORP.

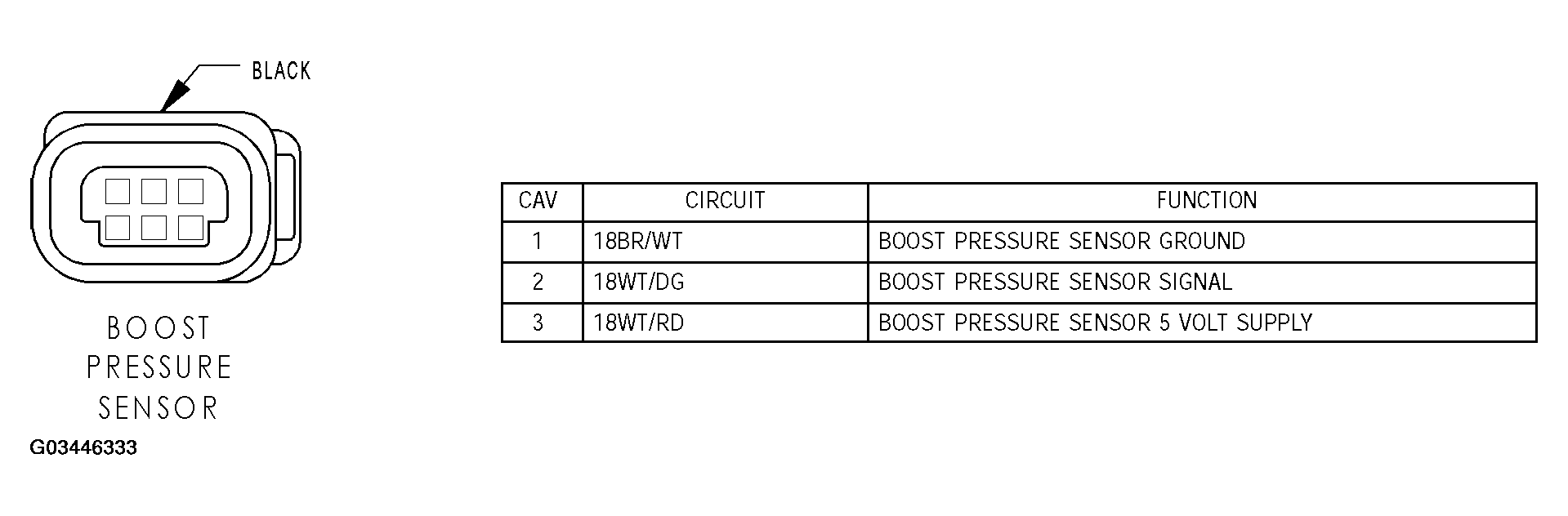

BOOST PRESSURE SENSOR - BLACK

Fig 3: Identifying Boost Pressure Sensor - Black Connector

G03446333

Courtesy of DAIMLERCHRYSLER CORP.

BOOST PRESSURE SOLENOID - BLACK

Fig 4: Identifying Boost Pressure Solenoid - Black Connector

G03446334

Courtesy of DAIMLERCHRYSLER CORP.

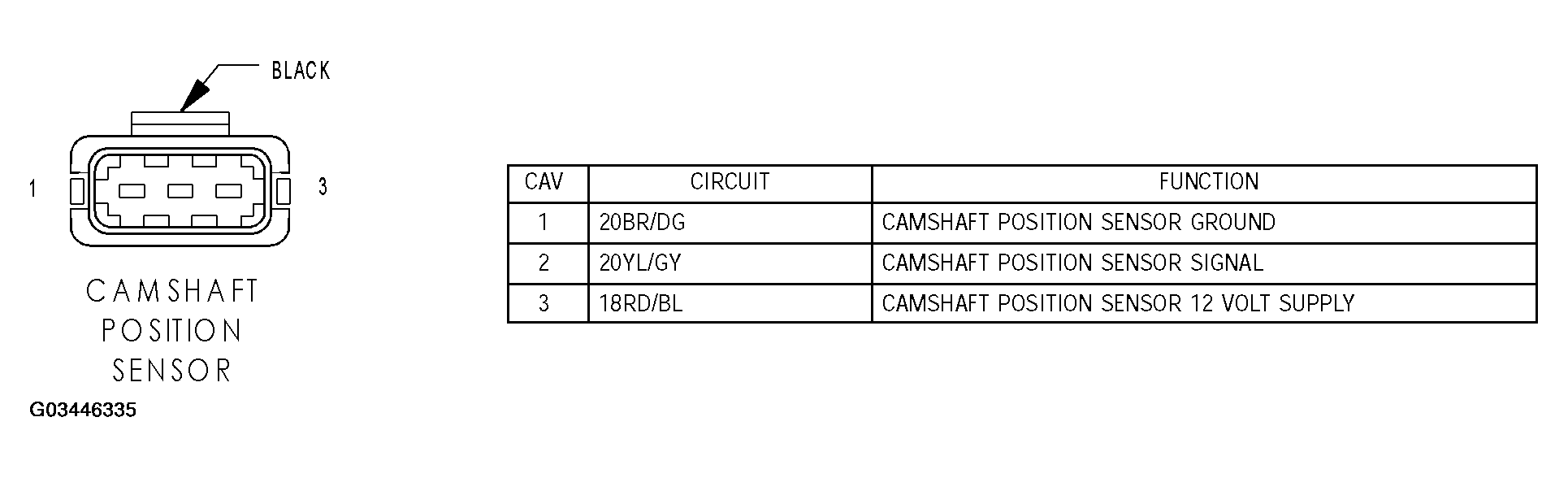

CAMSHAFT POSITION SENSOR - BLACK

Fig 5: Identifying Camshaft Position Sensor - Black Connector

G03446335

Courtesy of DAIMLERCHRYSLER CORP.

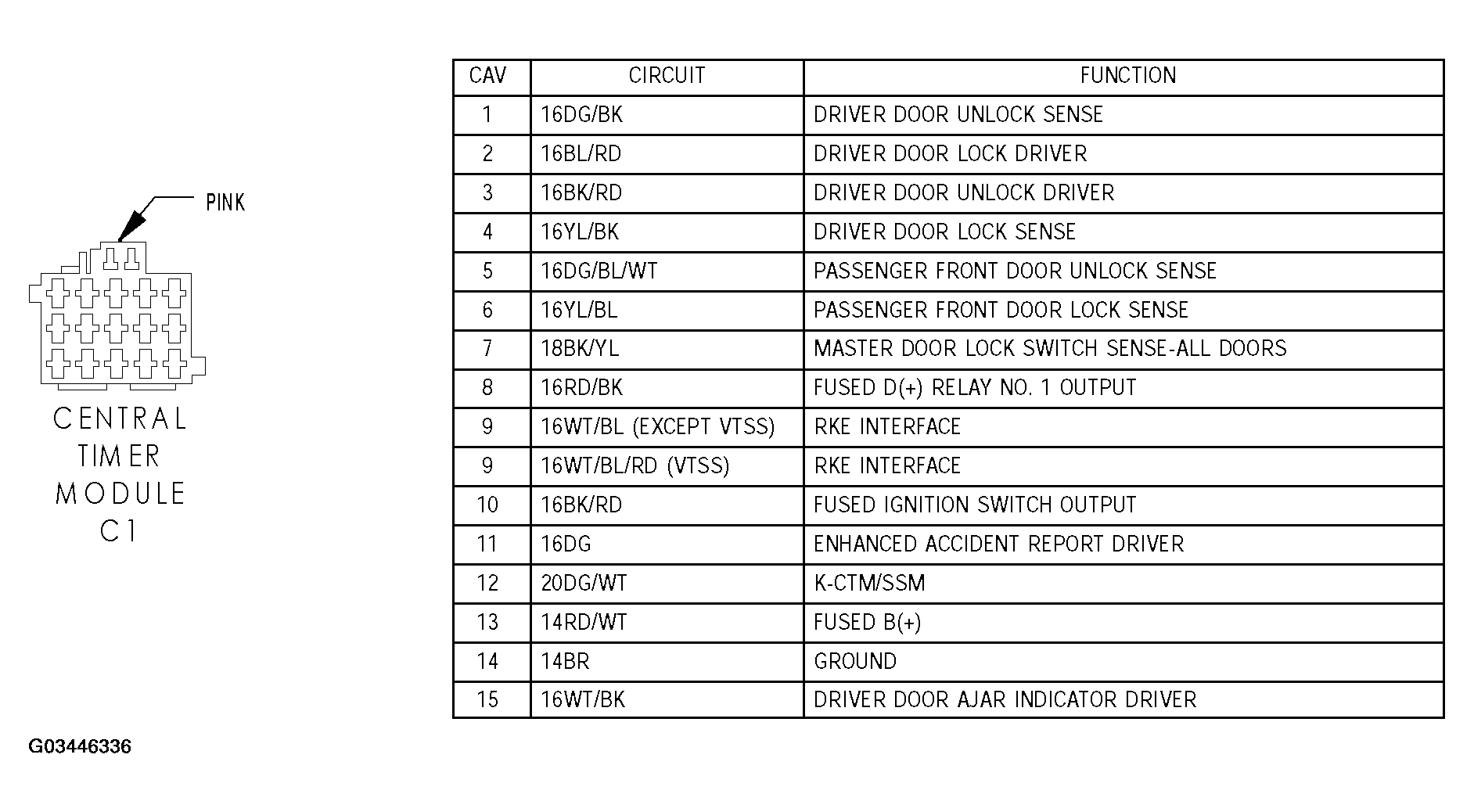

CENTRAL TIMER MODULE C1 - PINK

Fig 6: Identifying Central Timer Module C1 - Pink Connector

G03446336

Courtesy of DAIMLERCHRYSLER CORP.

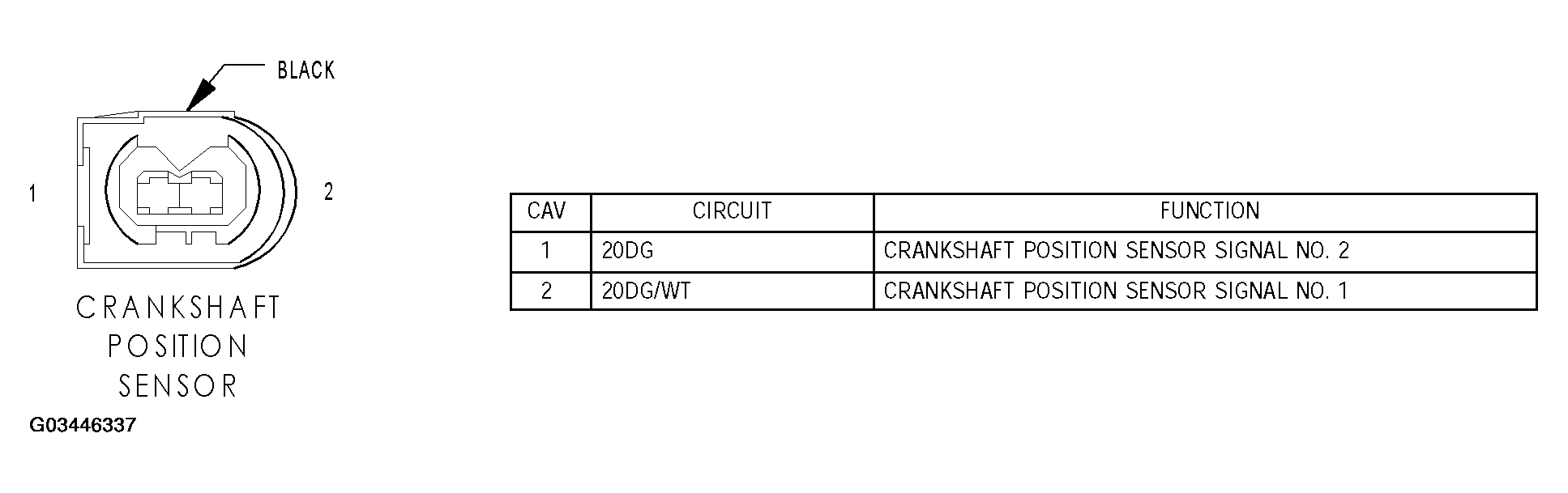

CRANKSHAFT POSITION SENSOR - BLACK

Fig 7: Identifying Crankshaft Position Sensor - Black Connector

G03446337

Courtesy of DAIMLERCHRYSLER CORP.

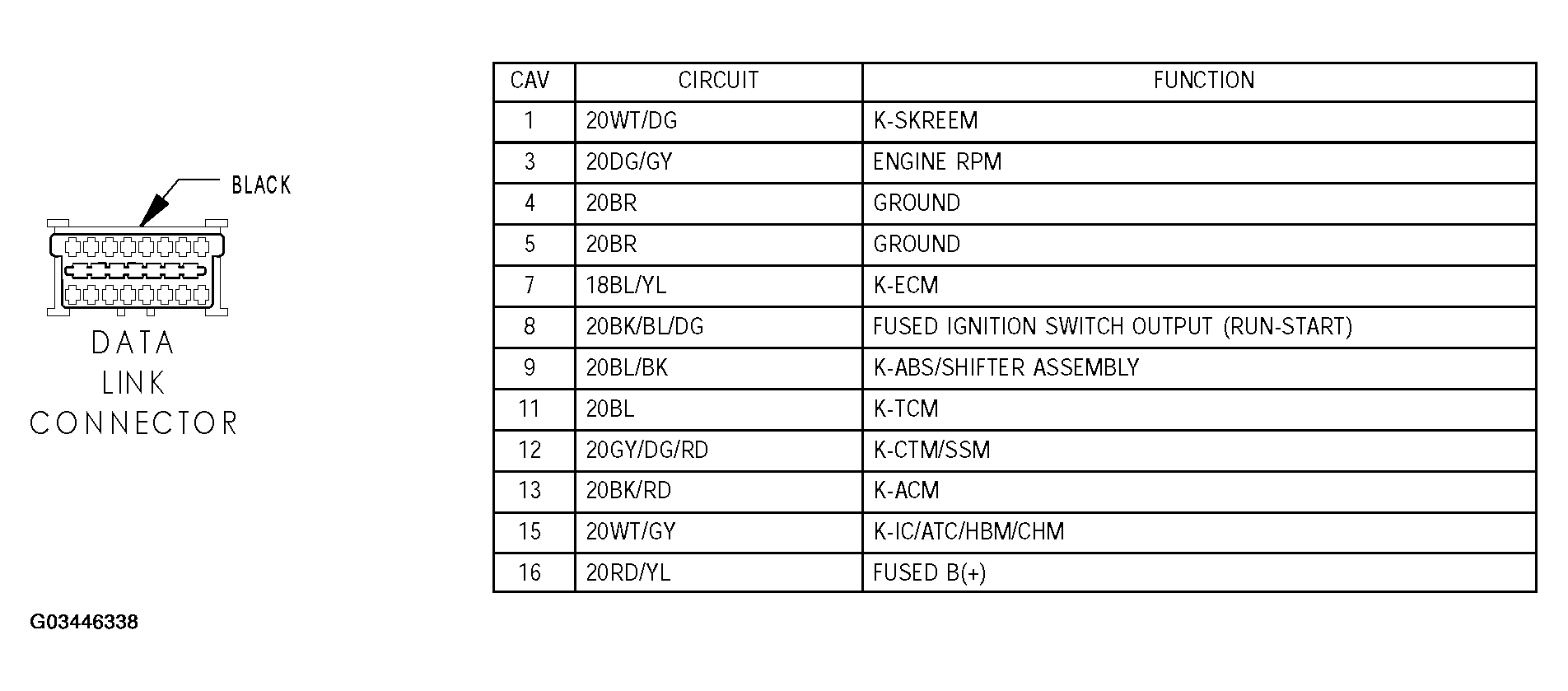

DATA LINK CONNECTOR - BLACK

Fig 8: Identifying Data Link Connector - Black Connector

G03446338

Courtesy of DAIMLERCHRYSLER CORP.

ENGINE CONTROL MODULE C1 - BLACK

Fig 9: Identifying Engine Control Module C1 - Black Connector

G03446339

Courtesy of DAIMLERCHRYSLER CORP.

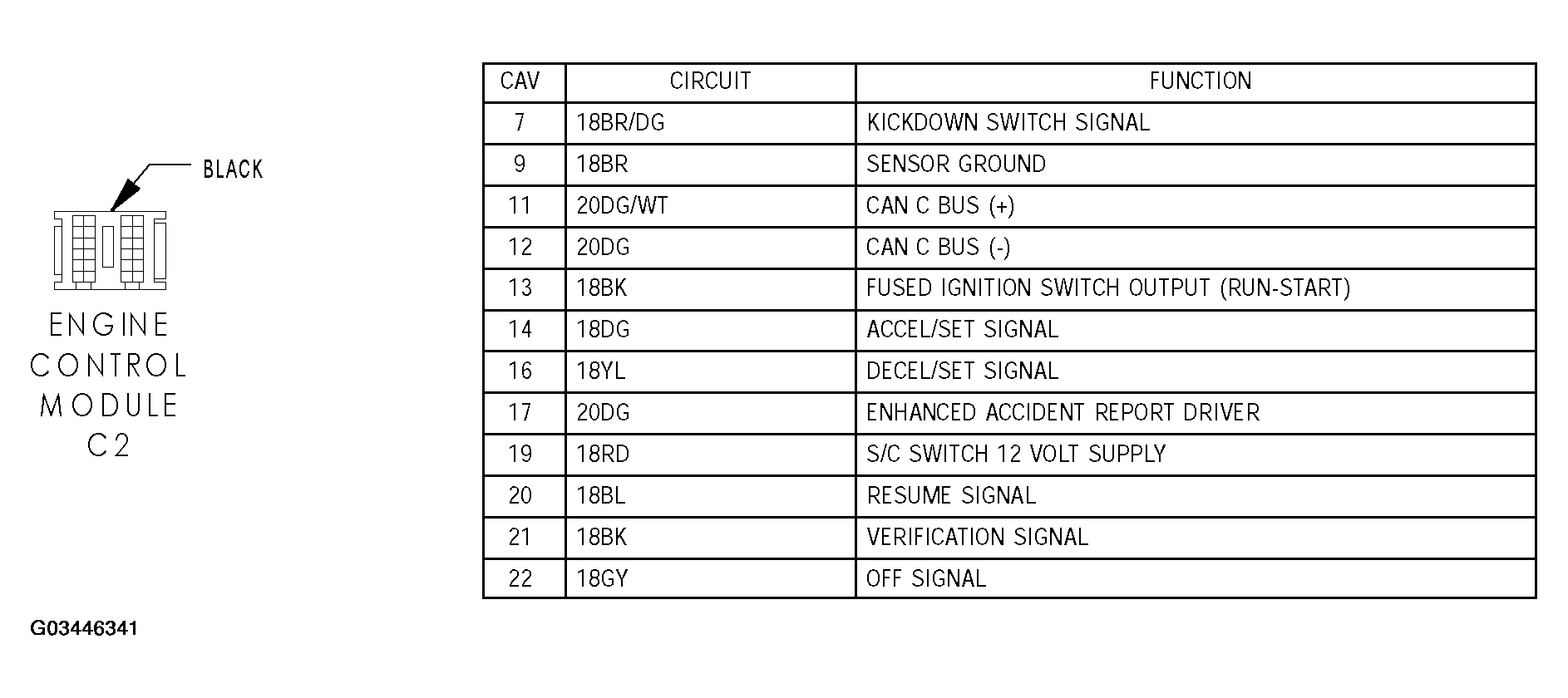

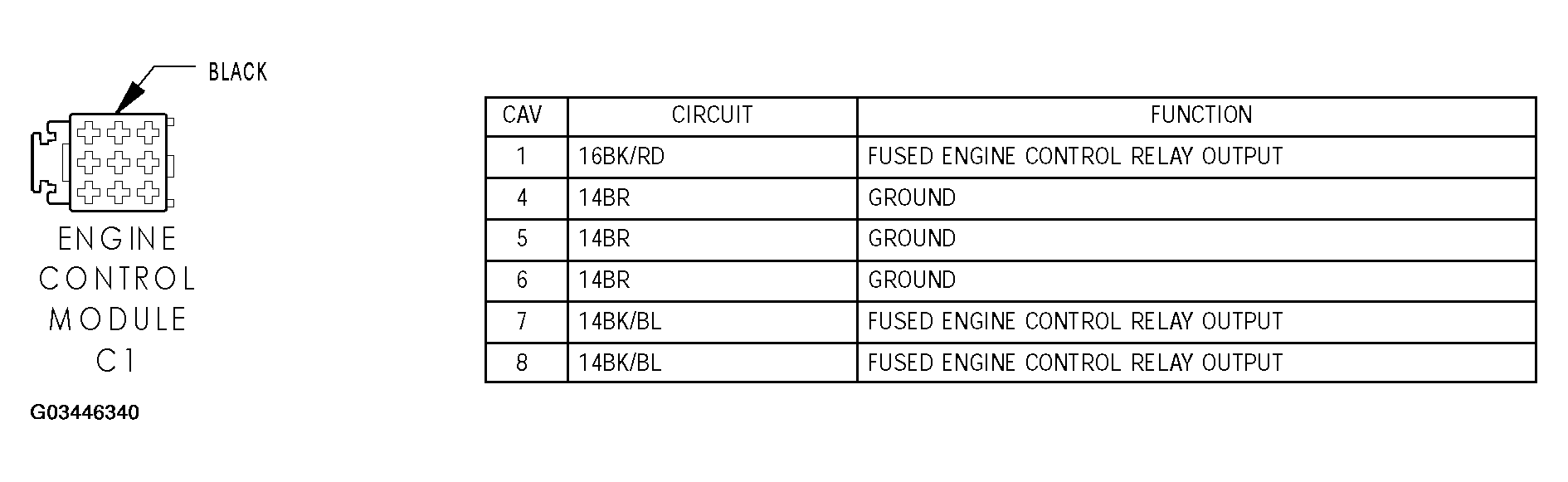

ENGINE CONTROL MODULE C2 - BLACK

Fig 10: Identifying Engine Control Module C2 - Black Connector

G03446340

Courtesy of DAIMLERCHRYSLER CORP.

EGR VALVE - BLACK

Fig 11: Identifying EGR Valve - Black Connector

G03446341

Courtesy of DAIMLERCHRYSLER CORP.

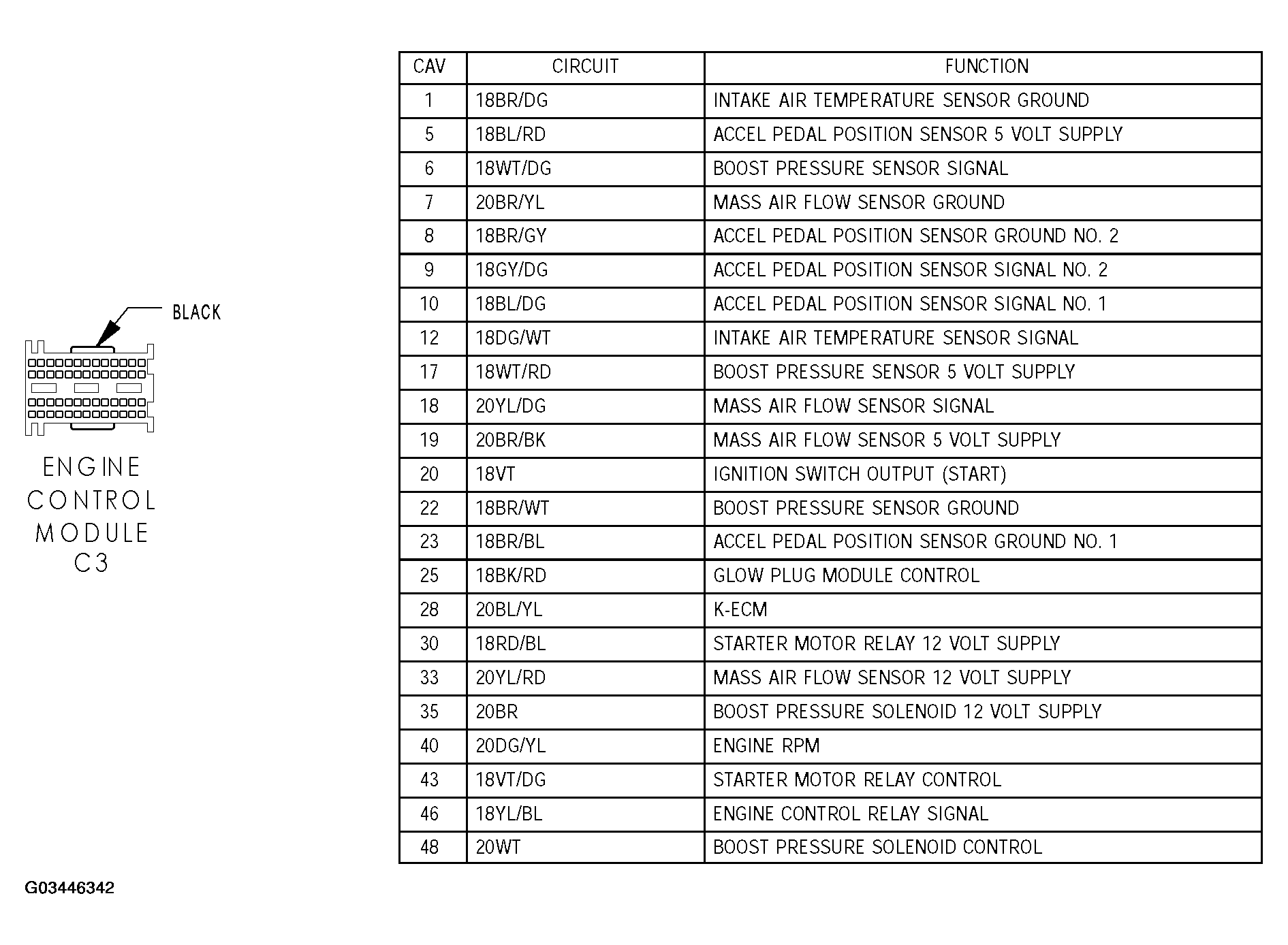

ENGINE CONTROL MODULE C3 - BLACK

Fig 12: Identifying Engine Control Module C3 - Black Connector

G03446342

Courtesy of DAIMLERCHRYSLER CORP.

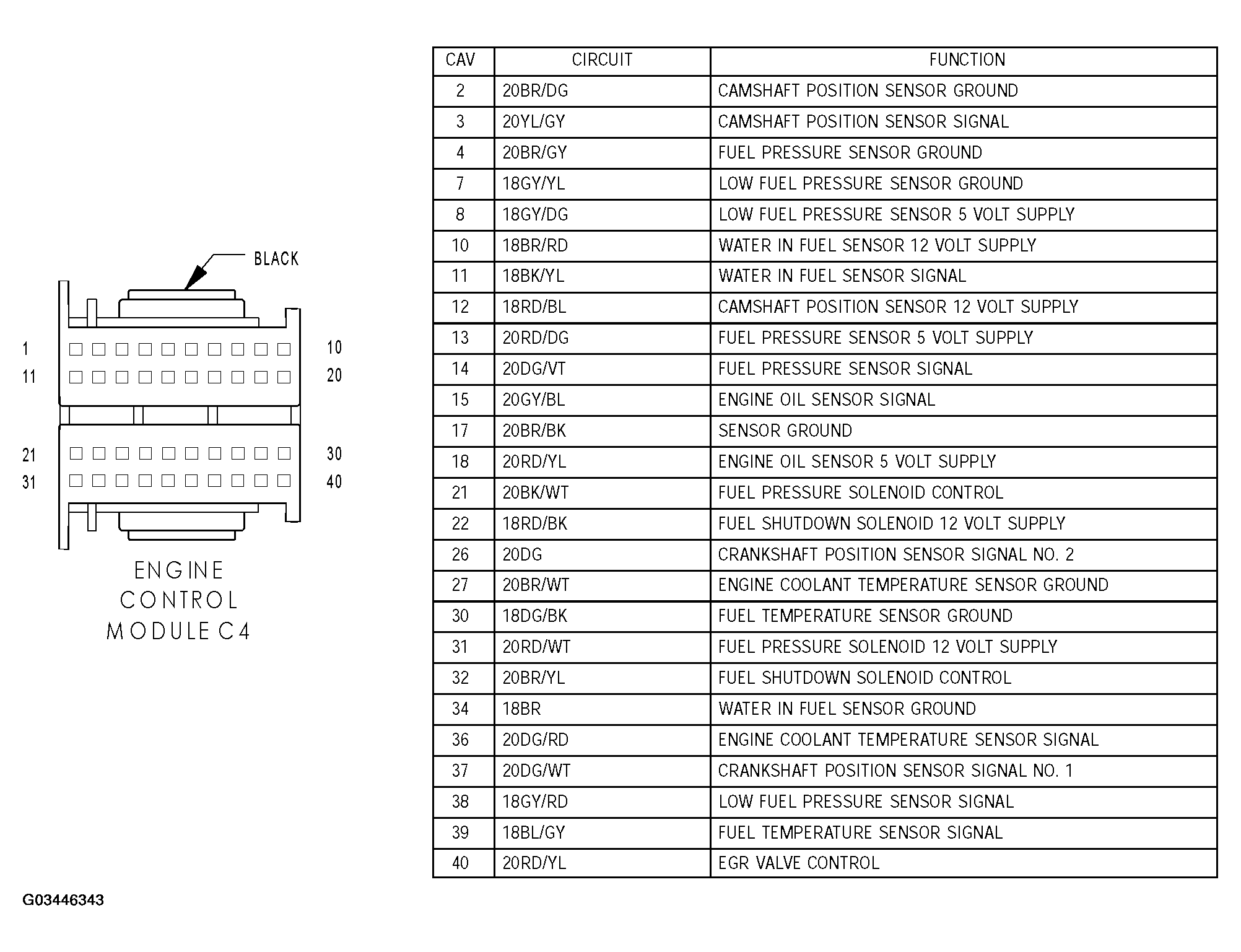

ENGINE CONTROL MODULE C4 - BLACK

Fig 13: Identifying Engine Control Module C4 - Black Connector

G03446343

Courtesy of DAIMLERCHRYSLER CORP.

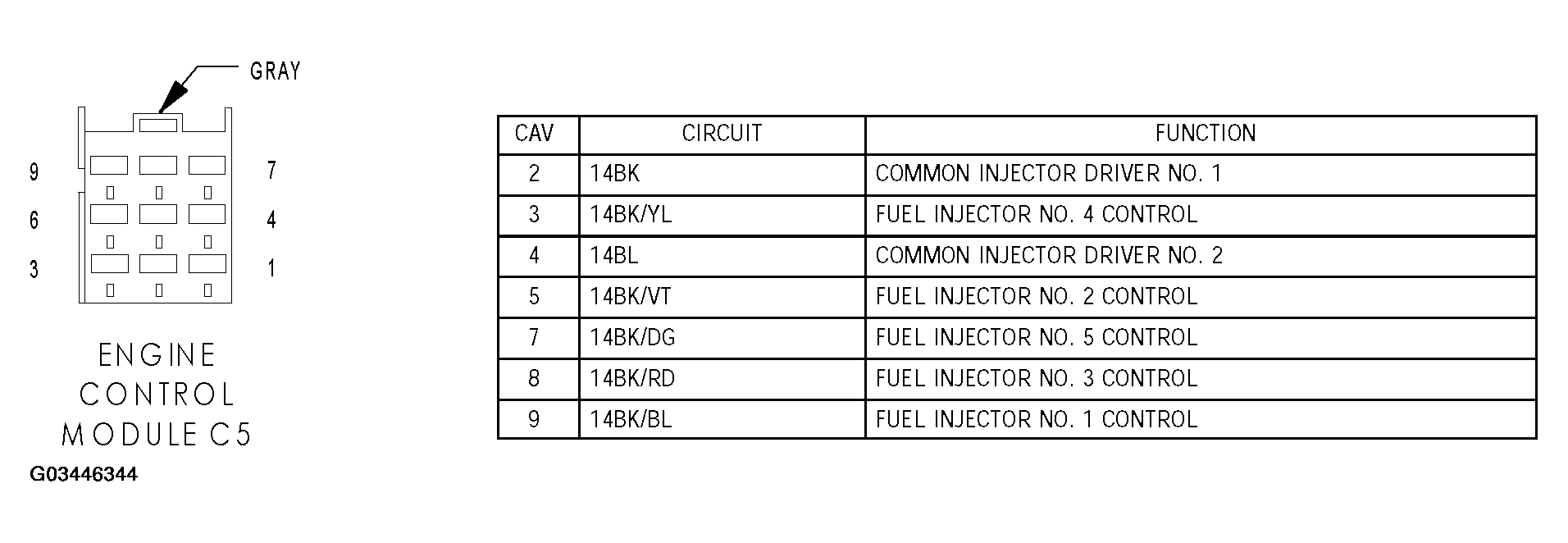

ENGINE CONTROL MODULE C5 - GRAY

Fig 14: Identifying Engine Control Module C5 - Gray Connector

G03446344

Courtesy of DAIMLERCHRYSLER CORP.

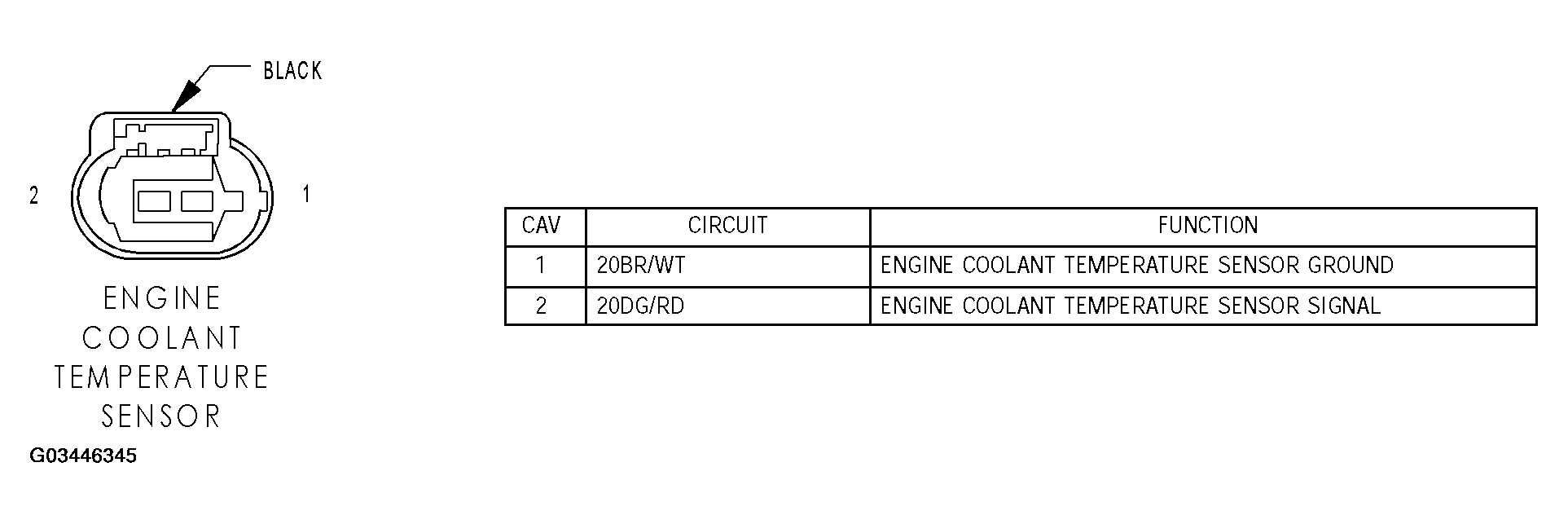

ENGINE COOLANT TEMPERATURE SENSOR - BLACK

Fig 15: Identifying Engine Coolant Temperature Sensor - Black Connector

G03446345

Courtesy of DAIMLERCHRYSLER CORP.

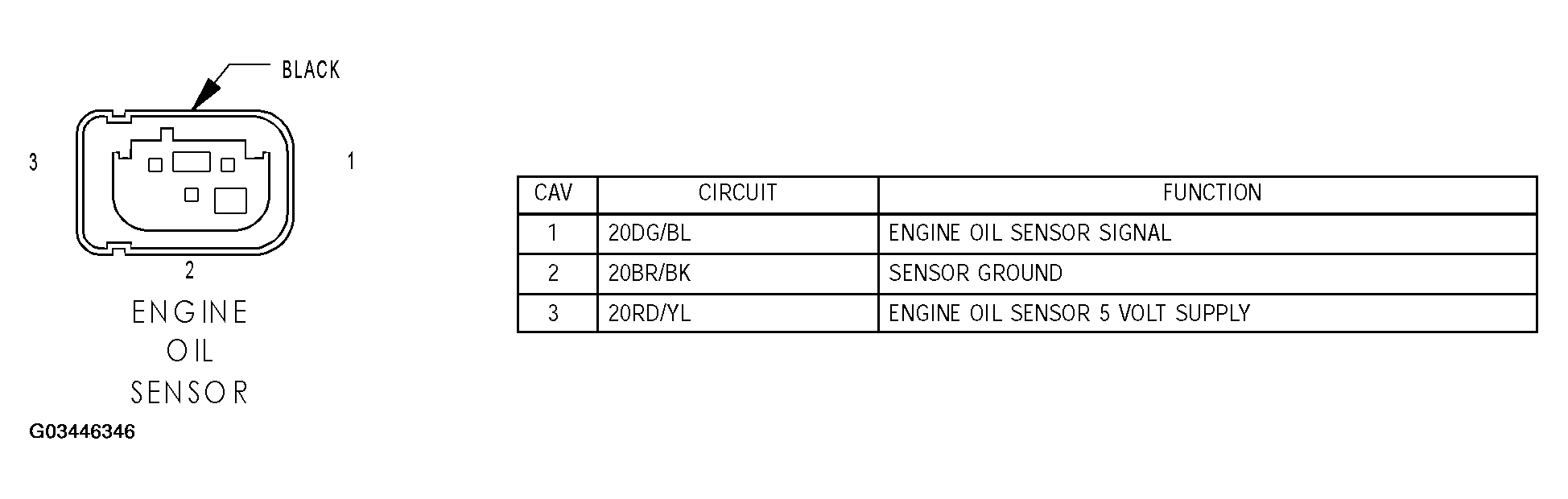

ENGINE OIL SENSOR - BLACK

Fig 16: Identifying Engine Oil Sensor - Black Connector

G03446346

Courtesy of DAIMLERCHRYSLER CORP.

FUEL INJECTOR NO. 1 - BLACK

Fig 17: Identifying Fuel Injector No. 1 - Black Connector

G03446347

Courtesy of DAIMLERCHRYSLER CORP.

FUEL INJECTOR NO. 2 - BLACK

Fig 18: Identifying Fuel Injector No. 2 - Black Connector

G03446348

Courtesy of DAIMLERCHRYSLER CORP.

FUEL INJECTOR NO. 3 - BLACK

Fig 19: Identifying Fuel Injector No. 3 - Black Connector

G03446349

Courtesy of DAIMLERCHRYSLER CORP.

FUEL INJECTOR NO. 4 - BLACK

Fig 20: Identifying Fuel Injector No. 4 - Black Connector

G03446350

Courtesy of DAIMLERCHRYSLER CORP.

FUEL INJECTOR NO. 5 - BLACK

Fig 21: Identifying Fuel Injector No. 5 - Black Connector

G03446351

Courtesy of DAIMLERCHRYSLER CORP.

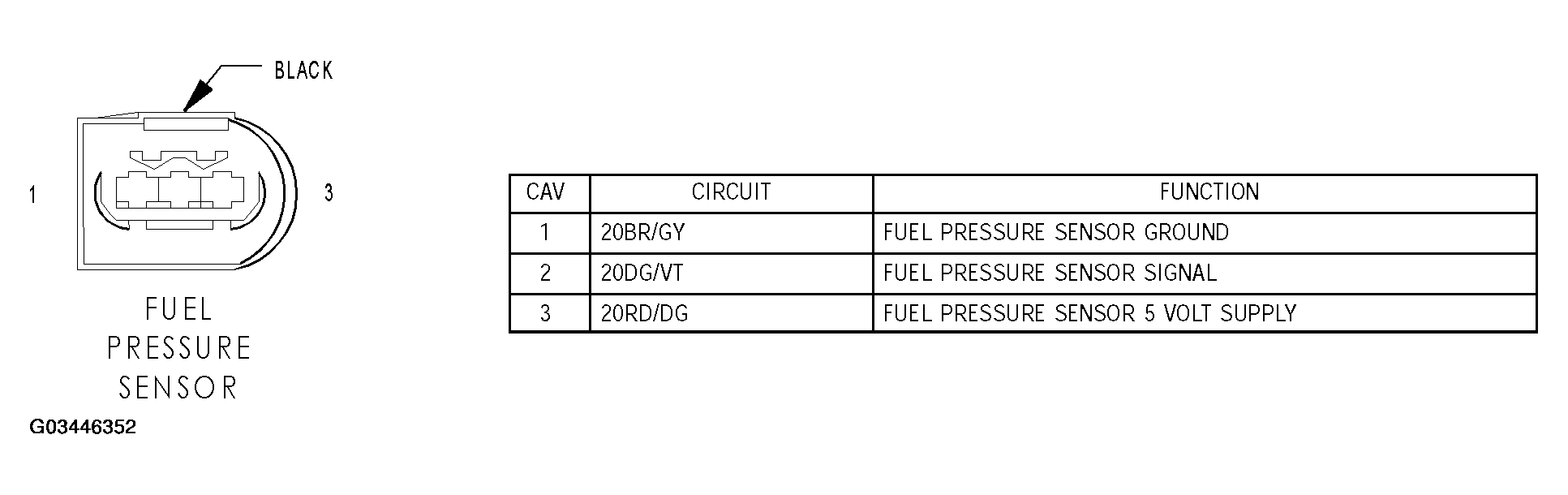

FUEL PRESSURE SENSOR - BLACK

Fig 22: Identifying Fuel Pressure Sensor - Black Connector

G03446352

Courtesy of DAIMLERCHRYSLER CORP.

FUEL PRESSURE SOLENOID

Fig 23: Identifying Fuel Pressure Solenoid Connector

G03446353

Courtesy of DAIMLERCHRYSLER CORP.

FUEL SHUTDOWN SOLENOID

Fig 24: Identifying Fuel Shutdown Solenoid Connector

G03446354

Courtesy of DAIMLERCHRYSLER CORP.

FUEL TEMPERATURE SENSOR

Fig 25: Identifying Fuel Temperature Sensor Connector

G03446355

Courtesy of DAIMLERCHRYSLER CORP.

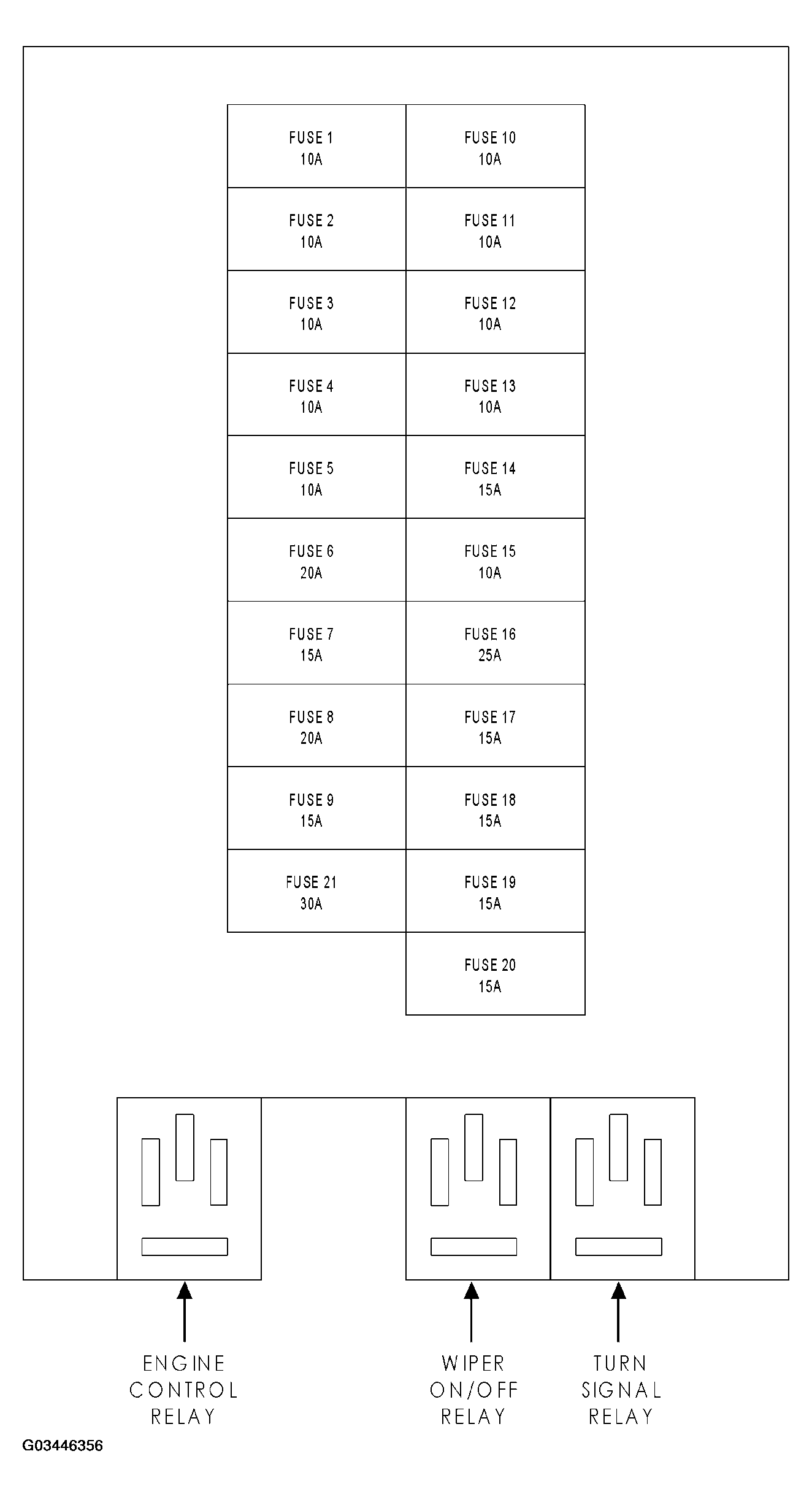

FUSE BLOCK NO. 1

Fig 26: Identifying Fuse Block No. 1

G03446356

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: THE FUSE AND RELAY LOCATIONS SHOWN HERE MAY VARY FROM VEHICLE TO VEHICLE

ENGINE CONTROL RELAY (FUSE BLOCK NO. 1)

Fig 27: Identifying Engine Control Relay Connector (Fuse Block No. 1)

G03446357

Courtesy of DAIMLERCHRYSLER CORP.

FUSE/ RELAY BLOCK

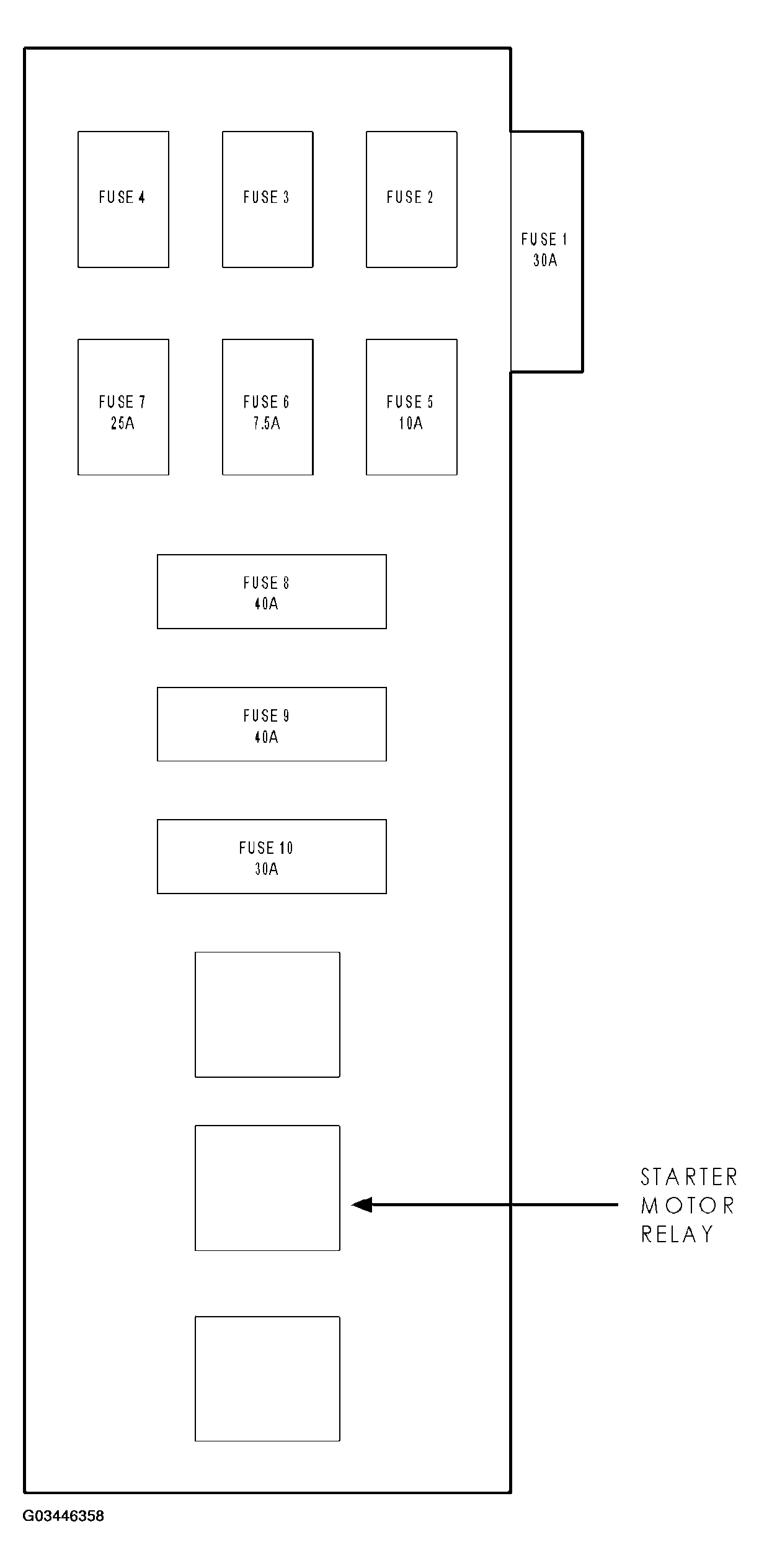

Fig 28: Identifying Fuse/ Relay Block

G03446358

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: THE FUSE AND RELAY LOCATIONS SHOWN HERE MAY VARY FROM VEHICLE TO VEHICLE

STARTER MOTOR RELAY (FUSE/RELAY BLOCK)

Fig 29: Identifying Starter Motor Relay Connector (Fuse/Relay Block)

G03446359

Courtesy of DAIMLERCHRYSLER CORP.

GLOW PLUG CONTROL MODULE C1 - BLACK

Fig 30: Identifying Glow Plug Control Module C1 - Black Connector

G03446360

Courtesy of DAIMLERCHRYSLER CORP.

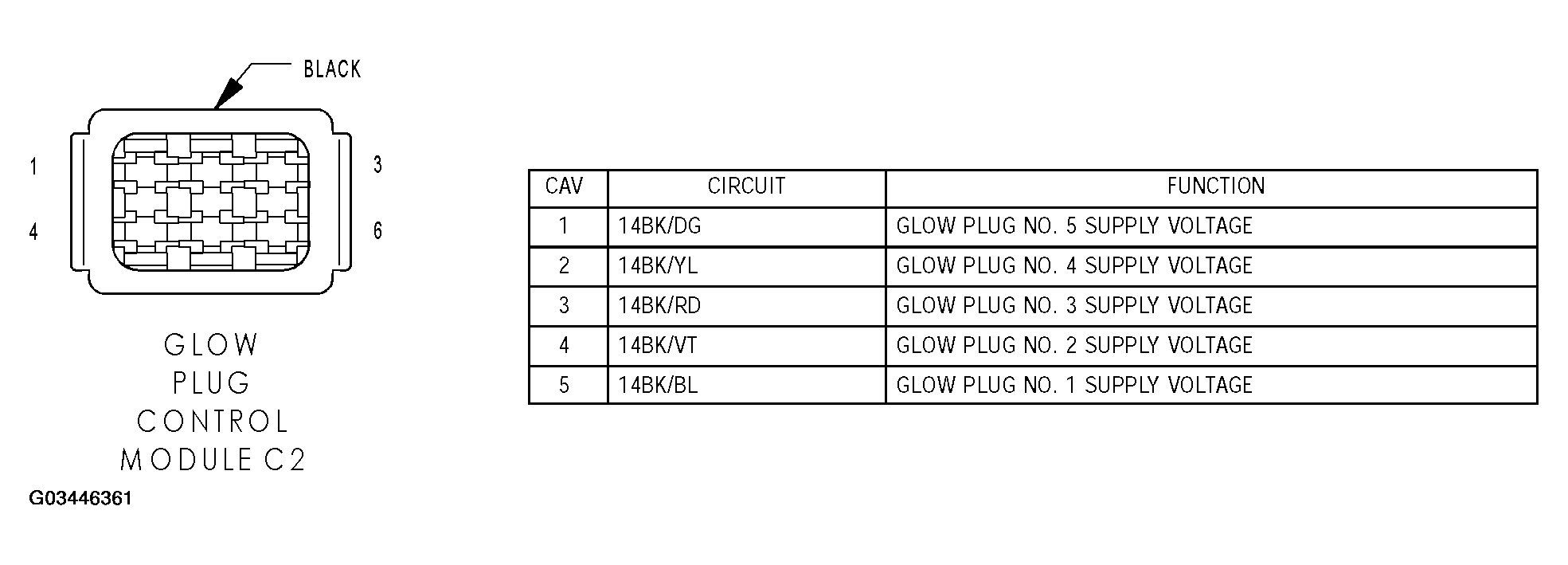

GLOW PLUG CONTROL MODULE C2 - BLACK

Fig 31: Identifying Glow Plug Control Module C2 - Black Connector

G03446361

Courtesy of DAIMLERCHRYSLER CORP.

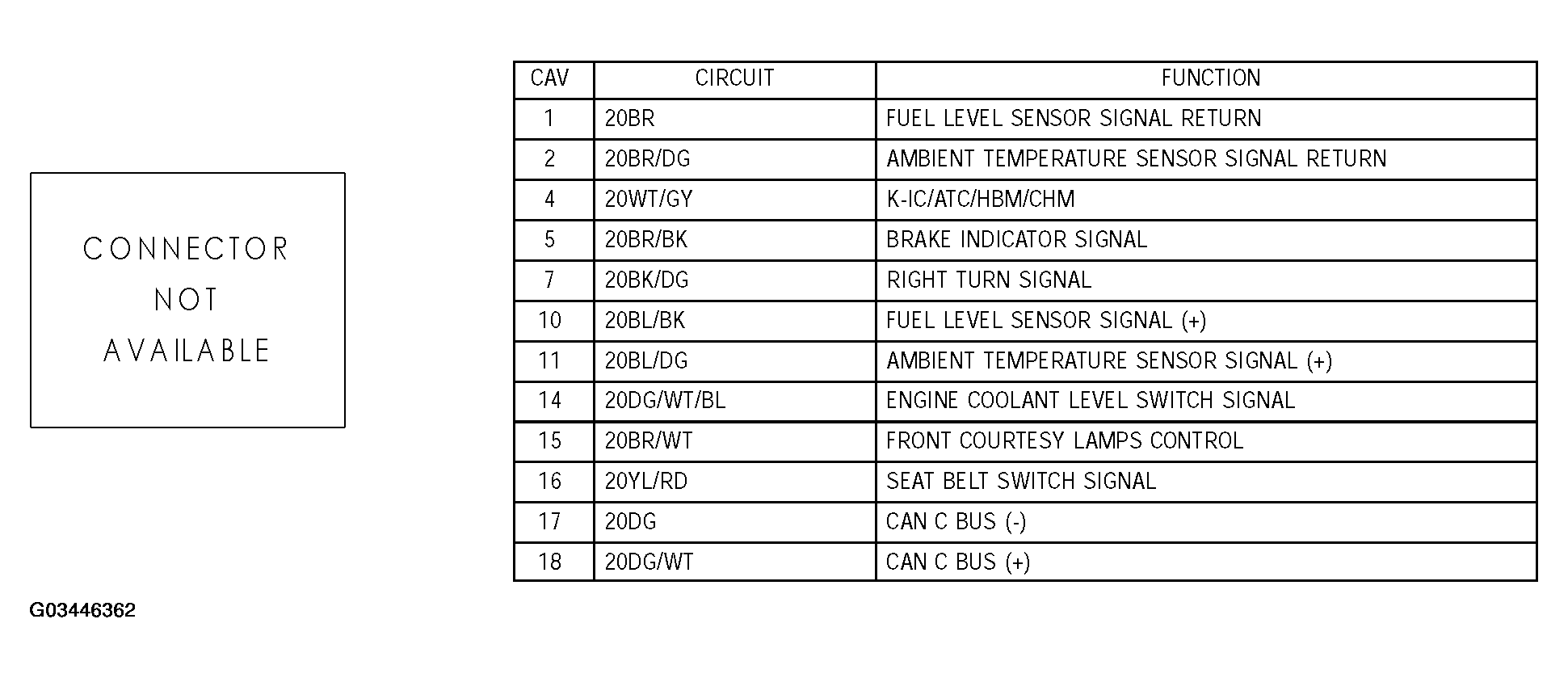

INSTRUMENT CLUSTER C1

Fig 32: Identifying Instrument Cluster C1 Connector

G03446362

Courtesy of DAIMLERCHRYSLER CORP.

INTAKE AIR TEMPERATURE SENSOR - BLACK

Fig 33: Identifying Intake Air Temperature Sensor - Black Connector

G03446363

Courtesy of DAIMLERCHRYSLER CORP.

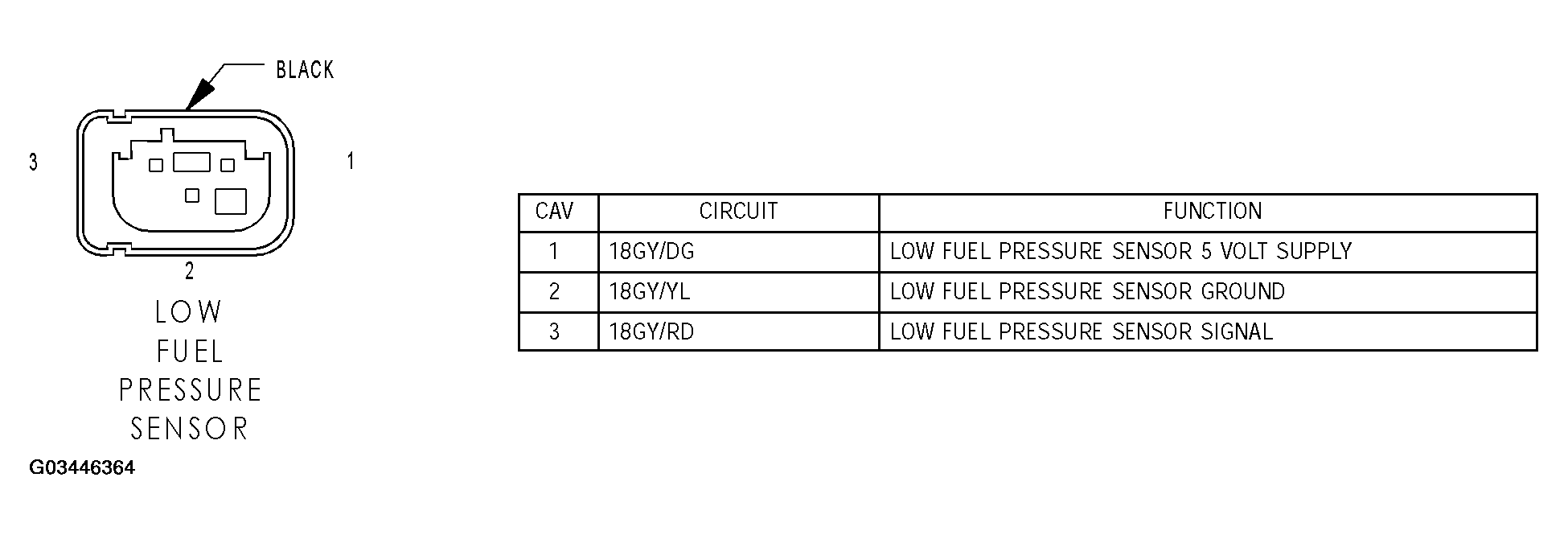

LOW FUEL PRESSURE SENSOR - BLACK

Fig 34: Identifying Low Fuel Pressure Sensor - Black Connector

G03446364

Courtesy of DAIMLERCHRYSLER CORP.

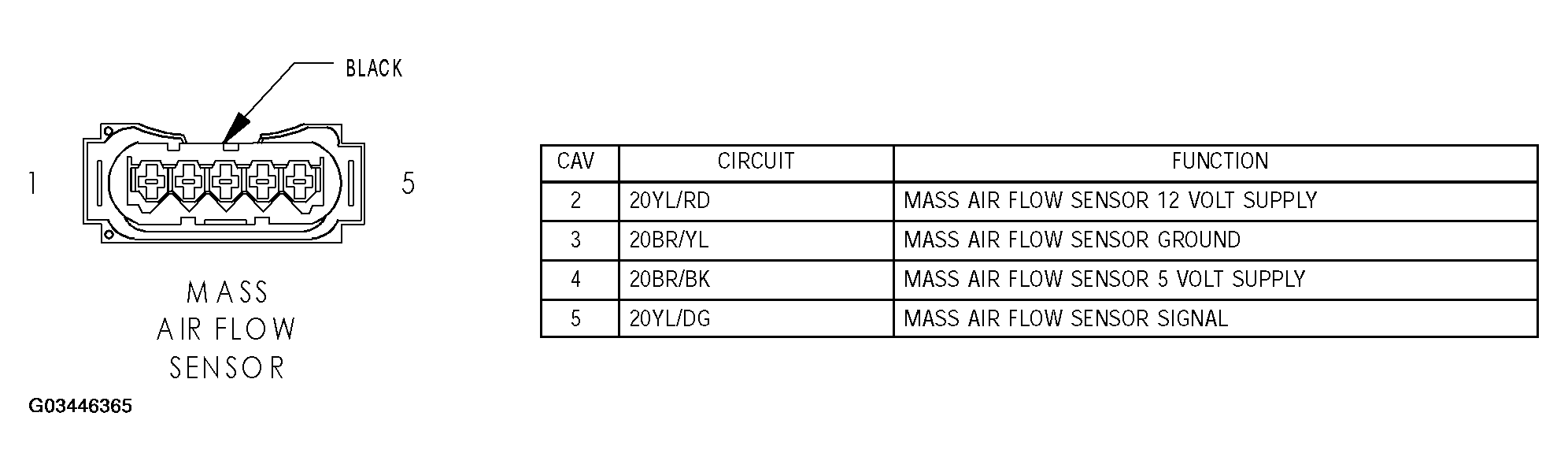

MASS AIR FLOW SENSOR - BLACK

Fig 35: Identifying Mass Air Flow Sensor - Black Connector

G03446365

Courtesy of DAIMLERCHRYSLER CORP.

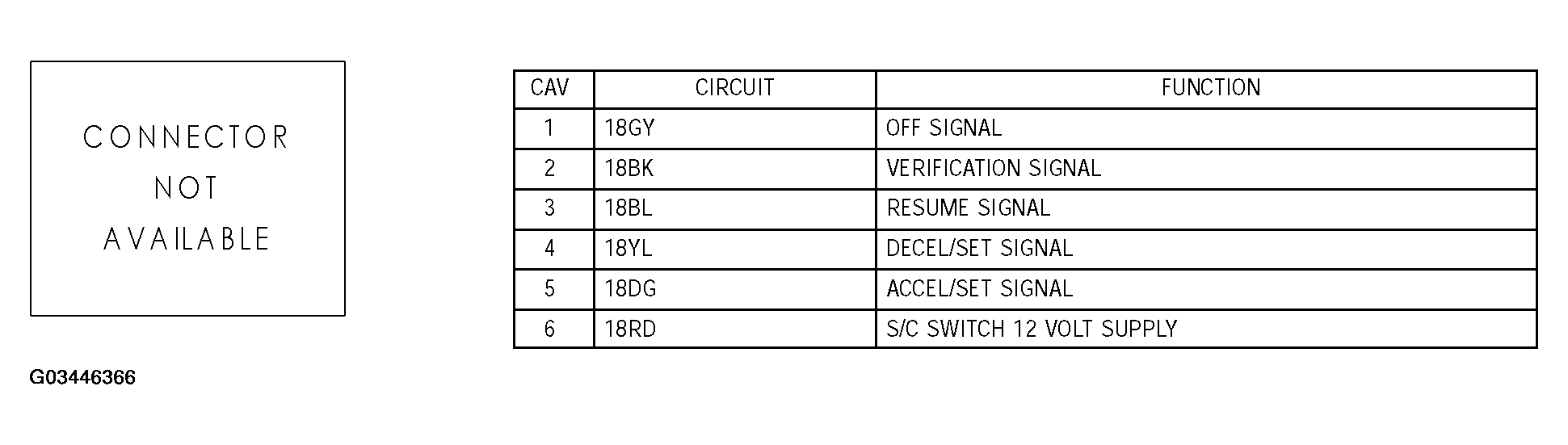

SPEED CONTROL SWITCH

Fig 36: Identifying Speed Control Switch Connector

G03446366

Courtesy of DAIMLERCHRYSLER CORP.
