Component Locations: Sensors

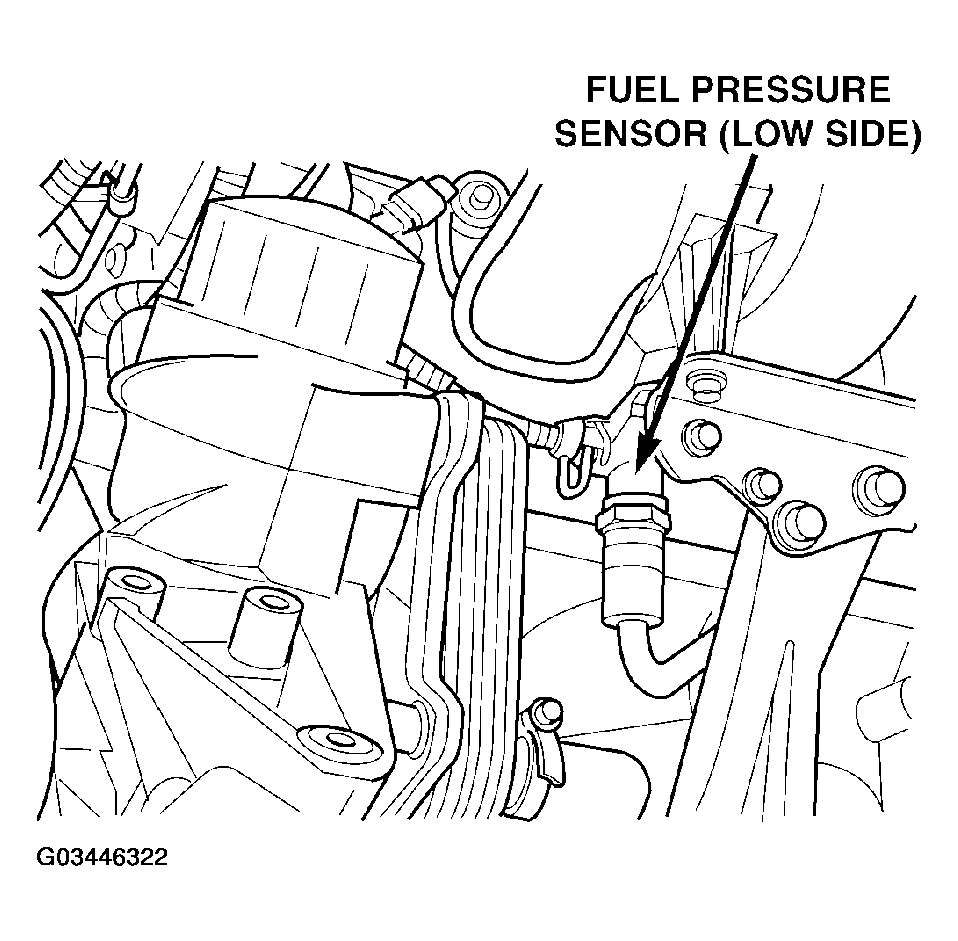

Fig 1: Identifying Fuel Pressure Sensor (Low Side)

Courtesy of DAIMLERCHRYSLER CORP.

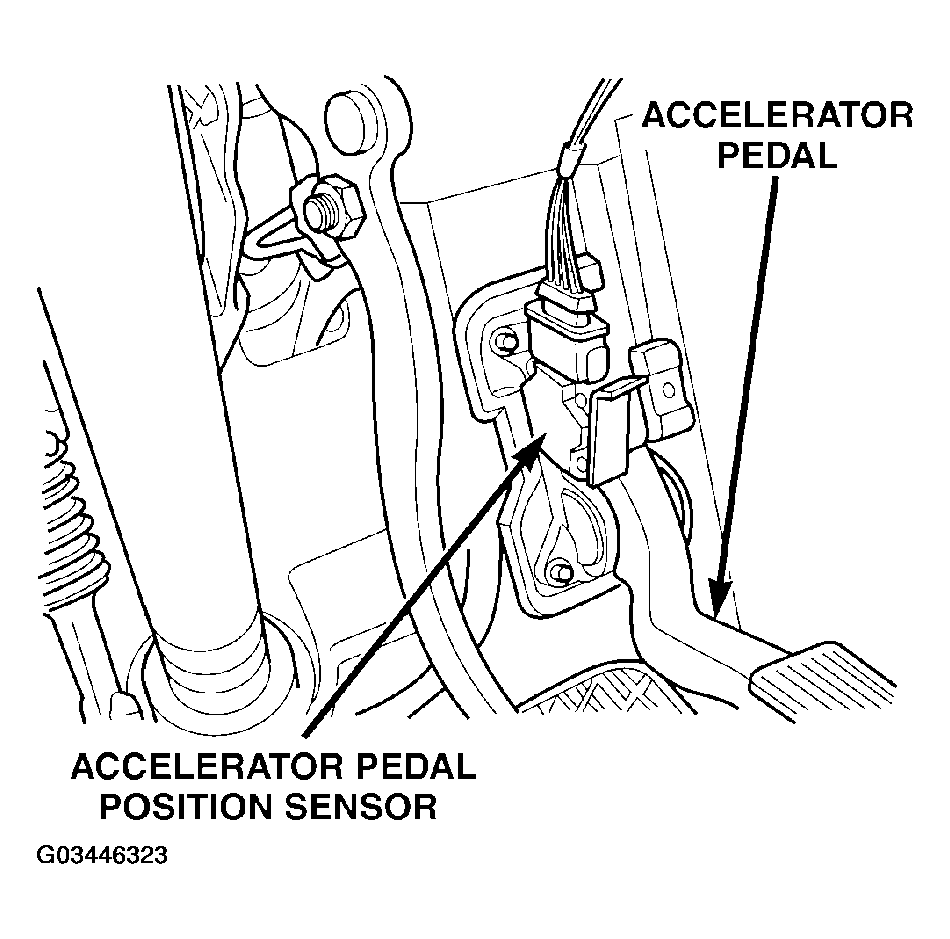

Fig 2: Identifying Accelerator Pedal

Courtesy of DAIMLERCHRYSLER CORP.

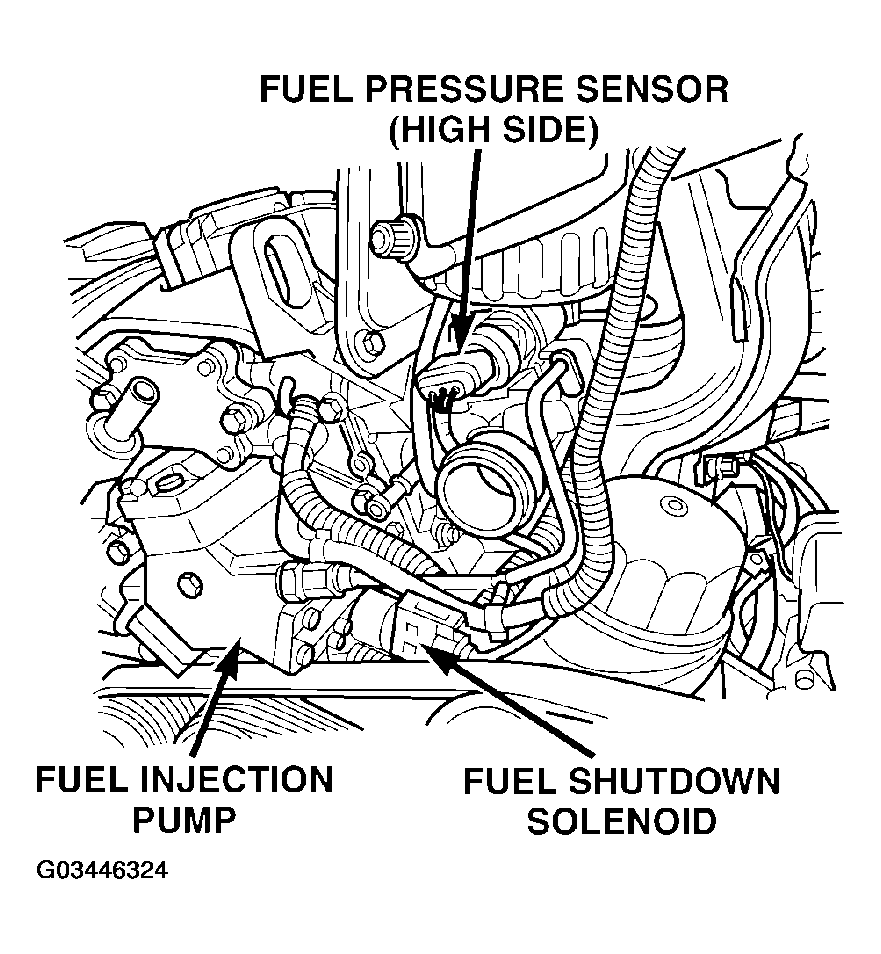

Fig 3: Identifying Fuel Pressure Sensor (High Side)

Courtesy of DAIMLERCHRYSLER CORP.

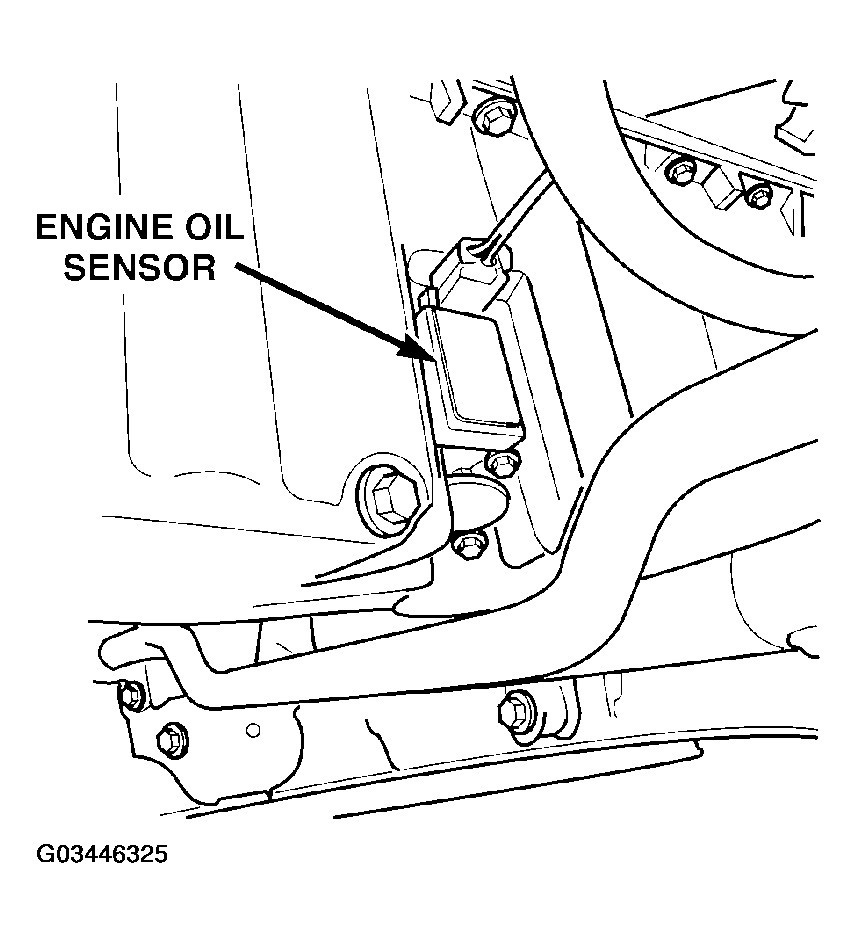

Fig 4: Identifying Engine Oil Sensor

Courtesy of DAIMLERCHRYSLER CORP.

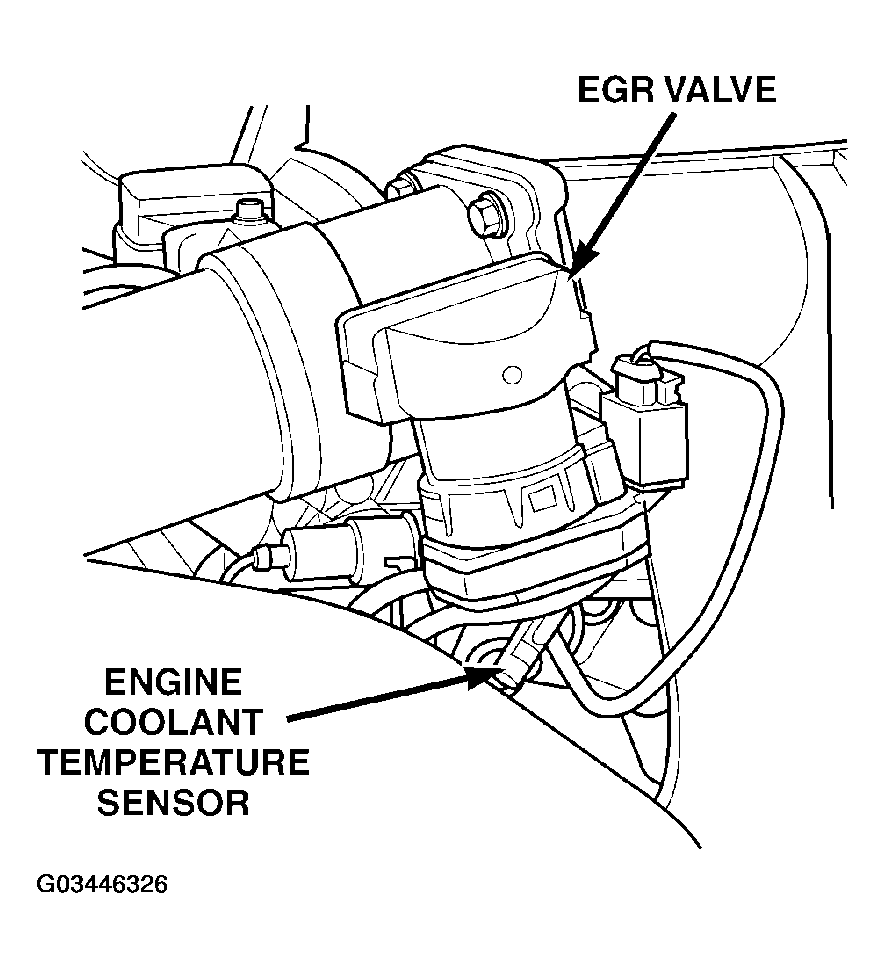

Fig 5: Identifying EGR Valve

Courtesy of DAIMLERCHRYSLER CORP.

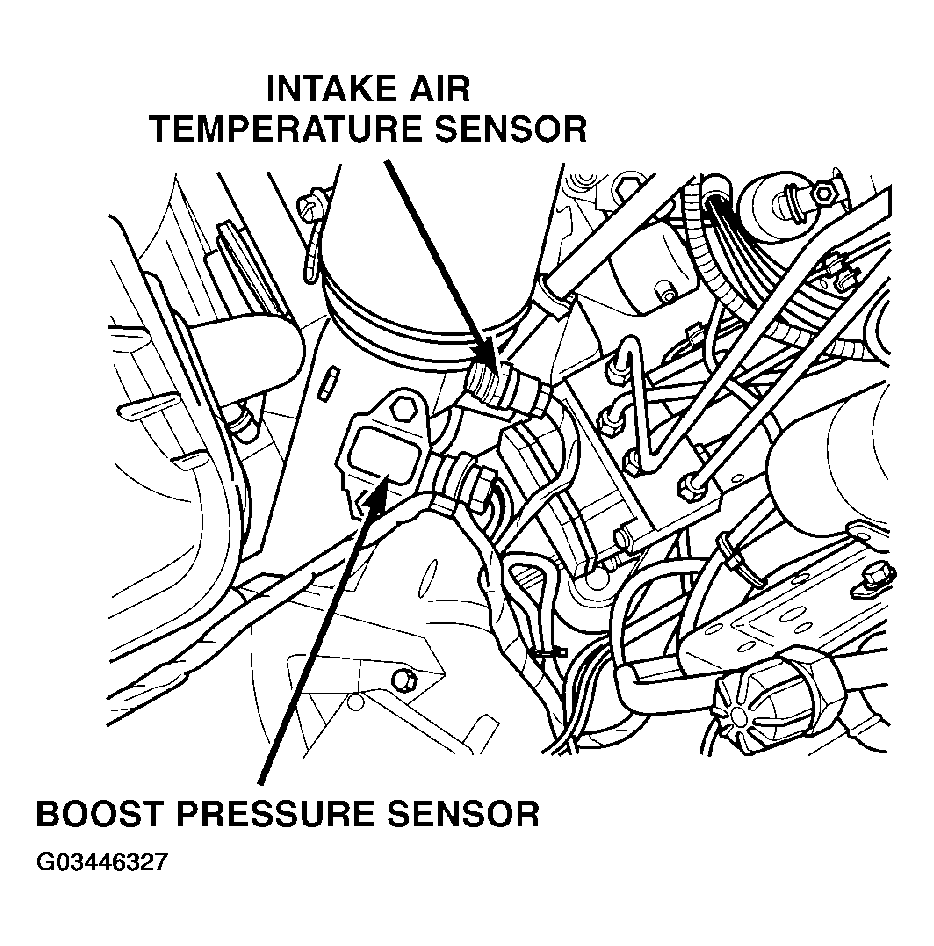

Fig 6: Identifying Boost Pressure Sensor

Courtesy of DAIMLERCHRYSLER CORP.

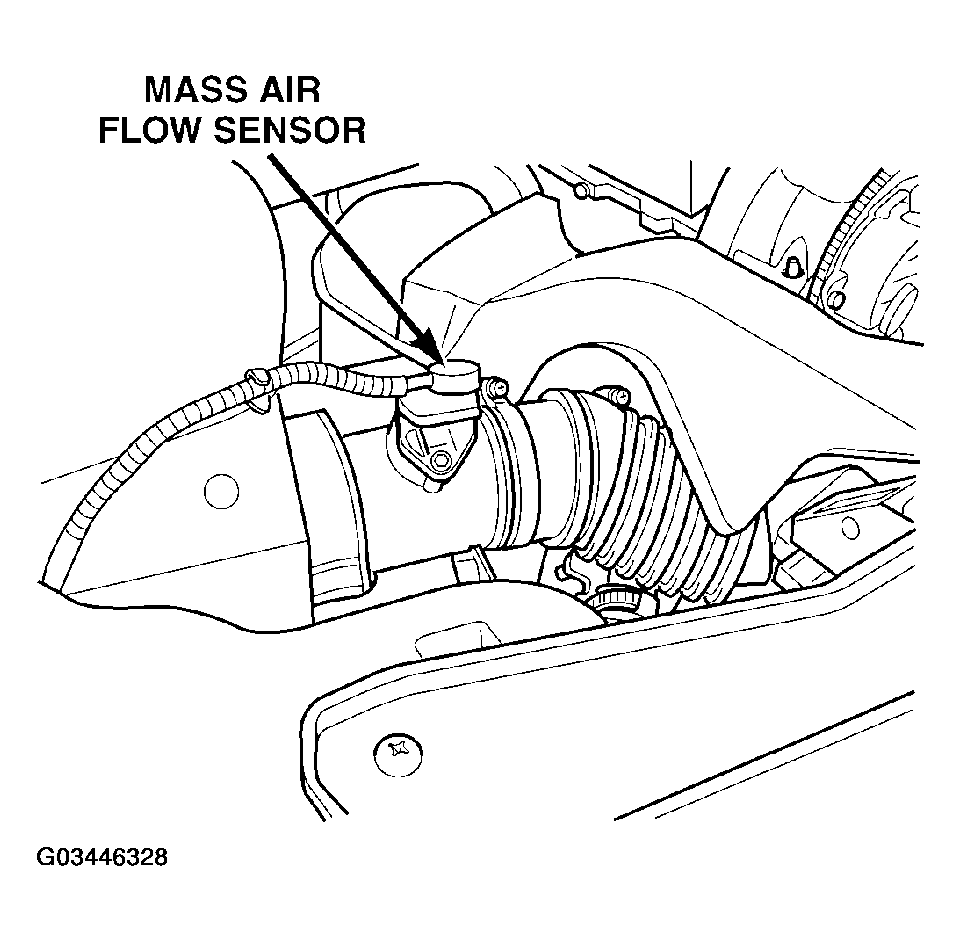

Fig 7: Identifying Mass Air Flow Sensor

Courtesy of DAIMLERCHRYSLER CORP.
